Radio Receiver: Installation

INSTALL RADIO RECEIVER
1. Install the No.2 radio bracket with the 3 bolts.

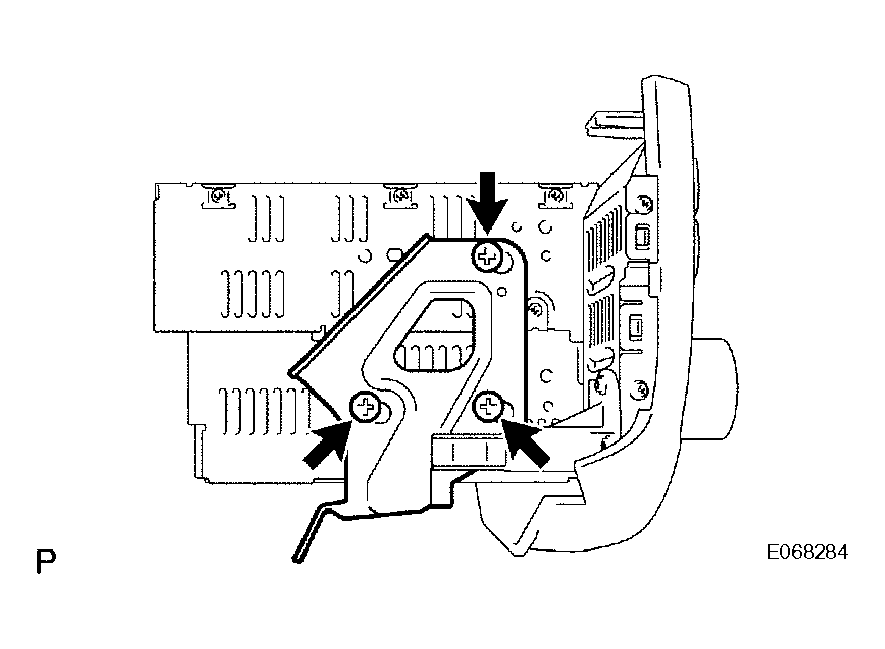

  Fig 1: Identifying No.2 Radio Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 1 radio bracket with the 3 bolts.

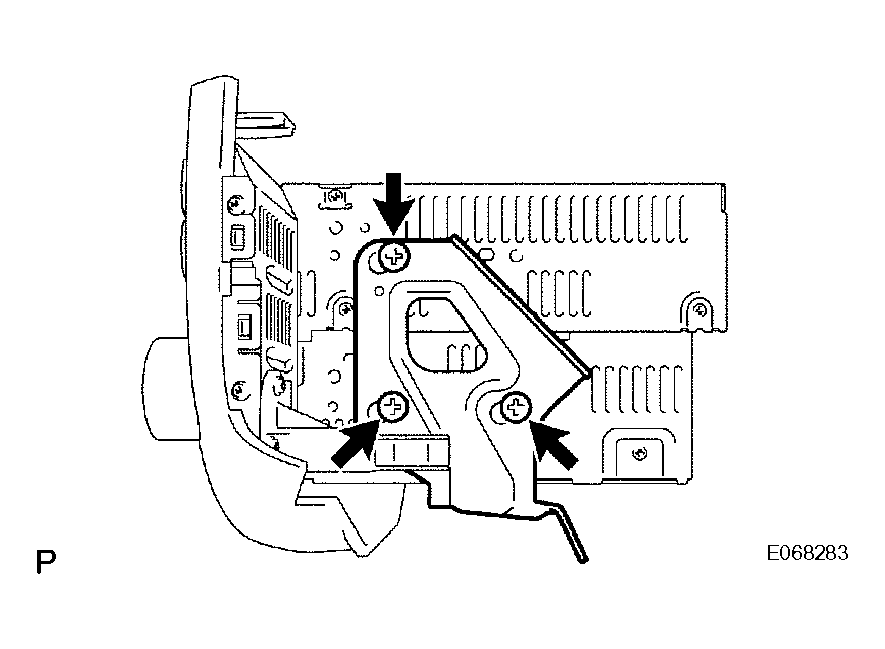

  Fig 2: Identifying No.1 Radio Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connectors.
4. Engage the 2 claws and the 2 clips.
5. Install the radio receiver with bracket with the 4 bolts.

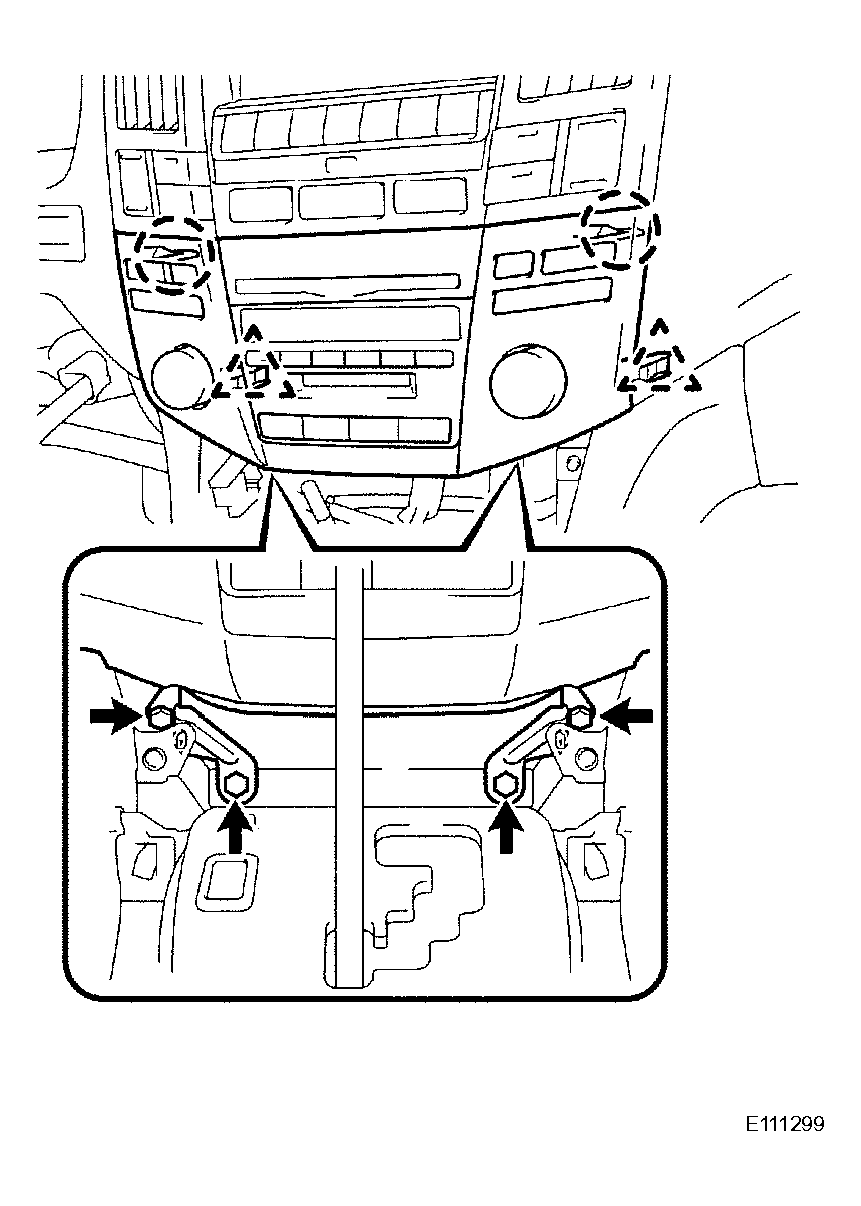

  Fig 3: Identifying Radio Receiver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH PANEL LOWER (See INSTALLATION )
INSTALL CONSOLE PANEL UPPER FRONT (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from negative battery terminal. (See INITIALIZATION )
