Automatic Transaxle Assembly: Removal

HINT:

(See REMOVAL )

HINT:

(See REMOVAL )

HINT:

(See REMOVAL )

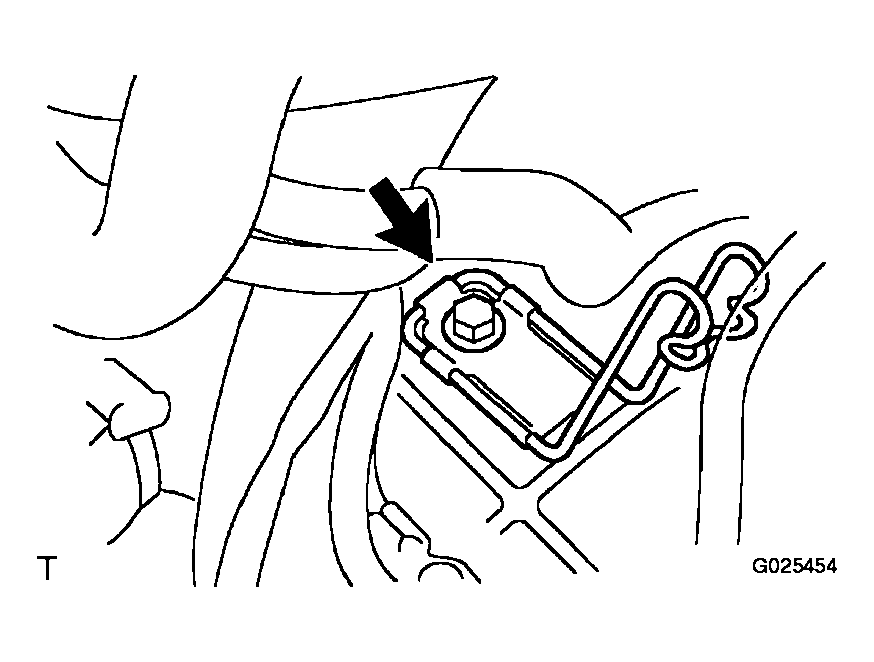

1. Remove the bolt and the transmission control cable bracket No.2.

Fig 1: Removing Transmission Control Cable Bracket No.2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

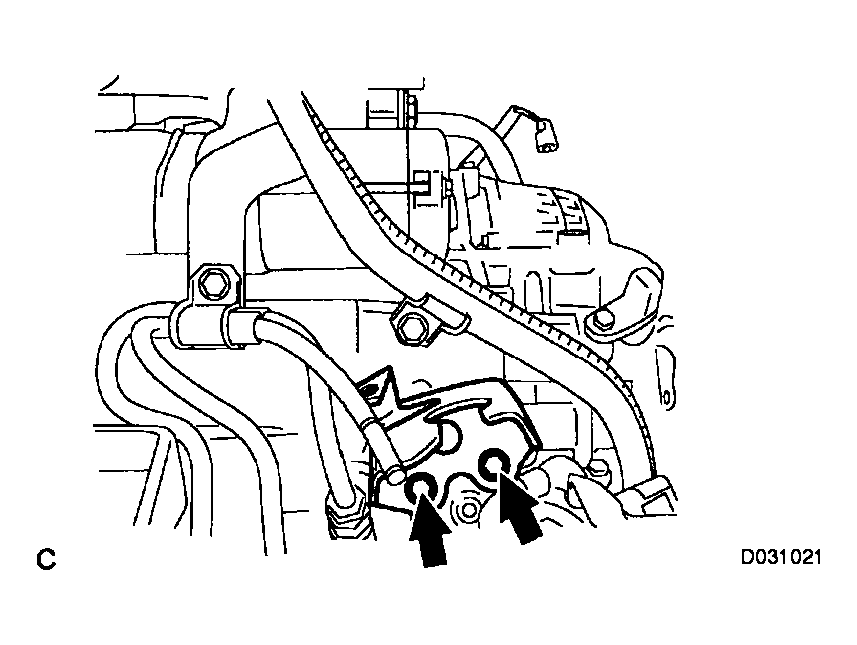

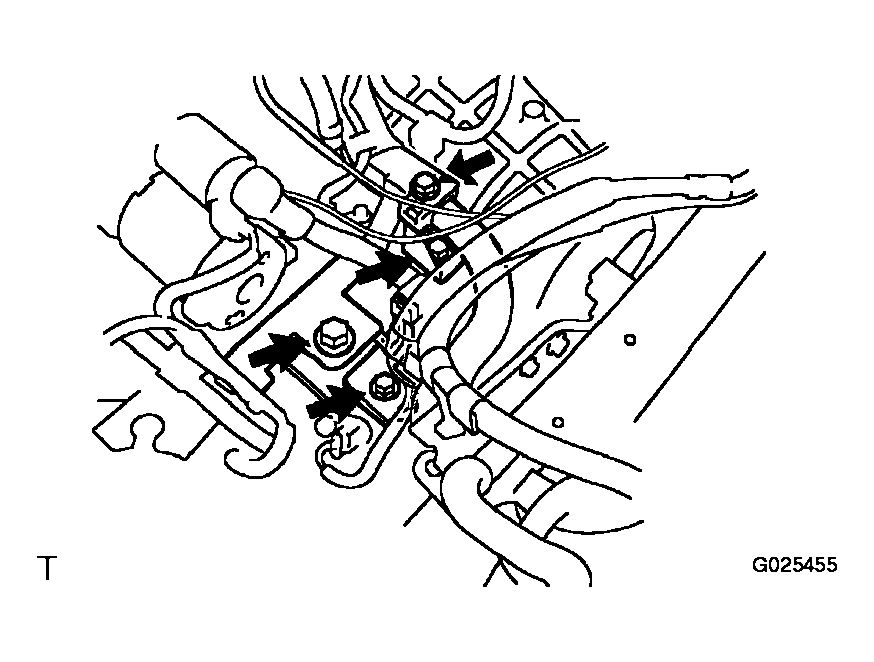

1. Disconnect the wire harnesses from the clamp.
2. Remove the 4 bolts and 4 clamps.

Fig 2: Removing Wire Harness Clamp

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

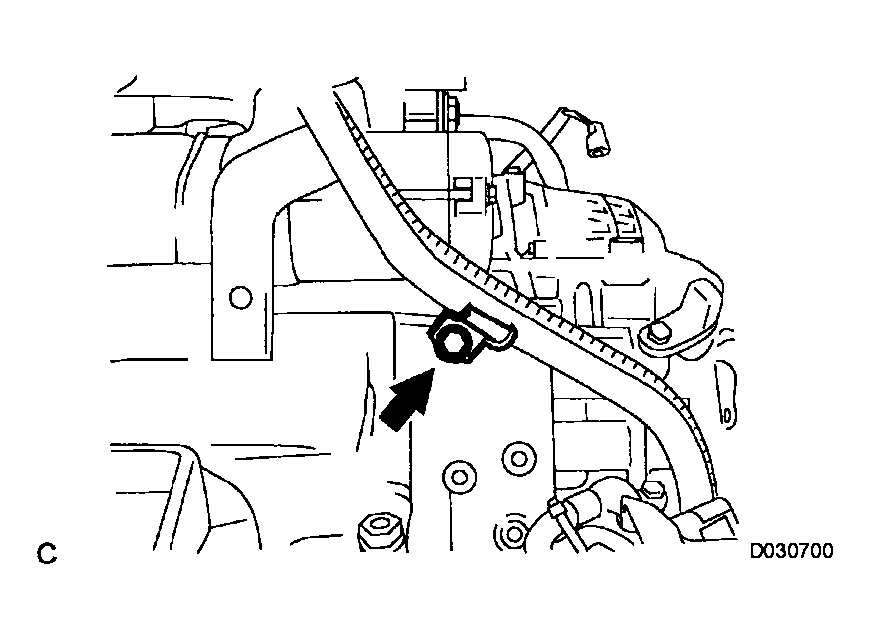

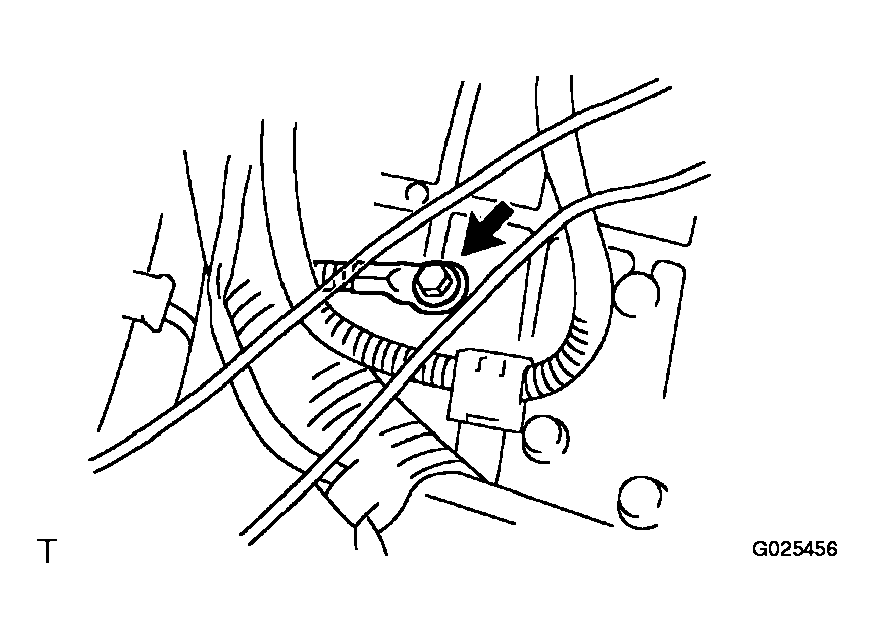

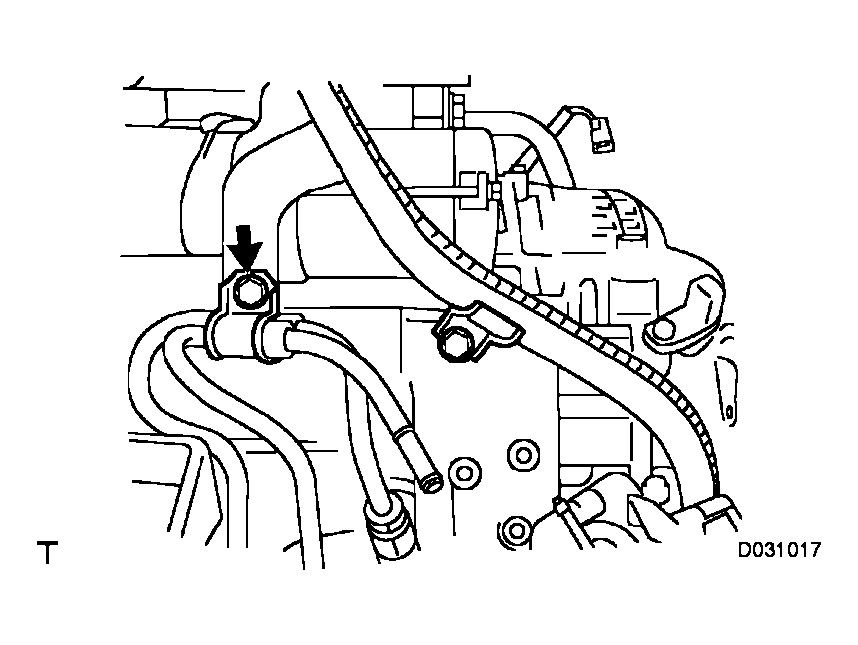

1. Remove the bolt and disconnect the wire harness.

Fig 3: Disconnecting Wire Harness

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

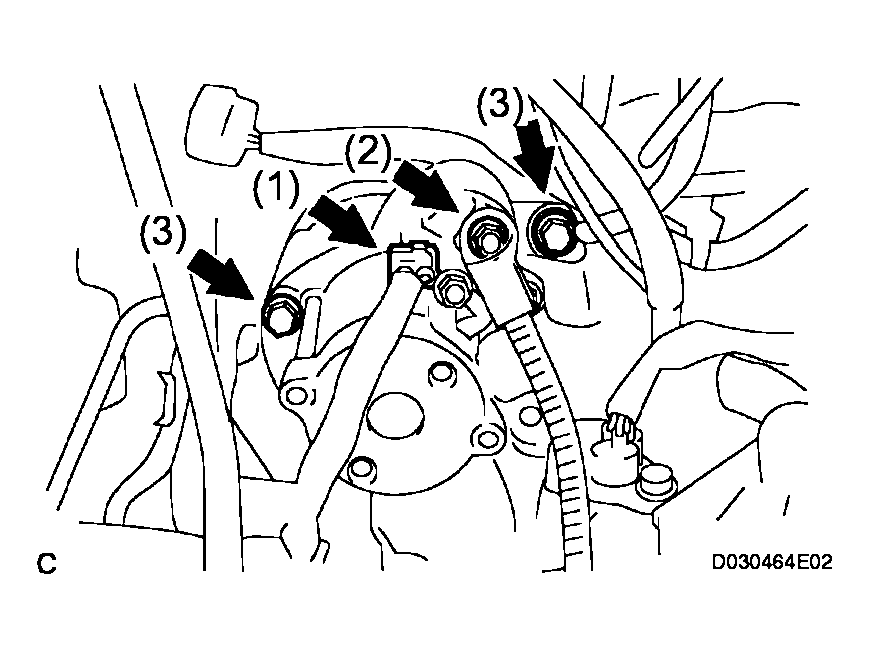

1. Disconnect the connector (1).
2. Remove the nut (2) and disconnect the starter wire.
3. Remove the 2 bolts (3) and starter assembly.

Fig 4: Removing Starter Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

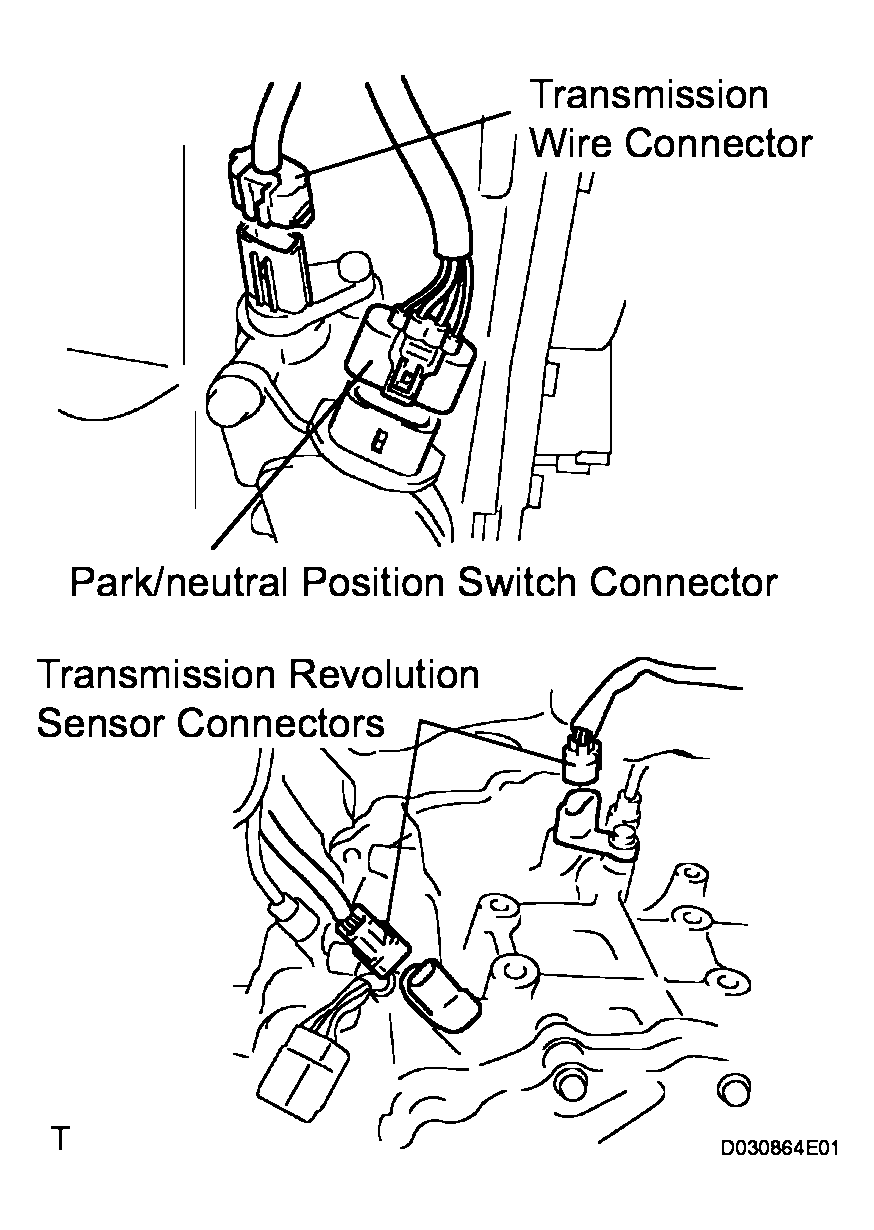

1. Disconnect the transmission wire connector.
2. Disconnect the park/neutral position switch connector.
3. Disconnect the 2 transmission revolution sensor connectors.

Fig 5: Disconnecting Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts and transmission control cable bracket No. 1.

Fig 6: Removing Transmission Oil Filler Tube Subassembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the ATF level gauge.
2. Disconnect the 2 clamps form the oil filter tube subassembly.
3. Remove the bolt and oil cooler tube clamp.
   Fig 7: Removing Bolt And Oil Cooler Tube Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and transmission oil filter tube subassembly.
5. Remove the O-ring from the oil filter tube subassembly.

Fig 8: Removing Bolt And Transmission Oil Filter Tube Subassembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

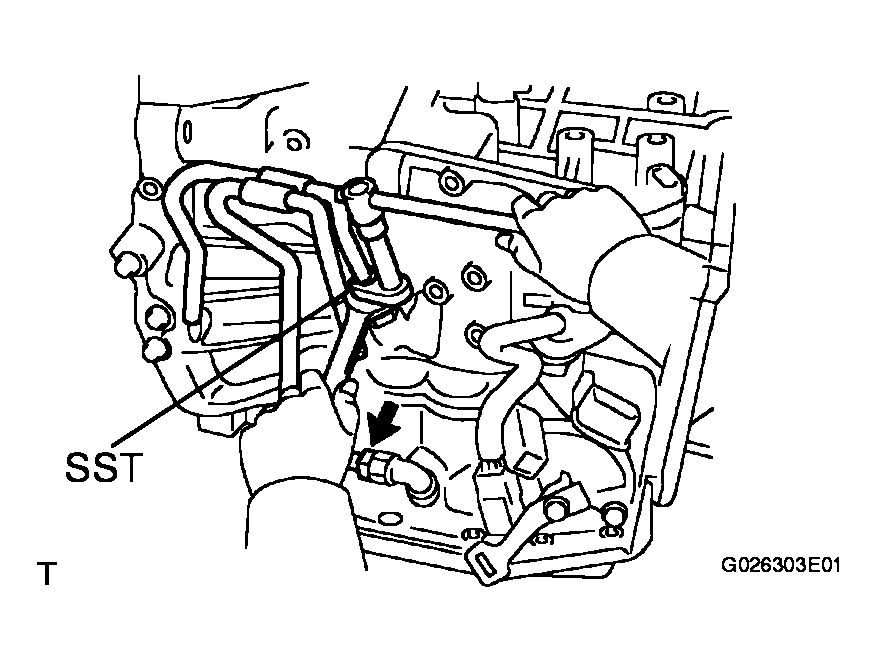

1. Using SST and a wrench, disconnect the oil cooler inlet tube No. 1.

SST 09023-12701

1. Using SST and a wrench, disconnect the oil cooler outlet tube No. 1.

SST 09023-12701

Fig 9: Disconnecting Oil Cooler Outlet Tube No. 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 bolts and engine mounting bracket front.

Fig 10: Removing Bolts And Engine Mounting Bracket Front

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

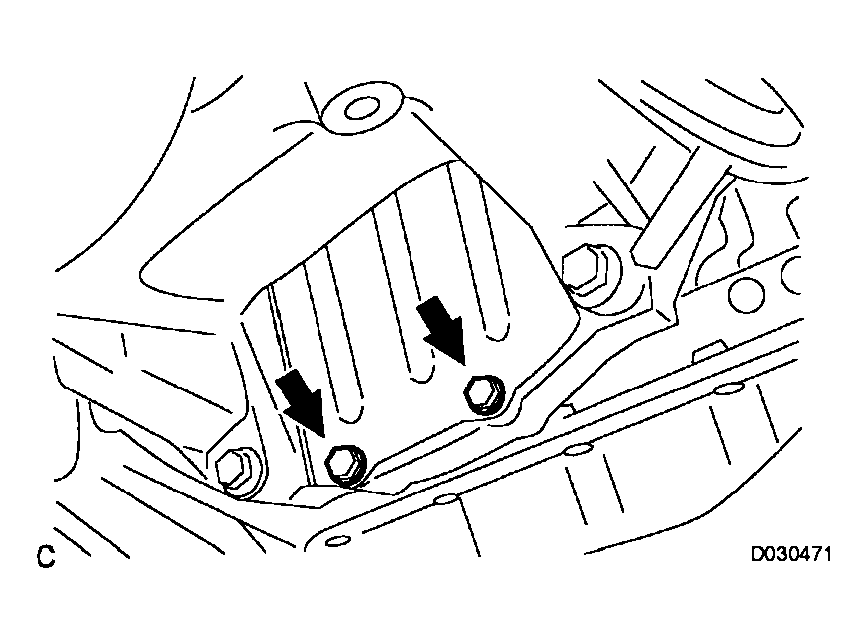

1. Remove the 2 bolts and flywheel housing under cover.
   Fig 11: Removing Bolts And Flywheel Housing Under Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

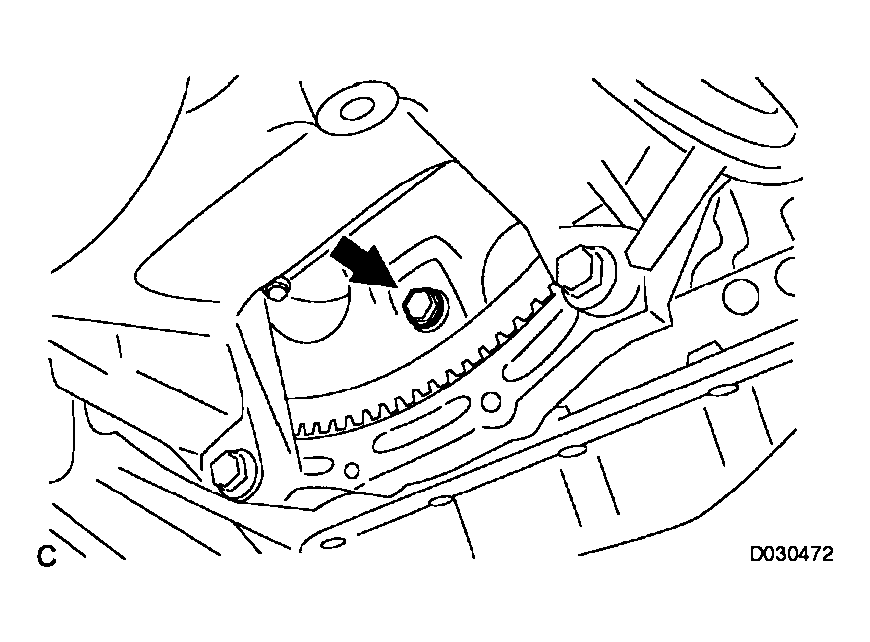

2. Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.

   HINT:

   There will be one green colored bolt.

   Fig 12: Removing Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

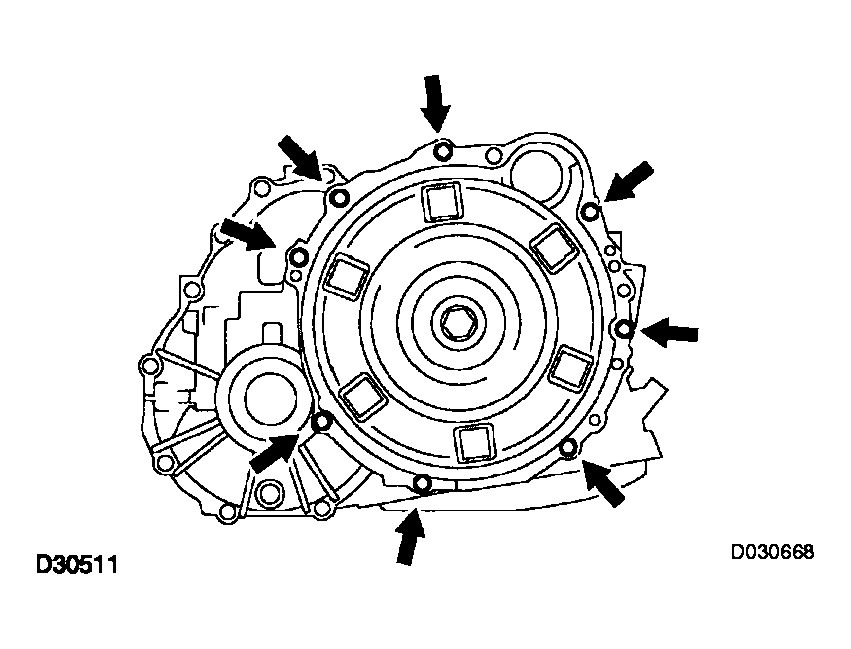

3. Remove the 8 bolts.
4. Separate and remove the automatic transaxle.

Fig 13: Removing Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

(See INSPECTION  )
