Front Seat Outer Belt Assembly With PRETENSIONER: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working (See PRECAUTION ).
  2. REMOVE FRONT DOOR SCUFF PLATE (See  REMOVAL  )
  3. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP
  4. REMOVE REAR DOOR SCUFF PLATE (See  REMOVAL  )
  5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
  6. REMOVE LAP BELT OUTER ANCHOR COVER
    1. Disengage the 2 claws and remove the lap belt outer anchor cover.
  7. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
    1. Remove the bolt and disconnect the floor side of the front seat outer belt assembly.
  8. REMOVE CENTER PILLAR GARNISH LOWER (See  REMOVAL  )
    Fig 1: Disengaging Claws
    G04091838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE CENTER PILLAR GARNISH (See  REMOVAL  )
  10. REMOVE FRONT SEAT OUTER BELT ASSEMBLY
    1. Turn the ignition switch to the Lock position.
    2. Remove the nut and disengage the shoulder side of the front seat outer belt assembly.
    3. Using a screwdriver, pull out the locking button in the direction shown by the arrow to release the lock, and disconnect the pretensioner connector.

      HINT:

      Tape the screwdriver tip before use.

    4. Disconnect the tension reducer connector.

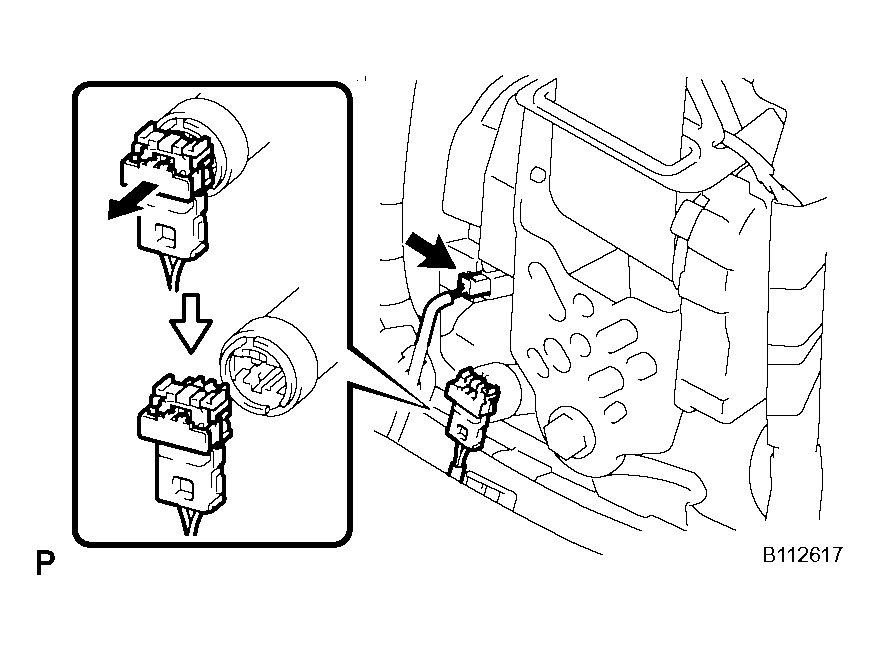

      Fig 2: Disconnecting Tension Reducer Connector
      G04091839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts and front seat outer belt assembly.

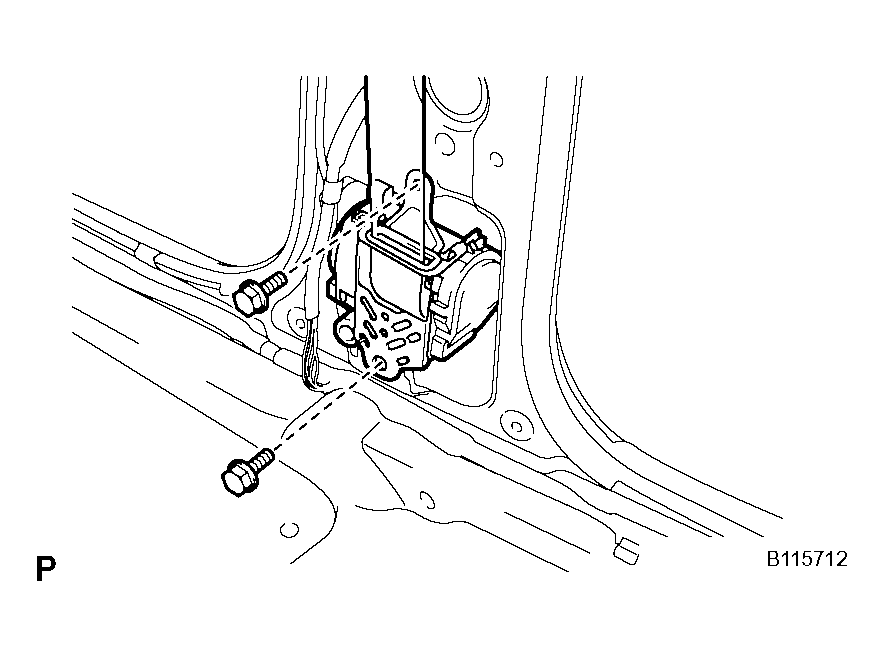

    Fig 3: Removing Bolts And Front Seat Outer Belt Assembly
    G04091840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
