Driver Side Knee Airbag Assembly: Removal

  1. PRECAUTION
    CAUTION: Be sure to read the "Precaution" thoroughly before servicing (See PRECAUTION ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  3. REMOVE INSTRUMENT PANEL FINISH PANEL SUBASSEMBLY LOWER (See  REMOVAL  )
  4. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Disconnect the connector from the driver side knee airbag assembly.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Remove the 4 bolts and the driver side knee airbag assembly.

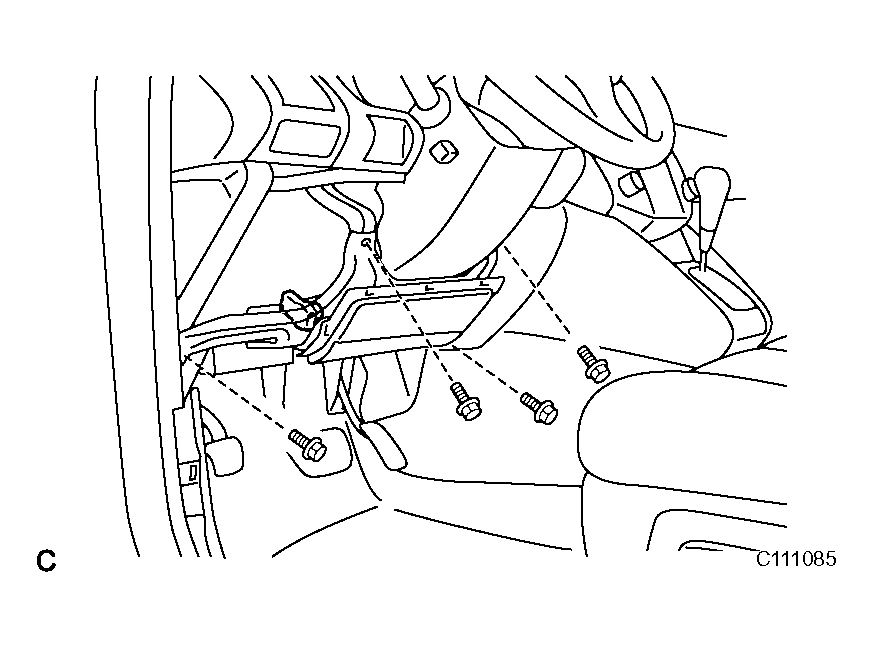

    Fig 1: Removing Bolts And Driver Side Knee Airbag Assembly
    G04091733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
