Drive Belt: Installation

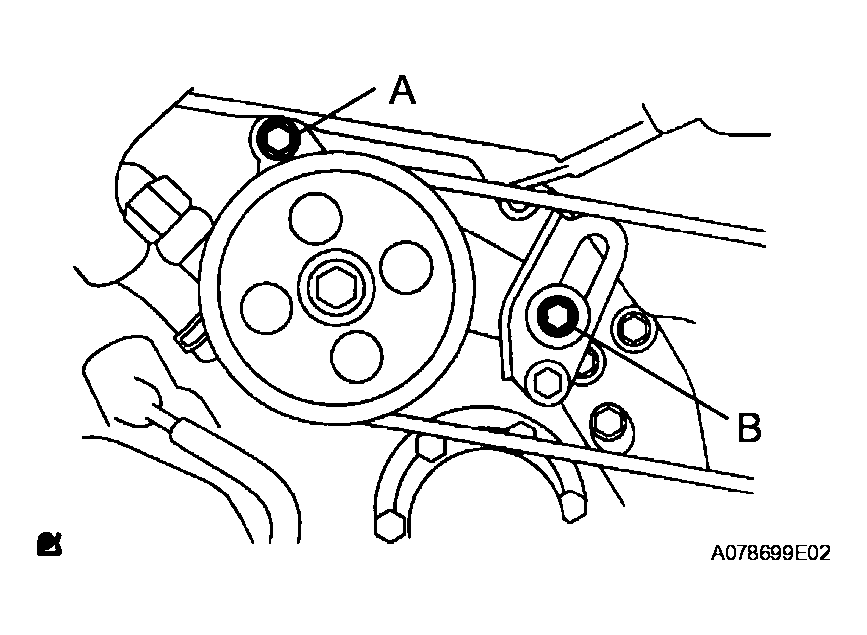

1. INSTALL VANE PUMP V-BELT
   1. Install the V-ribbed on each pulley.
   2. Using a bar, adjust the V-ribbed belt tension and tighten bolt B.

      Torque: 43 N*m (439 kgf*cm, 32 ft.*lbf)

   3. Tighten bolt A.

   Torque: 43 N*m (439 kgf*cm, 32 ft.*lbf)

   Fig 1: Installing Vane Pump V-Belt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

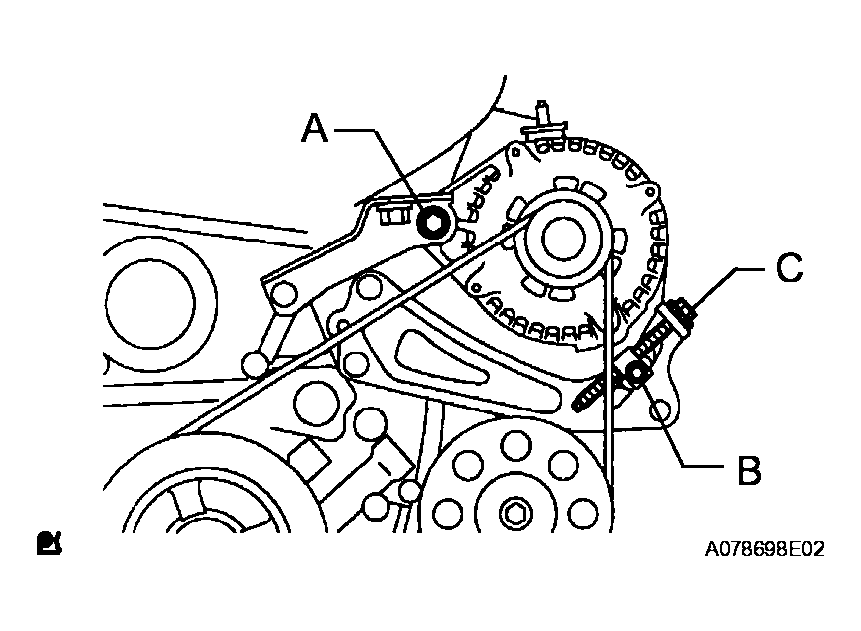

2. INSTALL V-(COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1
   1. Install the V-ribbed belt on each pulley.
   2. Tighten the adjusting bolt C, and adjust the V-ribbed belt tension.
   3. First tighten bolt A, then tighten bolt B.

   Torque: Bolt A

   58 N*m (591 kgf*cm, 43 ft.*lbf)

   Bolt B

   18 N*m (184 kgf*cm, 13 ft.*lbf)

   Fig 2: Installing V-Ribbed Belt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSPECT DRIVE BELT DEFLECTION AND TENSION
   1. Inspect the drive belt deflection and tension (reference) (See DRIVE BELT  ).
4. INSTALL ENGINE UNDER COVER NO. 1
5. INSTALL ENGINE UNDER COVER ASSEMBLY
   1. w/ engine under cover assembly
6. INSTALL FRONT WHEEL RH

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
