Cylinder Head, Intake Manifold, Exhaust Manifold: Inspection

Check the belt for any defects, as shown in the illustrations.

Also, check these points below.

1. If there is premature parting :
   • Check for proper installation.
   • Check the timing cover gasket for damage and proper installation.
2. If the belt teeth are cracked or damaged, check to see if either camshaft is locked.
3. If there is noticeable wear or cracks on the belt face, check to see if there are nicks on the side of the idler pulley lock and water pump.
4. If there is wear or damage on only one side of the belt, check the belt guide and the alignment of each pulley.
5. If there is noticeable wear on the belt teeth:

• Check the timing cover for damage.
• Check that the gasket has been installed correctly.
• Check for foreign object on the pulley teeth.

If there is any doubt about the belt condition, replace the timing belt.

Fig 1: Inspecting Timing Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Inspect camshaft for runout.
   1. Place the camshaft on V-blocks.
   2. Using a dial indicator, measure the runout at the center journal.

   Maximum circle runout:

   0.06 mm (0.0024 in.)

   If the runout is greater than maximum, replace the camshaft.

   Fig 2: Checking Camshaft Runout At Center Journal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect cam lobes.
   1. Using a micrometer, measure the cam lobe height.

      Standard cam lobe height:

      Intake 43.132 to 43.232 mm (1.6981 to 1.7020 in.)

      Exhaust 43.010 to 43.110 mm (1.6933 to 1.6972 in.)

      Minimum cam lobe height:

   Fig 3: Checking Cam Lobe Height

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Intake 42.98 mm (1.6921 in.)

   Exhaust 42.86 mm (1.6874 in.)

   If the cam lobe height is less than minimum, replace the camshaft.

3. Inspect camshaft journals.
   1. Using a micrometer, measure the journal diameter.

      Journal diameter:

      26.959 to 26.975 mm (1.0614 to 1.0620 in.)

      If the journal diameter is not as specified, check the oil clearance.

      Fig 4: Checking Journal Diameter

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using vernier calipers, measure the tension portion diameter of the bolt.

   Standard outside diameter:

   8.95 to 9.05 mm (0.3524 to 0.3563 in.)

   Minimum outside diameter:

   8.75 mm (0.3445 in.)

   If the diameter is less than minimum, replace the bolt.

Fig 5: Identifying Tension Portion Diameter Of Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

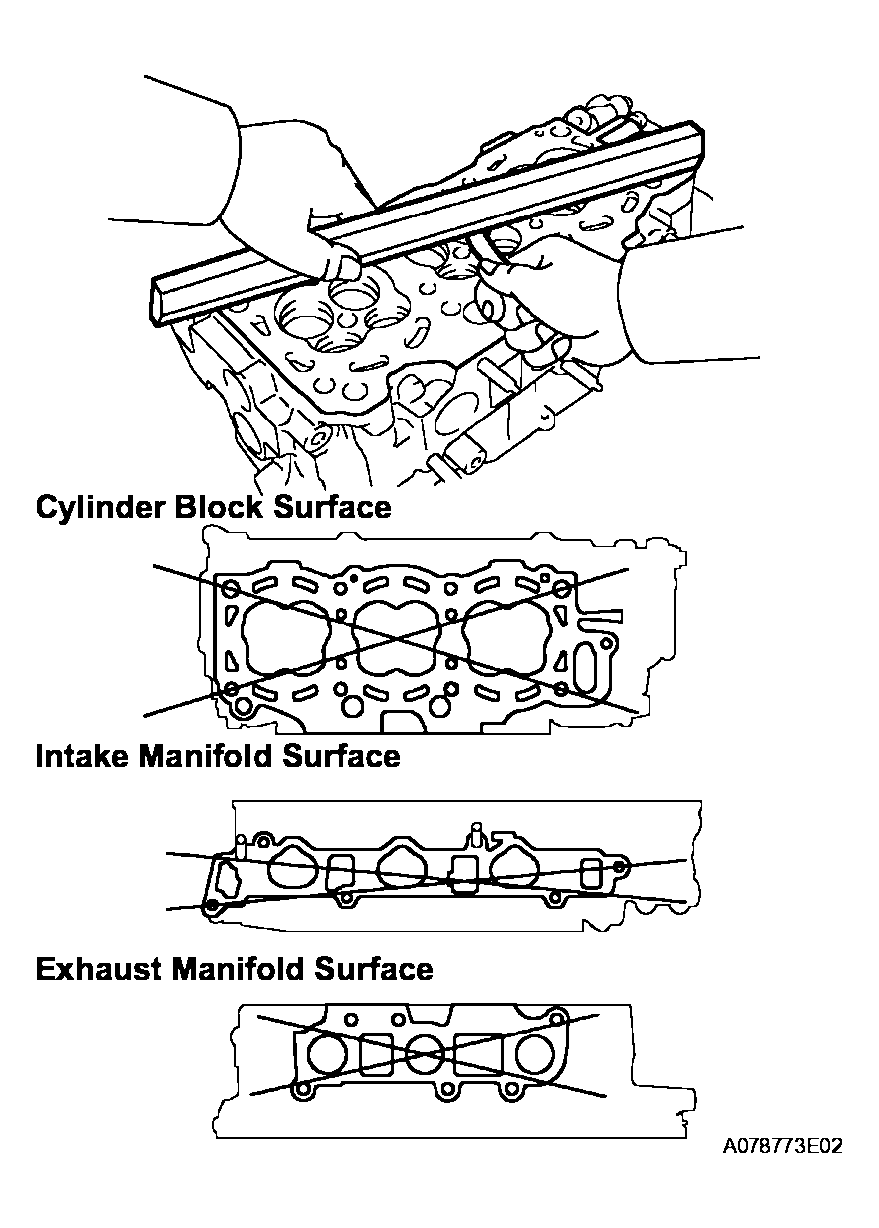

1. Using a precision straight edge and a feeler gauge, measure the surface contacting the cylinder block and the manifolds for warpage.

   Maximum warpage:

   Cylinder block surface 0.05 mm (0.0020 in.)

   Intake manifold surface 0.10 mm (0.0039 in.)

   Exhaust manifold surface 0.10 mm (0.0039 in.)

   If warpage is greater than minimum, replace the cylinder head.

   Fig 6: Checking Surface Contacting Cylinder Block And Manifolds For Warpage

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

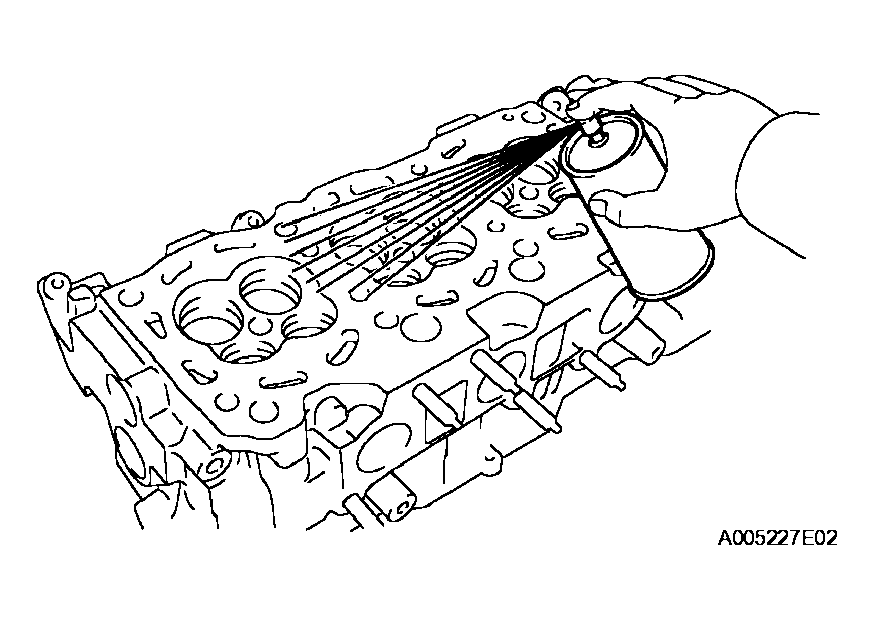

1. Using a dye penetrate, check the combustion chamber, intake ports, exhaust ports and cylinder block surface for cracks.

If cracked, replace the cylinder head.

Fig 7: Checking Combustion Chamber, Intake Ports, Exhaust Ports And Cylinder Block Surface For Cracks

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the valve overall length.

   Standard overall length:

   95.45 mm (3.7579 in.)

   Minimum overall length:

   94.95 mm (3.7382 in.)

   Fig 8: Identifying Intake Valve Overall Length

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a micrometer, measure the diameter of the valve stem.

   Valve steam diameter:

   5.470 to 5.485 mm(0.2154 to 0.2159 in.)

   Fig 9: Checking Diameter Of Intake Valve Stem

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the valve head margin thickness.

Standard margin thickness:

1.0 mm (0.039 in.)

Minimum margin thickness:

0.5 mm (0.020 in.)

Fig 10: Identifying Intake Valve Head Margin Thickness

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the valve overall length.

   Standard overall length:

   95.40 mm (3.7559 in.)

   Minimum overall length:

   94.90 mm (3.7362 in.)

   Fig 11: Identifying Exhaust Valve Overall Length:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a micrometer, measure the diameter of the valve stem.

   Valve steam diameter:

   5.465 to 5.480 mm (0.2152 to 0.2157 in.)

   Fig 12: Checking Diameter Of Exhaust Valve Stem

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the valve head margin thickness.

   Standard margin thickness:

   1.0 mm (0.039 in.)

   Minimum margin thickness:

   0.5 mm (0.020 in.)

   Fig 13: Identifying Exhaust Valve Head Margin Thickness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using vernier calipers, measure the free length of the valve spring.

   Free length:

   45.50 mm (1.7913 in.)

   Fig 14: Checking Free Length Of Valve Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a steel square, measure the deviation of the valve spring.

   Maximum deviation:

   2.0 mm (0.079 in.)

   Fig 15: Checking Deviation Of Valve Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a spring tester, measure the tension of the valve spring at the specified installed length.

Installed tension:

186 to 206 N (19.0 to 21.0 kgf, 41.9 to 46.3 lbf) at 33.8 mm (1.331 in.)

If the installed tension is not as specified, replace the valve spring.

Fig 16: Checking Tension Of Valve Spring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a caliper gauge, measure the inside diameter of the valve guide bushing.

   Bushing inside diameter:

   5.510 to 5.530 mm (0.2169 to 0.2177 in.)

2. Subtract the valve stem diameter measurement from the valve guide bushing inside diameter measurement.

Standard oil clearance:

Intake 0.025 to 0.060 mm (0.0010 to 0.0024 in.)

Exhaust 0.030 to 0.065 mm (0.0012 to 0.0026 in.)

Maximum oil clearance:

Intake 0.08 mm (0.0031 in.)

Exhaust 0.10 mm (0.0039 in.)

Fig 17: Checking Inside Diameter Of Valve Guide Bushing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

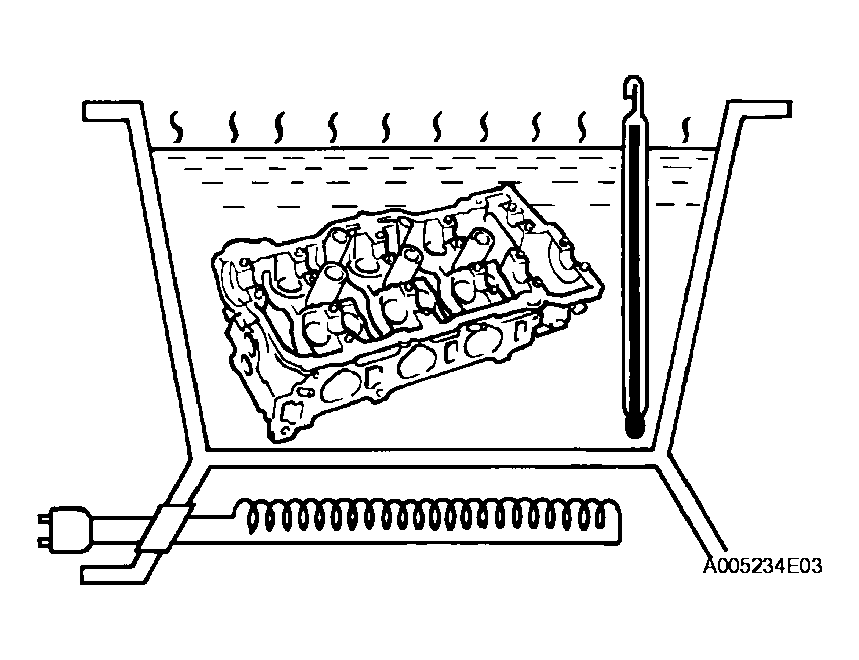

1. Heat the cylinder head to 80 to 100 °C (176 to 212 °F).
   Fig 18: Heating Cylinder Head

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

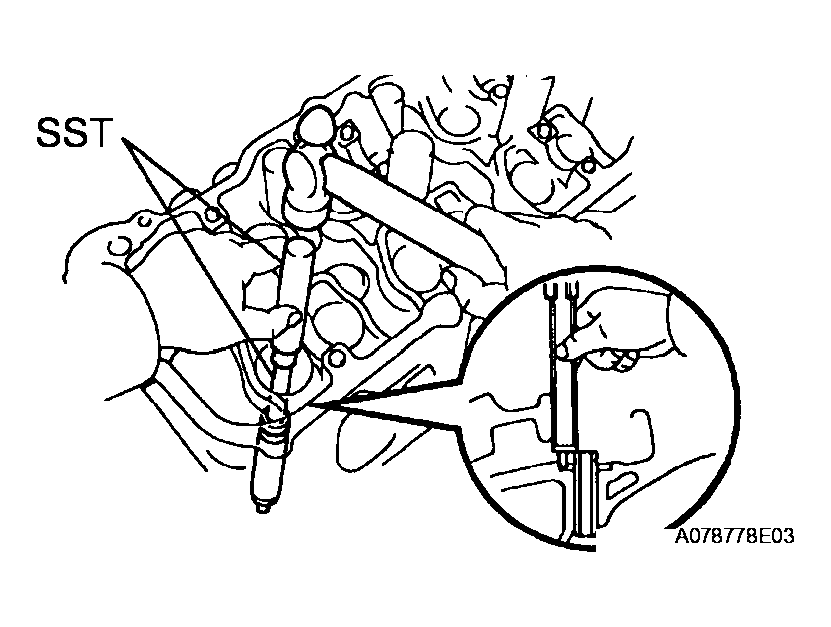

2. Using SST and a hammer, tap out the valve guide bushing.

SST 09201-10000, 09201-01055, 09950-70010 (09951-07100)

Fig 19: Removing Valve Guide Bushing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a caliper gauge, measure the valve guide bushing bore diameter of the cylinder head.

   Diameter:

   10.295 to 10.313 mm (0.4053 to 0.4060 in.)

   If the bushing bore diameter of the cylinder dead is greater than 10.313 mm (0.4060 in. ), machine the valve guide bushing bore to the dimension of 10.345 to 10.363 mm (0.4073 to 0.4080 in.)

   Valve guide bushing diameter

   VALVE GUIDE BUSHING DIAMETER SPECIFICATION



   STD	10.333 to 10.344 mm (0.4068 to 0.4072 in.)
   O/S	10.383 to 10.394 mm (0.4088 to 0.4092 in.)

   Fig 20: Checking Valve Guide Bushing Bore Diameter Of Cylinder Head

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using vernier calipers, measure the new valve guide bushing length.

   Valve guide bushing length

   VALVE GUIDE BUSHING LENGTH SPECIFICATION



   Intake	34.5 mm (1.358 in.)
   Exhaust	40.5 mm (1.594 in.)

3. Heat the cylinder head to 80 to 100 °C (176 to 212 °F).
   Fig 21: Identifying New Valve Guide Bushing Length

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST and a hammer, tap in a new valve guide bushing to the specified protrusion height.

   SST 09201-10000, 09201-01055, 09950-70010 (09951-07100)

   Protrusion height:

   Intake 11.1 to 11.5 mm (0.437 to 0.453 in.)

   Exhaust 8.9 to 9.3 mm (0.350 to 0.336 in.)

   Fig 22: Installing Valve Guide Bushing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

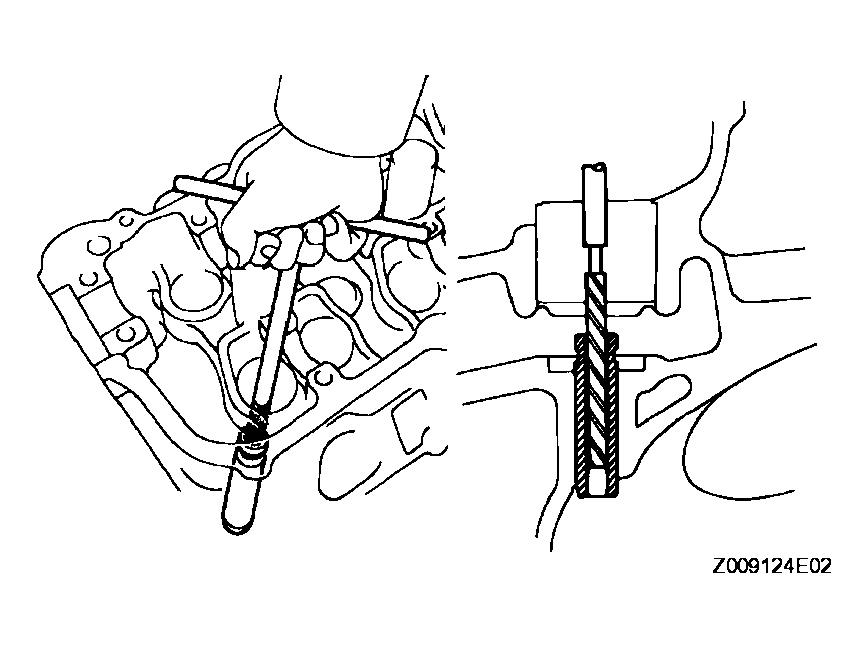

5. Using a sharp 5.5 mm reamer, ream the valve guide bushing to obtain the standard specified clearance between the valve guide bushing and the valve stem.

Standard oil clearance:

Intake 0.025 to 0.060 mm (0.0010 to 0.0024 in.)

Exhaust 0.030 to 0.065 mm (0.0012 to 0.0026 in.).

Fig 23: Reaming Valve Guide Bushing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply a light coat of prussian blue (or white lead) to the valve face.
2. Lightly press the valve against the seat.
   NOTE: Do not rotate the valve.
3. Check the valve face and seat according to the following procedure.
   1. If blue appears 360° around the face, the valve is concentric. If not, replace the valve.
   2. If blue appears 360° around the valve seat, the guide and face are concentric. If not, resurface the seat.
   3. Check that the seat contact is in the middle of the valve face with the width between 1.0 to 1.4 mm (0.039 to 0.055 in.).

Fig 24: Identifying Valve Seat Width

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. If the seating is too high on the valve face, use 30° and 45° cutters to correct the seat.
   Fig 25: Identifying Cutters Angles For Correcting Valve Seat

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. If the seating is too low on the valve face, use 60° and 45° cutters to correct the seat.
3. Hand-lap the valve and valve seat with an abrasive compound.
4. Recheck the valve seating position.

Fig 26: Identifying Cutters Angles For Correcting Valve Seat

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a micrometer, measure the lifter diameter.

Lifter diameter:

30.966 to 30.976 mm (1.2191 to 1.2195 in.)

Fig 27: Checking Lifter Diameter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

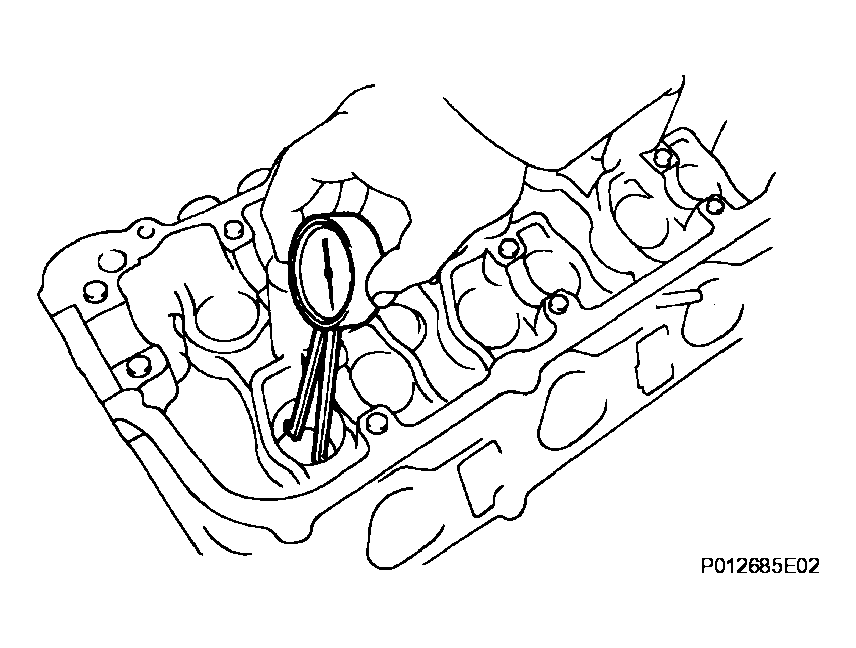

1. Using a caliper gauge, measure the lifter bore diameter of the cylinder head.

   Lifter bore diameter:

   31.009 to 31.025 mm (1.2208 to 1.2215 in.)

2. Subtract the lifter diameter measurement from the lifter bore diameter measurement.

Standard oil clearance:

0.033 to 0.059 mm (0.0013 to 0.0023 in.)

Maximum oil clearance:

0.07 mm (0.0028 in.)

Fig 28: Checking Lifter Bore Diameter Of Cylinder Head

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install camshaft timing gear assembly.
2. Install the camshafts to the cylinder head.
   NOTE:

   • Install without valves and sub-gear.
   • Install with its timing mark matched.

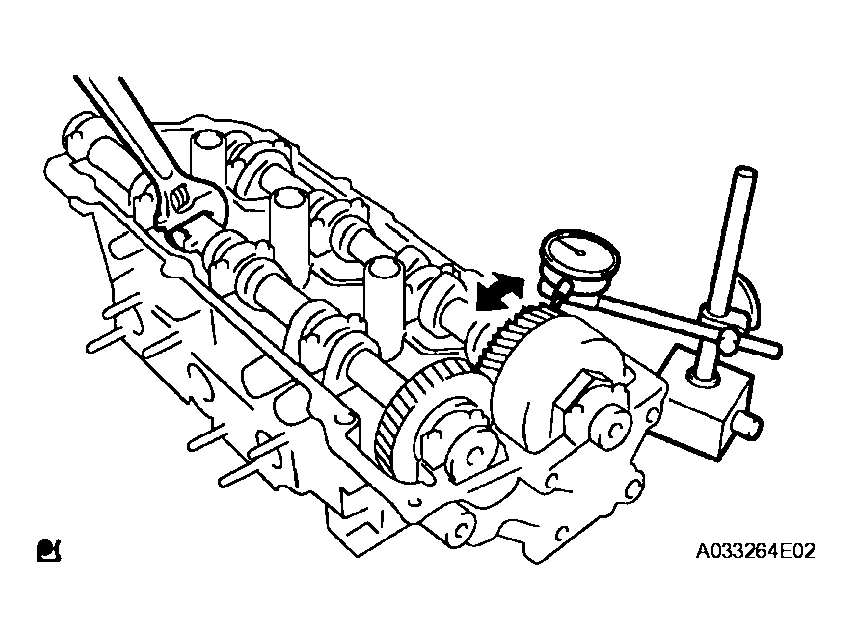

3. Set the dial indicator to the teeth of the intake camshaft at a right angle (90°).
4. Measure the backlash of the camshaft timing gear at least 4 positions.

Standard backlash:

0.020 to 0.200 mm (0.0008 to 0.0079 in.) Maximum backlash:

0.30 mm (0.0118 in.)

Fig 29: Checking Backlash Of Camshaft Timing Gear

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

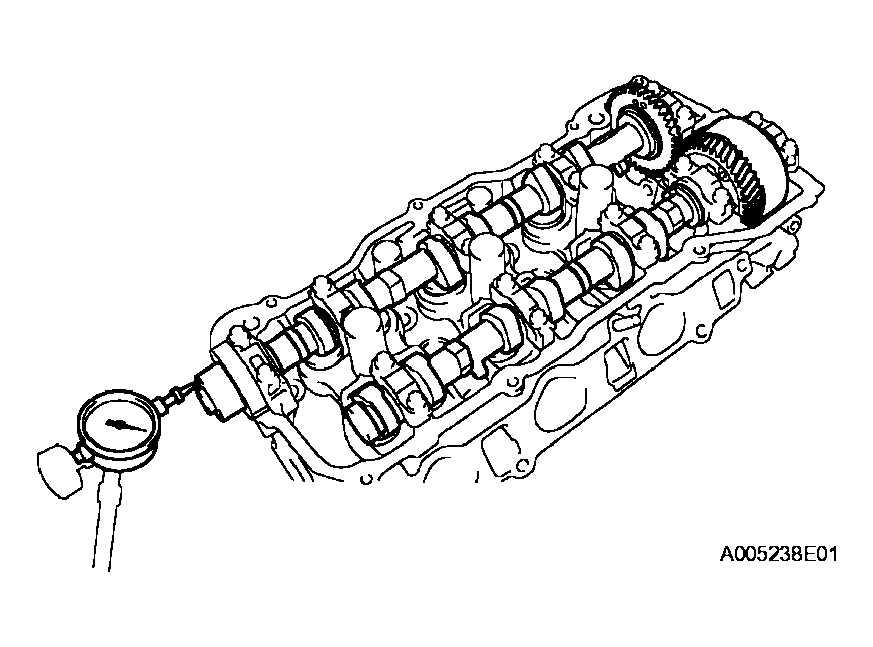

1. Install the camshafts.
2. Using a dial indicator, measure the thrust clearance while moving the camshaft back and forth.

Standard thrust clearance:

0.040 to 0.090 mm (0.0016 to 0.0035 in.)

Maximum thrust clearance :

0.12 mm (0.0047 in.)

If the thrust clearance is greater than maximum, replace the camshaft. If necessary, replace the bearing caps and cylinder head together.

Fig 30: Checking Camshaft Thrust Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

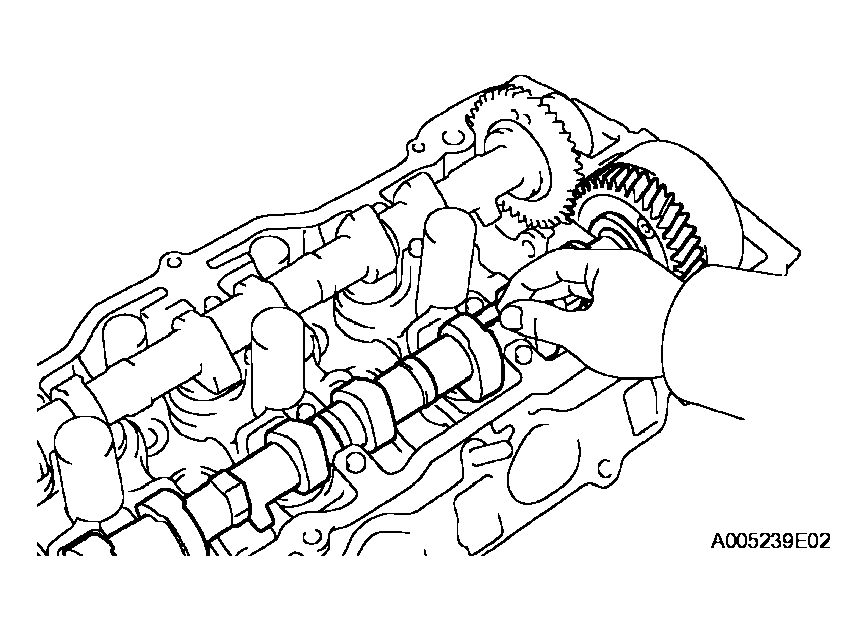

1. Clean the bearing caps and camshaft journals.
2. Place the camshafts on the cylinder head.

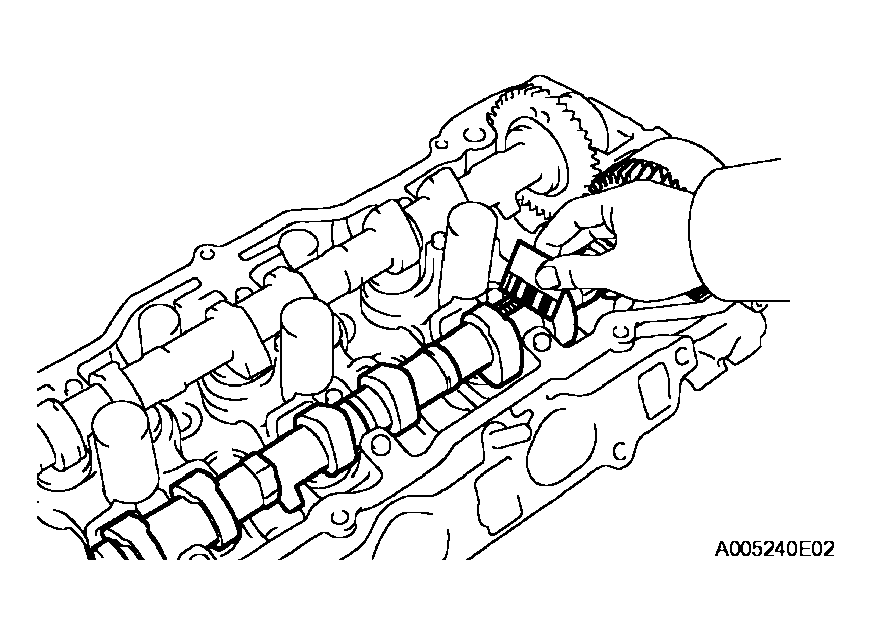

3. Lay a strip of plastigage across each of the camshaft journal.
4. Install the bearing caps.

   Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

   NOTE: Do not turn the camshaft.
5. Remove the bearing caps.
   Fig 31: Laying Strip Of Plastigage Across Each Of Camshaft Journal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Measure the plastigage at its widest point.

Standard oil clearance:

Intake #4, #5 journals 0.025 to 0.057 mm (0.0010 to 0.0022 in.)

Other journals 0.025 to 0.062 mm (0.0010 to 0.0024 in.)

Maximum oil clearance: 0.10 mm (0.039 in.)

If the oil clearance is greater than maximum, replace the camshaft. If necessary, replace the bearing caps and cylinder head together.

Fig 32: Measuring Plastigage At Its Widest Point

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
