On-Vehicle Inspection

INSPECT FRONT AXLE HUB BEARING BACKLASH
1. Using a dial gauge, check for backlash near the center of the axle hub.
  Maximum:

  0.05 mm (0.0020 in.)

  If backlash exceeds the maximum, replace the bearing.

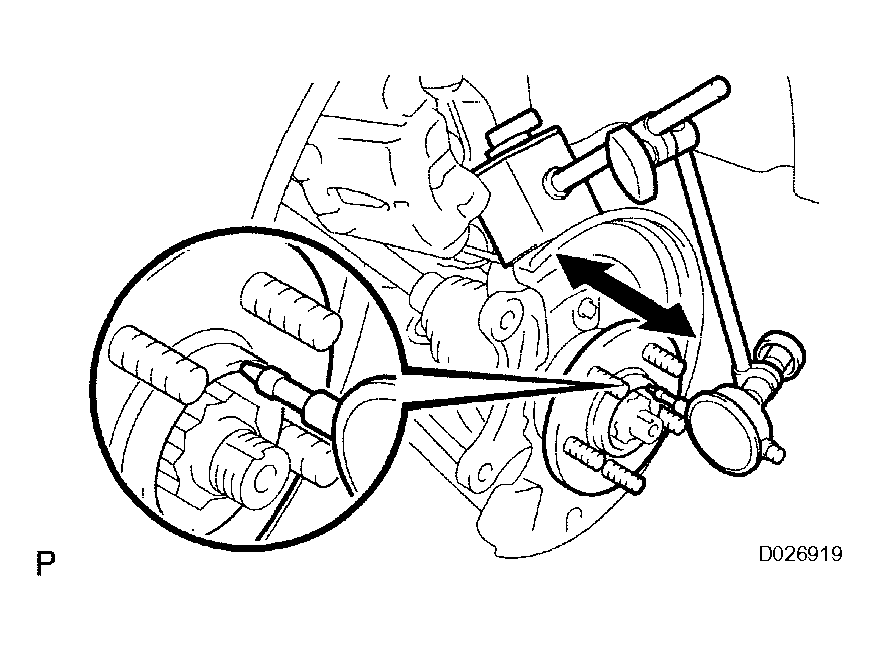

  Fig 1: Checking For Backlash Near Center Of Axle Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Ensure that the dial gauge is set at right angles to the measurement surface.
INSPECT FRONT AXLE HUB BEARING DEVIATION
1. Using a dial gauge, check for deviation in the surface of the axle hub outside the hub bolt.
  Maximum:

  0.05 mm (0.0020 in.)

  If deviation exceeds the maximum, replace the axle hub.

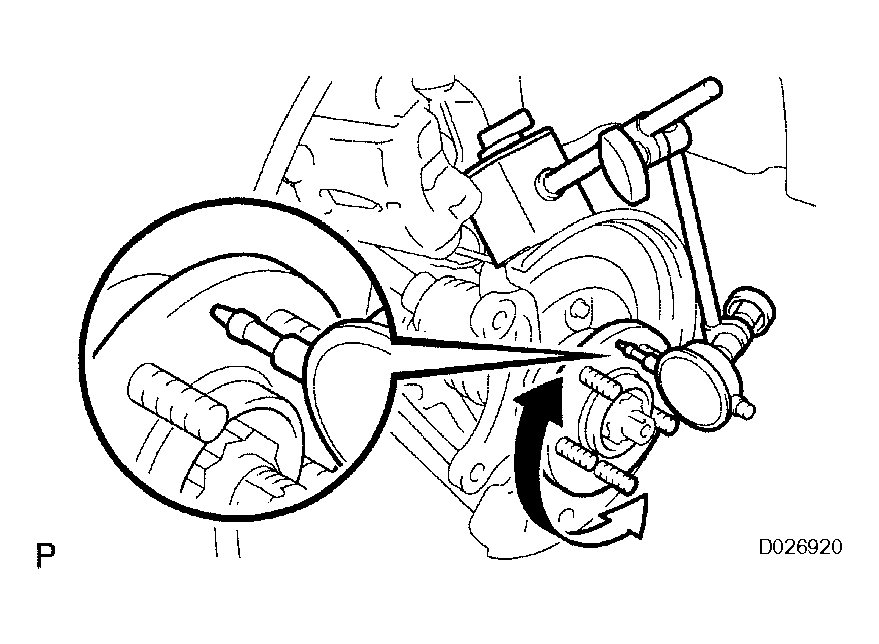

  Fig 2: Inspecting Front Axle Hub Bearing Deviation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Ensure that the dial gauge is set at right angles to the measurement surface.
