PROPELLER SHAFT ASSEMBLY (for 4WD): Installation

1. Align the matchmarks on the propeller shaft assembly rear flange and differential companion flange, and connect the shaft with the 4 bolts, washers and nuts.
   Fig 1: Aligning Matchmarks On Propeller Shaft Assembly Rear Flange And Differential Companion Flange

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove SST(s) from the extension housing.
3. Insert the yoke into the extension housing.
   NOTE:

   • Be careful not to damage the oil seal.
   • Be careful not to damage the universal joint boot when installing the propeller shaft.
   Fig 2: Removing SST(S) From Extension Housing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

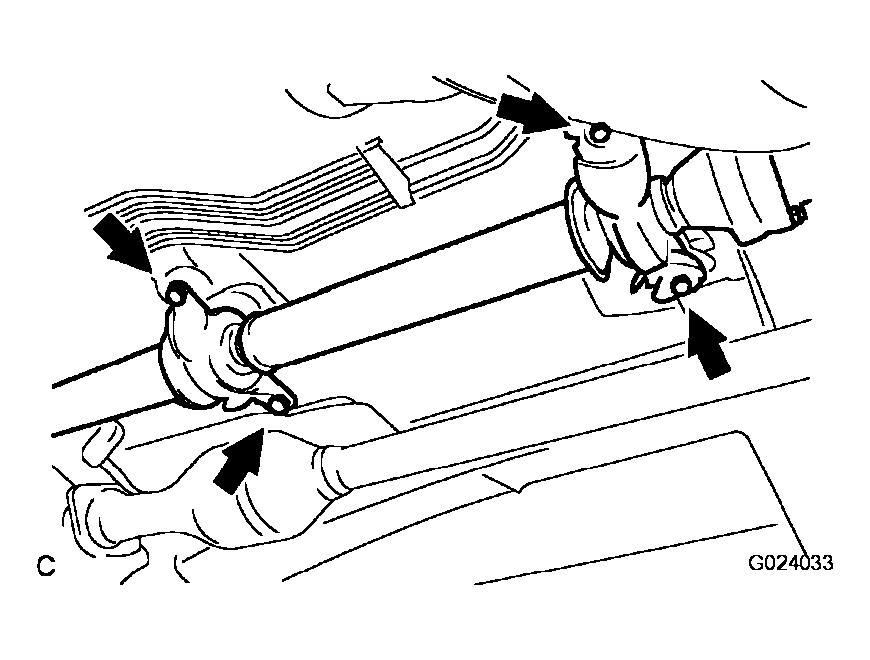

4. Install the 4 adjusting shims and propeller shaft w/center bearing, and loosely tighten the 4 bolts.
   Fig 3: Installing Adjusting Shims And Propeller Shaft W/Center Bearing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Tighten the 4 nuts.

Torque: 74 N*m (750 kgf*cm, 54 ft.*lbf)

Fig 4: Tightening Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

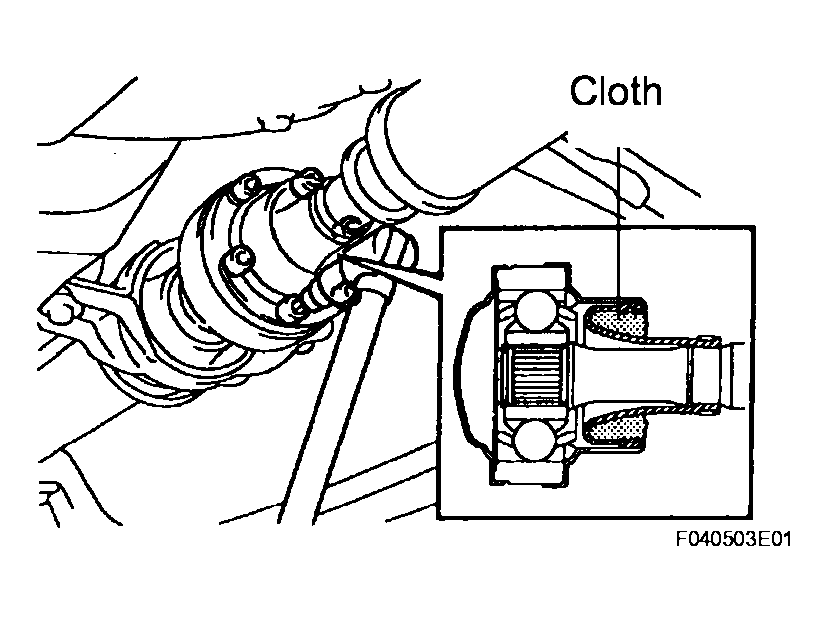

1. Remove the cloth from the joint.
2. Using a hexagon wrench (6 mm), tighten the 6 bolts.

   Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

   Fig 5: Removing Cloth From Joint

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. With the vehicle unloaded, adjust the dimension between the rear side of the cover and shaft, as shown in the illustration.
   Fig 6: Identifying Dimension Between Rear Side Of Cover And Shaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

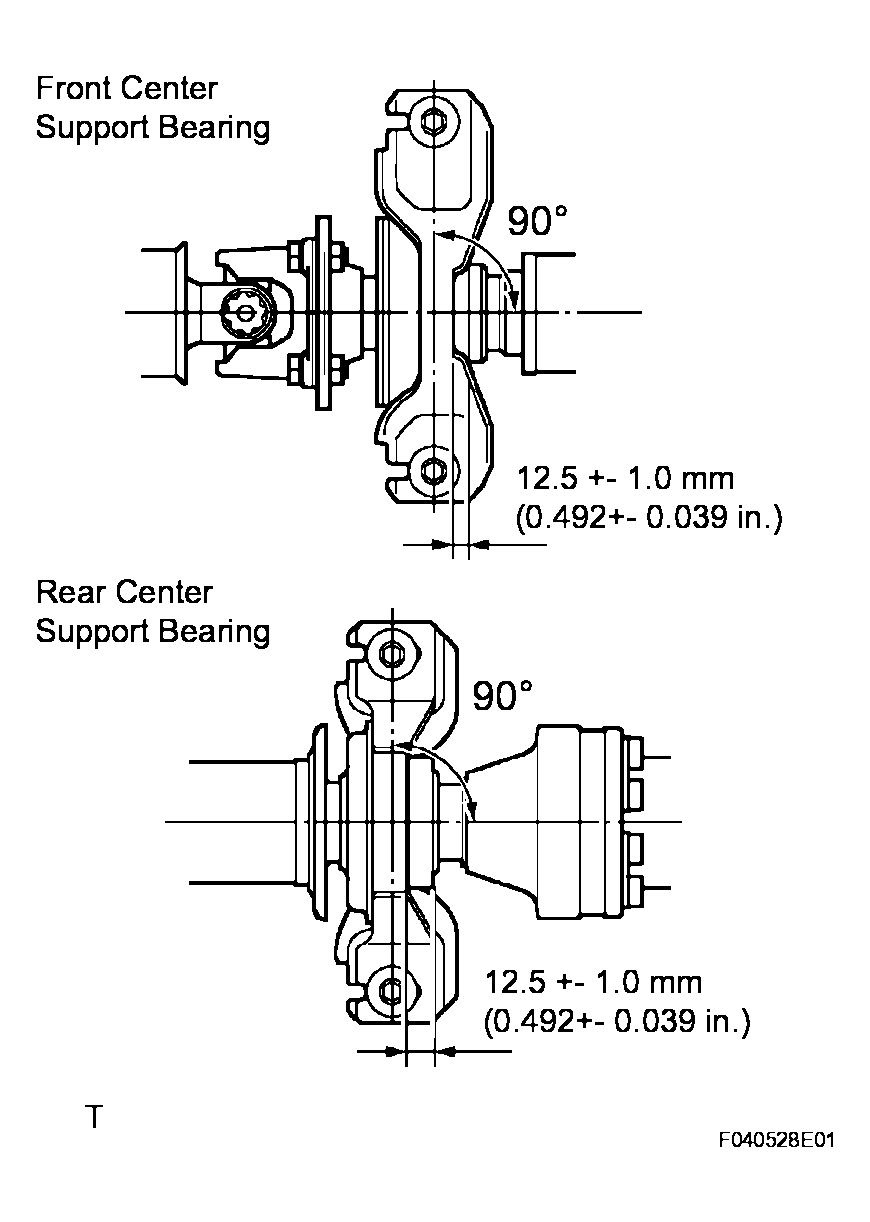

4. Adjust the front and rear dimensions between the edge surface of the center support bearing and the edge surface of the cushion to 12.5 +- 1.0 mm (0.492 +- 0.039 in.) respectively as shown in the illustration, then torque the bolts.

   Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

5. Check that the center line of the bracket is at right angles to the shaft axial direction.
6. If any vibration or noise occurs, perform joint angle check as follows and replace the adjusting shim with a proper one.
   1. Turn the propeller shaft several times by hand to stabilize the center support bearings.
   2. Using a jack, raise and lower the differential to stabilize the differential mounting cushion.
   3. Remove the transfer dynamic damper.

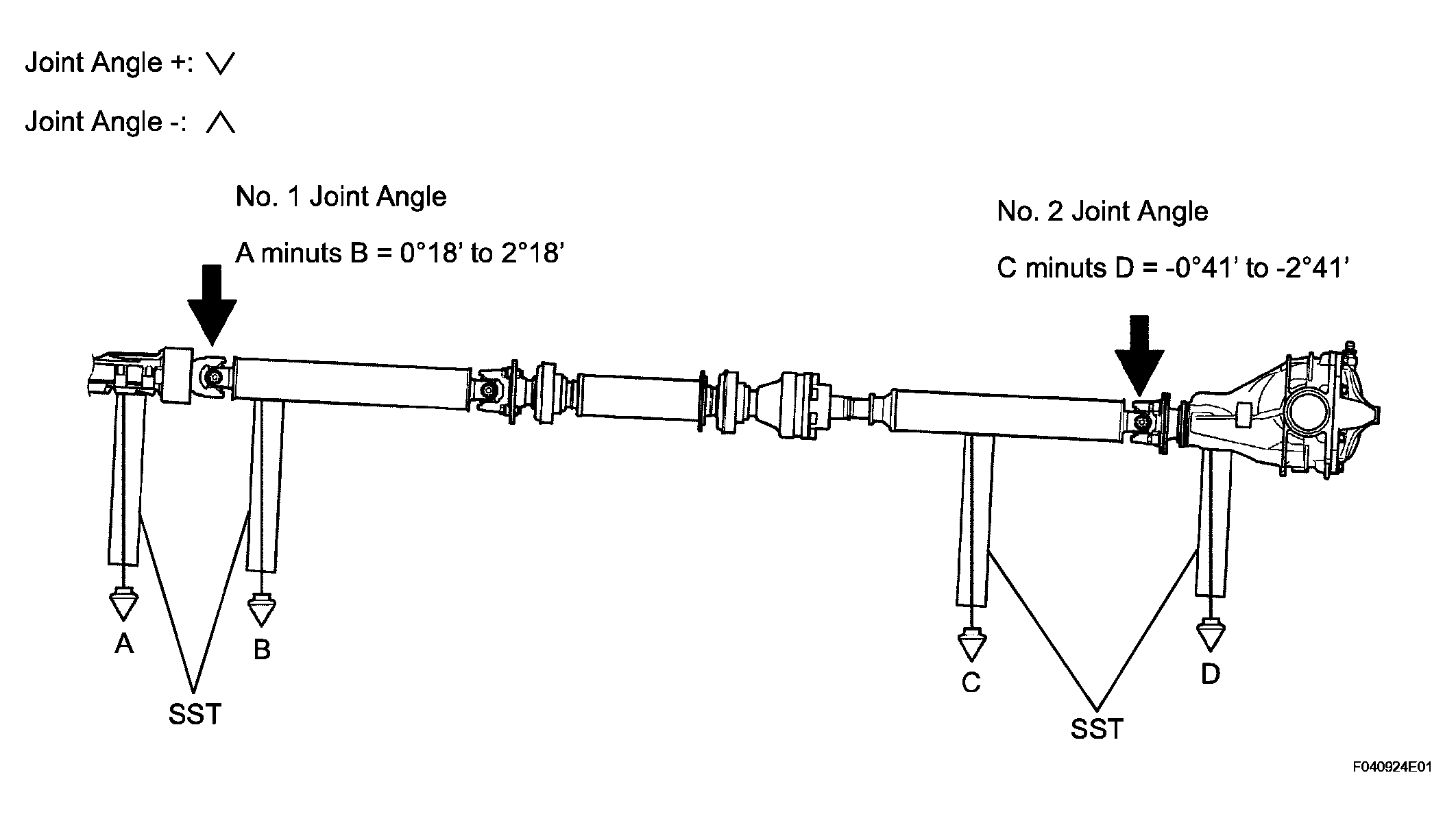

   4. Using SST(s), measure the installation angle of the transfer extension housing (A) and front propeller shaft (B).

      SST 09370-50010

      No. 1 joint angle:

      A minus B = 0°18' to 2°18'

      Fig 7: Adjusting Front And Rear Dimensions Between Edge Surface Of Center Support Bearing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Using SST(s), measure the installation angle of the rear propeller shaft (C) and rear differential (D).

   SST 09370-50010

   No. 2 joint angle:

   C minus D = -0°41' to -2°41'

   Fig 8: Measuring Installation Angle Of Rear Propeller Shaft And Rear Differential

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the measured angle is not within the specification, adjust with the center support bearing adjusting shim.

   Center support bearing adjusting shim thickness

   CENTER SUPPORT BEARING ADJUSTING SHIM THICKNESS TABLE



   Thickness mm (in.)	Thickness mm (in.)
   3.2 (0.126)	4.5 (0.177)
   6.5 (0.256)	9.0 (0.354)
   11.0 (0.433)	13.5 (0.531)
   15.5 (0.610)	17.5 (0.689)

7. Install the transfer dynamic damper.

Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)
