Rear Brake Pad, Brake Caliper & Brake Rotor: Removal

HINT:

Overhaul the RH side by using the same procedures as those for the LH side.

1. REMOVE REAR WHEEL
2. DRAIN BRAKE FLUID
   NOTE: Wash the brake fluid off immediately if it adheres to any painted surfaces.
3. DISCONNECT REAR LH FLEXIBLE HOSE
   1. Remove the union bolt and the gasket from the disc brake cylinder assembly rear, then disconnect the flexible hose.
4. REMOVE REAR DISC BRAKE CYLINDER SLIDE PIN
   1. Remove the rear disc brake cylinder slide pin No. 2.
   2. Remove the rear disc brake cylinder slide pin.

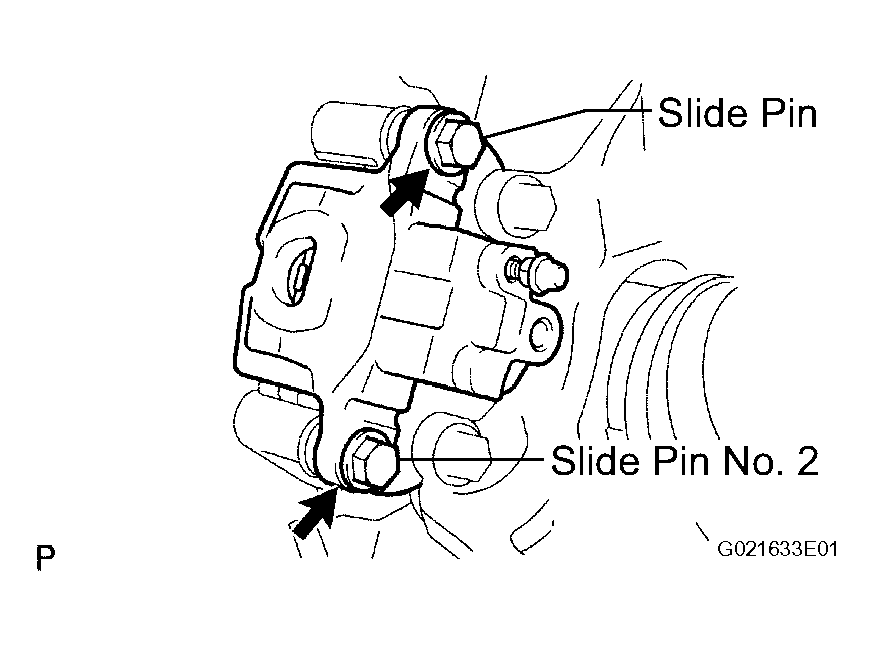

   Fig 1: Removing Rear Disc Brake Cylinder Slide Pin

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE DISC BRAKE CYLINDER ASSEMBLY
   1. Remove the disc brake cylinder assembly.

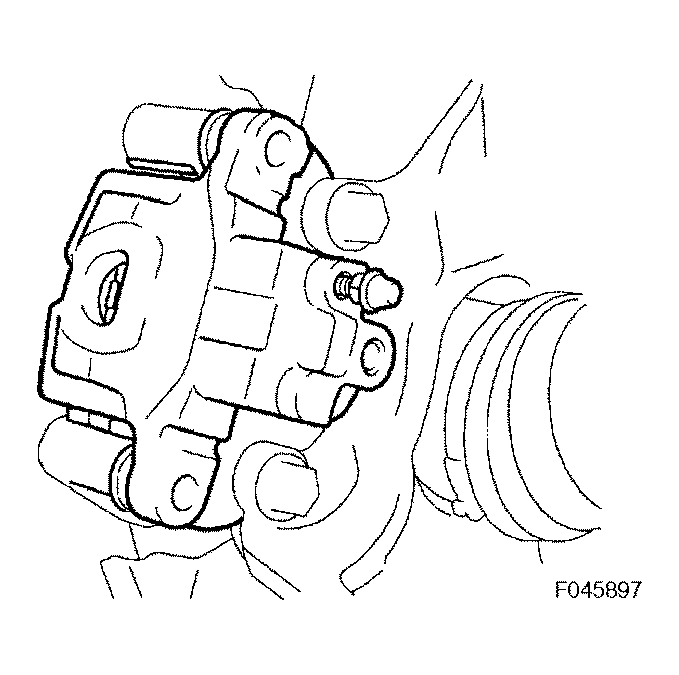

   Fig 2: Removing Disc Brake Cylinder Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
