Front Brake Pad, Brake Caliper & Brake Rotor: Removal

  1. REMOVE FRONT WHEEL
  2. DRAIN BRAKE FLUID
    NOTE: Wash the brake fluid off immediately if it adheres to any painted surfaces.
  3. DISCONNECT FRONT FLEXIBLE HOSE
    1. Remove the union bolt and the gasket from the disc brake cylinder sub-assembly, then disconnect the flexible hose.
  4. REMOVE DISC BRAKE CYLINDER ASSEMBLY LH
    1. Hold the front disc brake cylinder slide pin, slide pin (No. 2) and remove the 2 bolts.

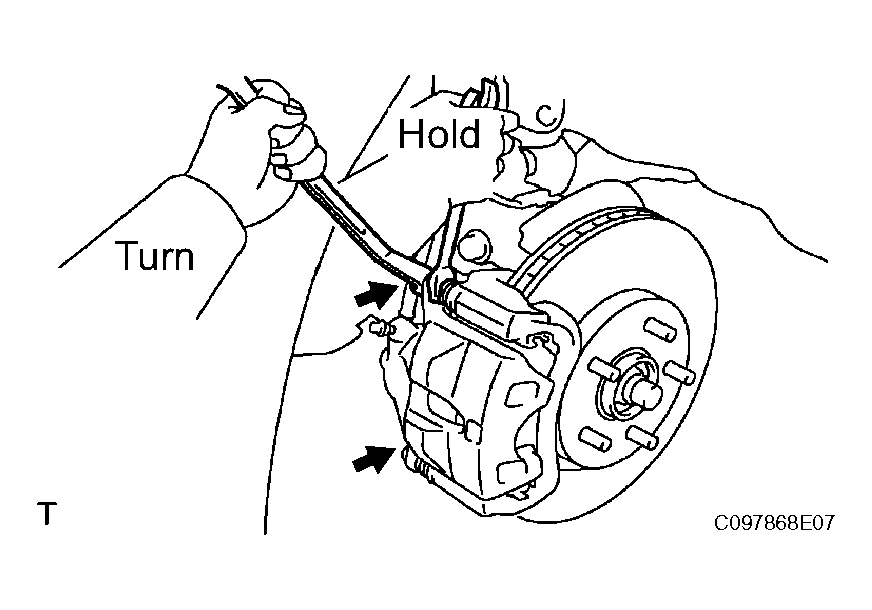

      Fig 1: Removing Disc Brake Cylinder Assembly LH
      G04090713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
