Brake Pedal: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH
  2. REMOVE INSTRUMENT PANEL FINISH PANEL SUBASSEMBLY LOWER

    HINT:

    See REMOVAL .

  3. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY

    HINT:

    See REMOVAL .

  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    HINT:

    See REMOVAL .

  5. REMOVE COMBINATION METER ASSEMBLY

    HINT:

    See REMOVAL .

  6. REMOVE BRAKE PEDAL RETURN SPRING
    1. Remove the brake pedal return spring.
  7. REMOVE PUSH ROD PIN
    1. Remove the clip and the push rod pin.
    2. Disconnect the stop light switch connector.
    3. Disconnect the pedal force switch connector and release the clip of the pedal force switch.
    Fig 1: Removing Push Rod Pin
    G04090679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE BRAKE PEDAL SUPPORT ASSEMBLY
    1. Remove the bolt, the 4 nuts and the brake pedal support assembly.
  9. REMOVE BRAKE PEDAL SUB-ASSEMBLY
    1. Remove the nut, the brake pedal shaft and the brake pedal sub-assembly from the brake pedal support sub-assembly.

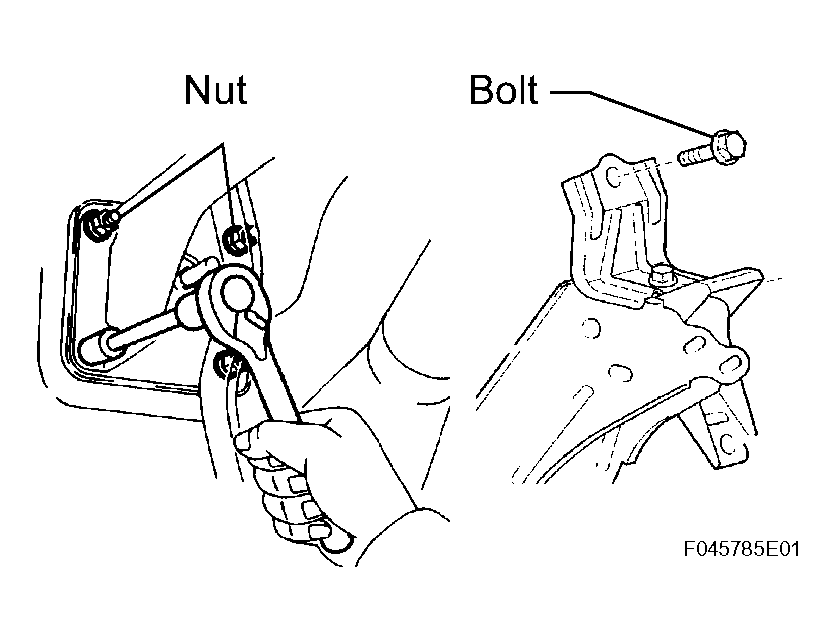

    Fig 2: Removing Brake Pedal Support Assembly
    G04090680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
