Home >> Lexus >> 2006 >> RX 330 FWD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brakes - Mechanical >> Brake Pedal >> Components

Brake Pedal: Components

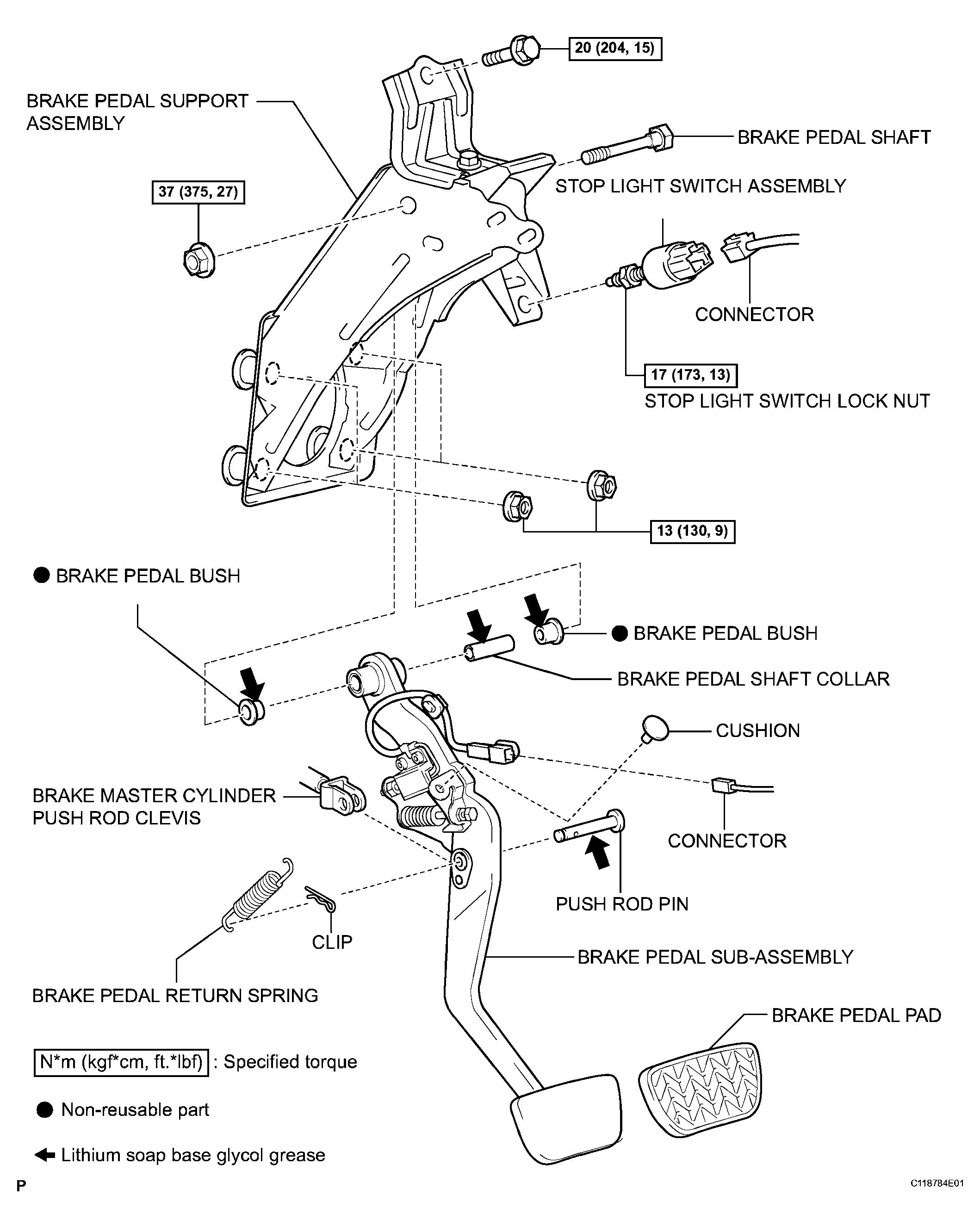

Fig 1: Brake Pedal Replacement Components With Torque Specifications

G04090678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
