Brake Master Cylinder: Installation

INSTALL BRAKE MASTER CYLINDER SUBASSEMBLY
1. Install the brake master w/ plate cylinder subassembly and the check valve bracket with the 2 nuts.

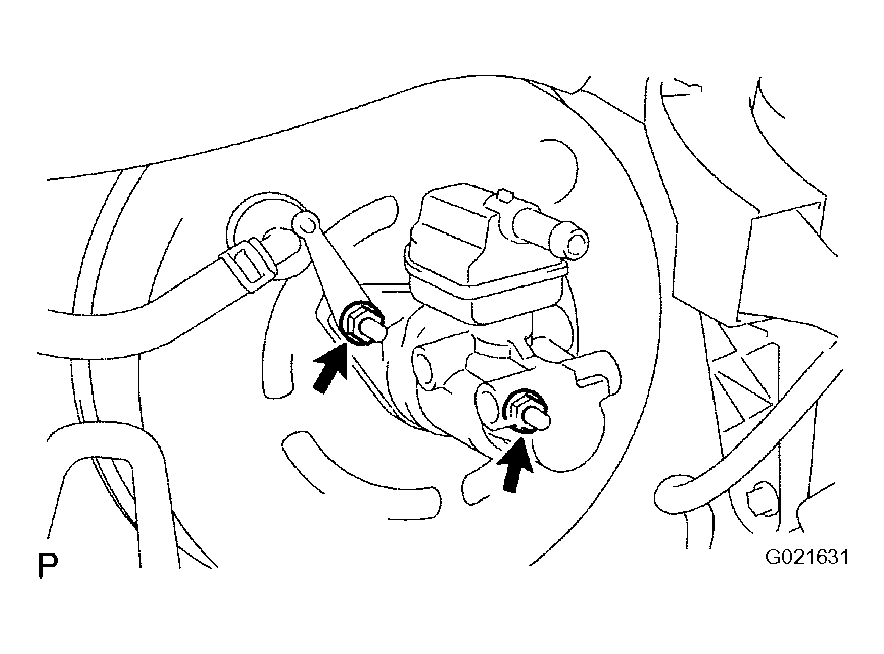

  Fig 1: Installing Brake Master W/ Plate Cylinder Subassembly And Check Valve Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 13 N*m (127 kgf*cm, 9 ft.*lbf)
2. Using SST(s), connect the 2 brake tubes to the brake master w/ plate cylinder assembly.

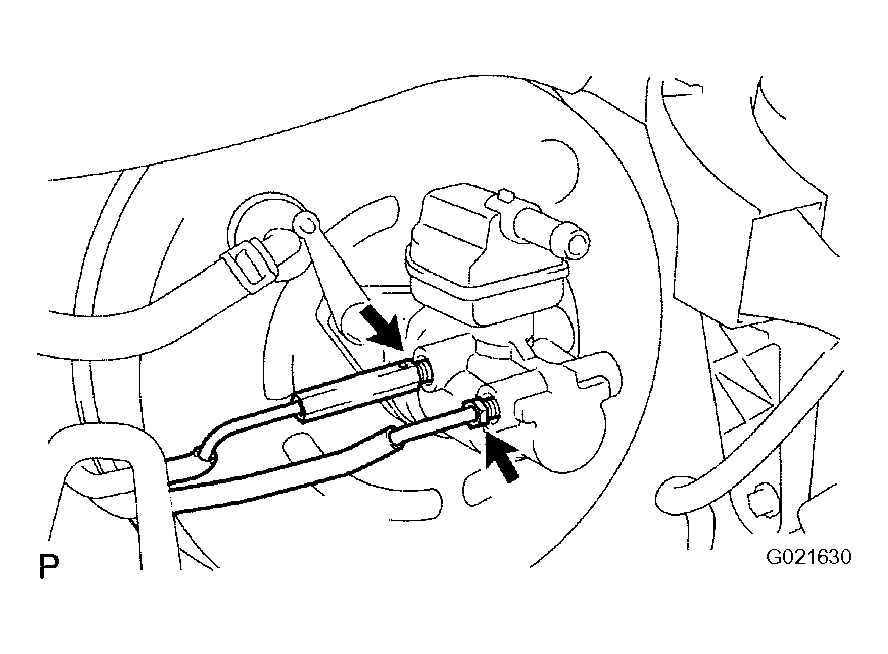

  Fig 2: Connecting Brake Tubes To Brake Master W/ Plate Cylinder Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09023-00101

  Torque: 15 N*m (155 kgf*cm, 11 ft.*lbf)
3. Slide the clip and connect the reservoir tube.
INSTALL AIR CLEANER HOSE NO. 1
INSTALL AIR CLEANER ASSEMBLY
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
FILL RESERVOIR WITH BRAKE FLUID

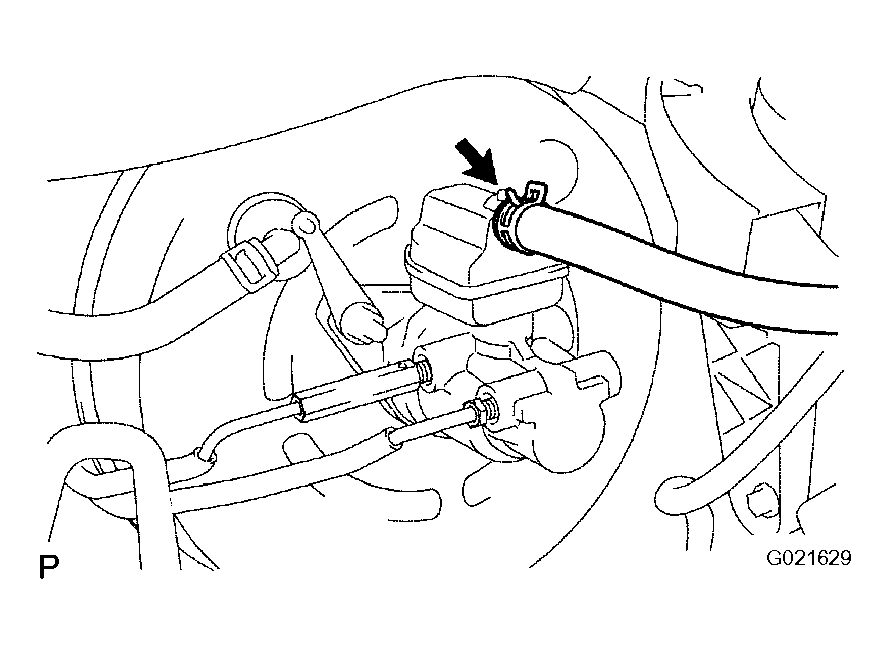

Fig 3: Connecting Reservoir Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BLEED MASTER CYLINDER
HINT:

See BRAKE FLUID .

SST 09023-00101
BLEED BRAKE LINE
HINT:

See BRAKE FLUID .
CHECK FLUID LEVEL IN RESERVOIR
HINT:

See BRAKE FLUID .
CHECK BRAKE FLUID LEAKAGE
