Brakes - Mechanical
>>
Brake Master Cylinder
>>
Components
Brake Master Cylinder: Components

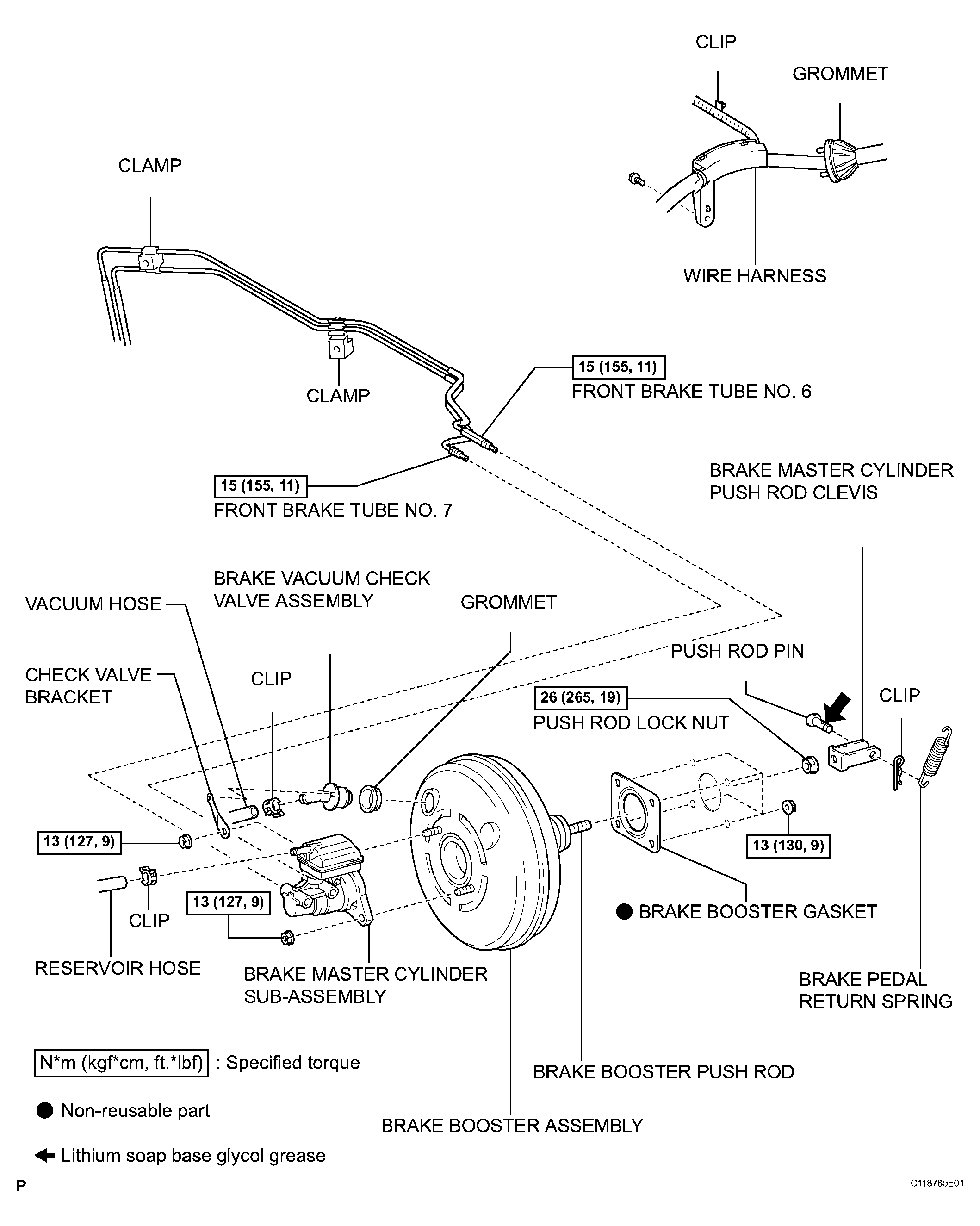

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
