Instrument Panel Safety Pad: Disassembly

  1. REMOVE SPEAKER HOLE NO. 1 COVER (w/ Mark Levinson Speaker System)
    1. Disengage the 4 clips and remove the speaker hole No.1 cover.

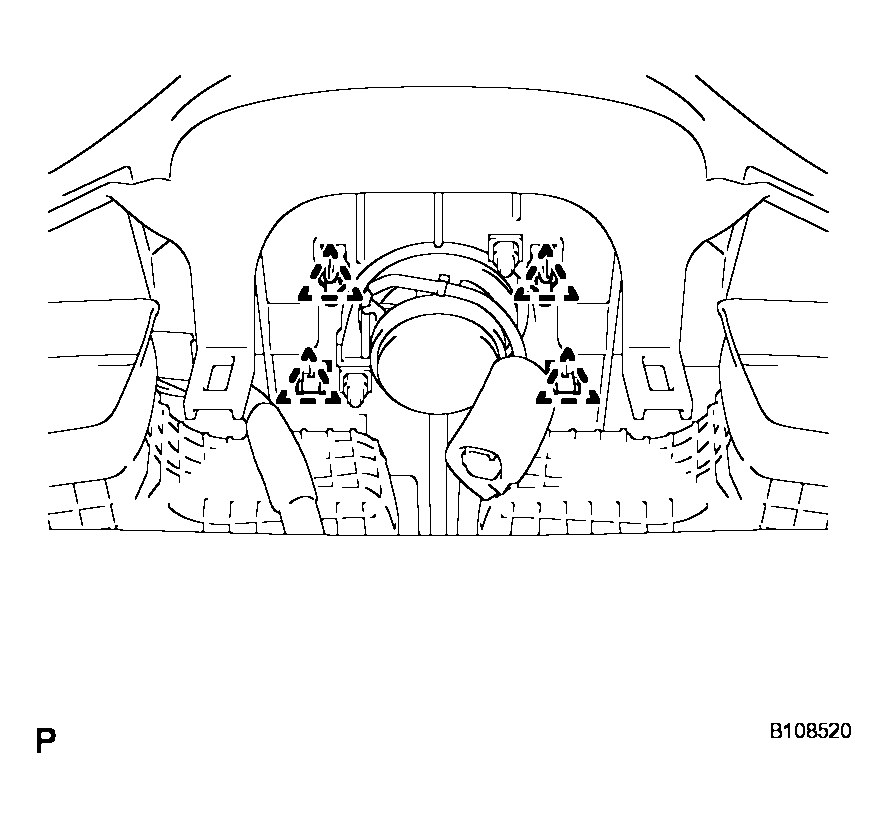

    Fig 1: Removing Speaker Hole No.1 Cover (W/ Mark Levinson Speaker System)
    G04093324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE INSTRUMENT PANEL NO. 1 SPEAKER PANEL SUB-ASSEMBLY
    1. Disengage the 2 clips and remove the instrument panel No.1 speaker panel sub-assembly.
  3. REMOVE INSTRUMENT PANEL NO. 2 SPEAKER PANEL SUB-ASSEMBLY

    HINT:

    Use the same procedures for the instrument panel No.2 speaker panel sub-assembly and the instrument panel No.1 speaker panel sub-assembly.

  4. REMOVE FRONT NO. 2 SPEAKER (w/ Mark Levinson Speaker System) (See  REMOVAL  )
  5. REMOVE FRONT NO. 2 SPEAKER (for Driver Side) (See  REMOVAL  )
  6. REMOVE FRONT NO. 2 SPEAKER (for Front Passenger Side)

    HINT:

    Use the same procedures for the driver side and passenger side.

    Fig 2: Removing Instrument Panel No. 1 Speaker Panel Sub-Assembly
    G04093325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SIDE DEFROSTER NO. 3 NOZZLE DUCT
    1. Remove the screw < C > and the side defroster No. 3 nozzle duct.
  8. REMOVE SIDE DEFROSTER NO. 4 NOZZLE DUCT

    HINT:

    Use the same procedures for the side defroster No. 4 nozzle duct and the side defroster No. 3 nozzle duct.

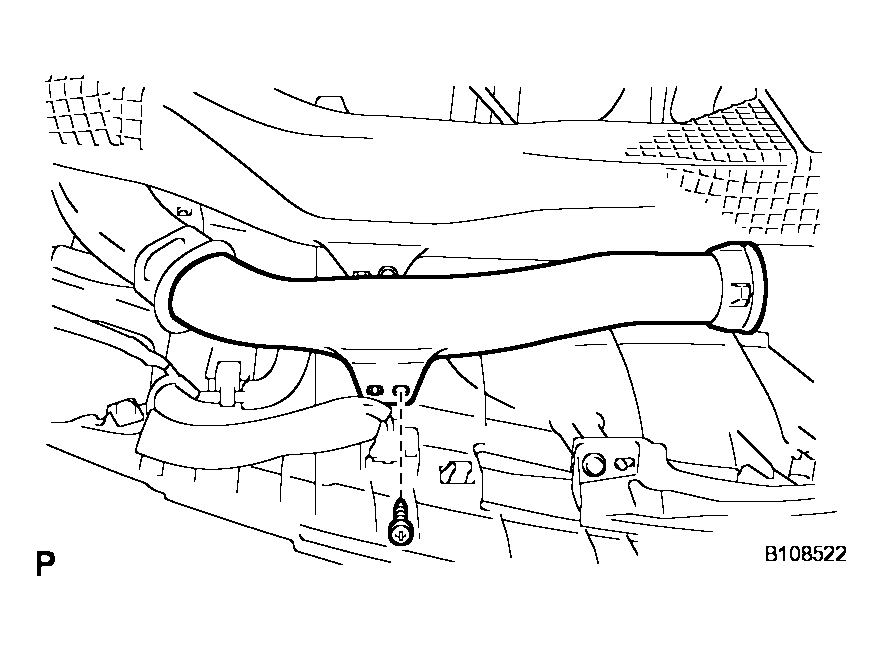

    Fig 3: Removing Side Defroster No. 3 Nozzle Duct
    G04093326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE INSTRUMENT PANEL NO. 1 PIN
    1. Remove the screw < C > and the instrument panel No. 1 pin.
    Fig 4: Removing Instrument Panel No. 1 Pin
    G04093327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. Remove the 3 screws < C > and the defroster nozzle assembly.

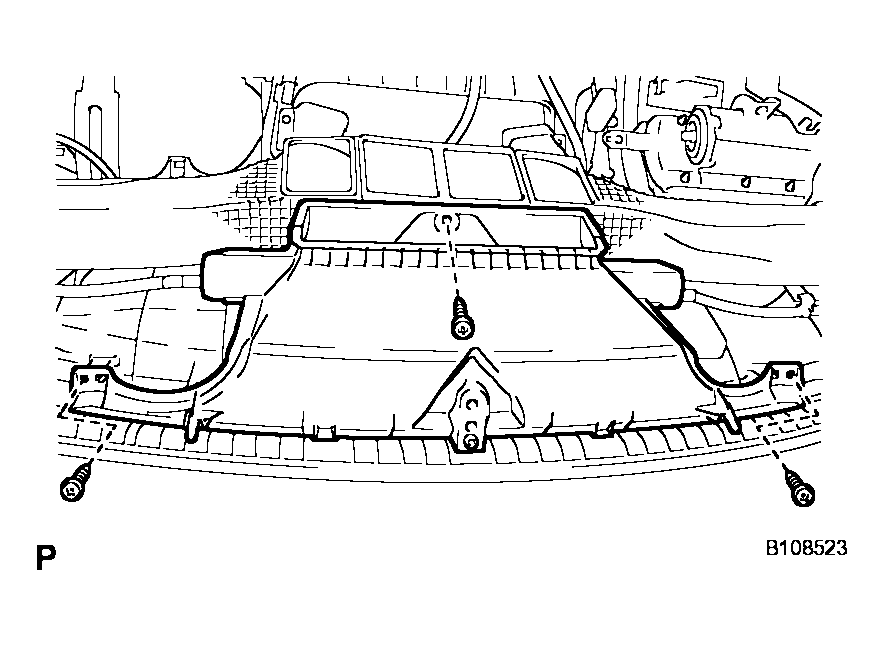

    Fig 5: Removing Defroster Nozzle Assembly
    G04093328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HEATER TO REGISTER NO. 1 DUCT
    1. Remove the 4 screws < C > and the heater to register No. 1 duct.
  12. REMOVE HEATER TO REGISTER NO. 4 DUCT

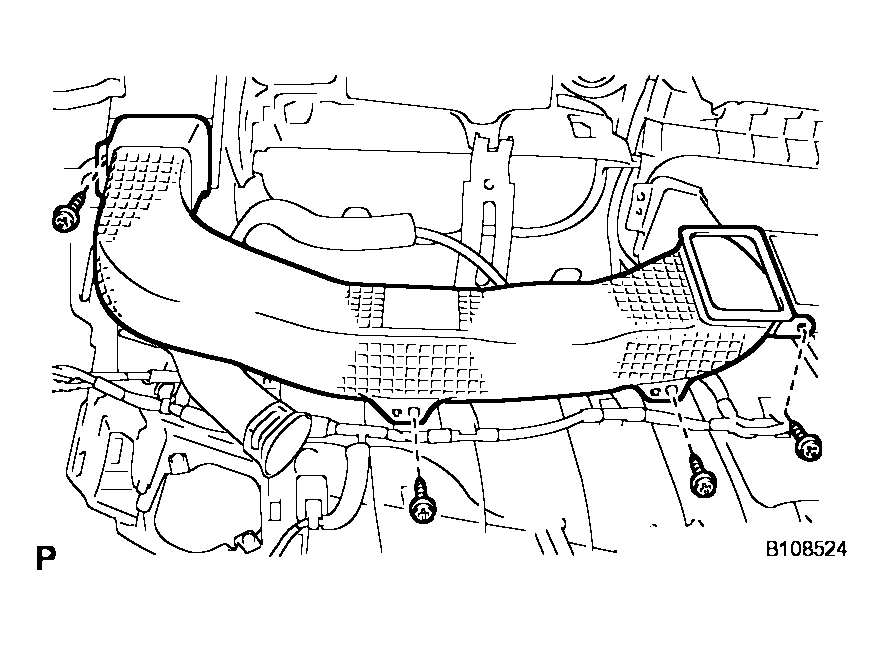

    Fig 6: Removing Heater To Register No. 1 Duct
    G04093329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures for the heater to register No.4 duct and the heater to register No. 1 duct.

  13. REMOVE HEATER TO REGISTER CENTER SUB DUCT
    1. Remove the 2 screws < C > and the heater to register center sub duct.

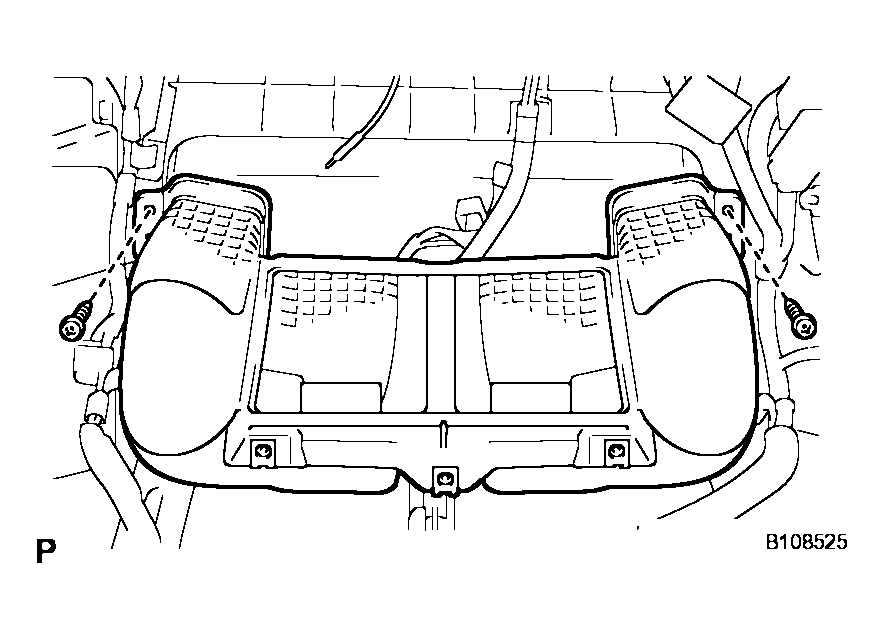

    Fig 7: Removing Heater To Register Center Sub Duct
    G04093330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE SIDE DEFROSTER NO. 1 NOZZLE DUCT
    1. Remove the screw < C > and the side defroster No. 1 nozzle duct.
  15. REMOVE SIDE DEFROSTER NO. 2 NOZZLE DUCT

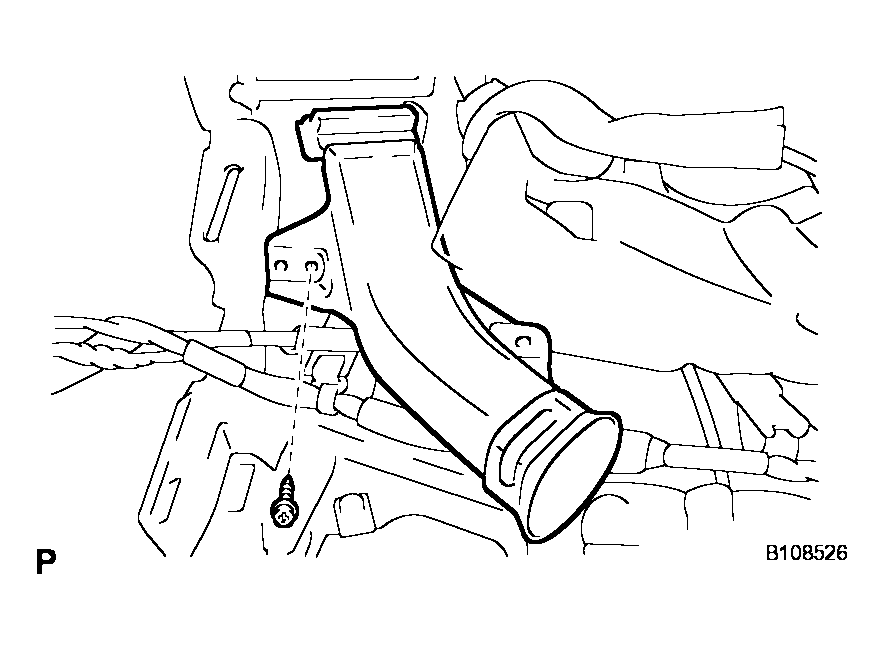

    Fig 8: Removing Side Defroster No.1 Nozzle Duct
    G04093331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures for the side defroster No.2 nozzle duct and the side defroster No.1 nozzle duct.

  16. REMOVE SIDE DEFROSTER NO. 1 NOZZLE
    1. Disengage the 2 claws and remove the side defroster No. 1 nozzle.
  17. REMOVE SIDE DEFROSTER NO. 2 NOZZLE

    HINT:

    Use the same procedures for the side defroster No.2 nozzle and the side defroster No.1 nozzle.

  18. REMOVE NETWORK GATEWAY ECU
    1. Remove the screw < C > and the network gateway ECU.
    Fig 9: Removing Side Defroster No. 1 Nozzle
    G04093332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE DEFROSTER NOZZLE NO. 1 GARNISH
    1. Disengage the 2 clips and 4 claws then remove the defroster nozzle No.1 garnish.

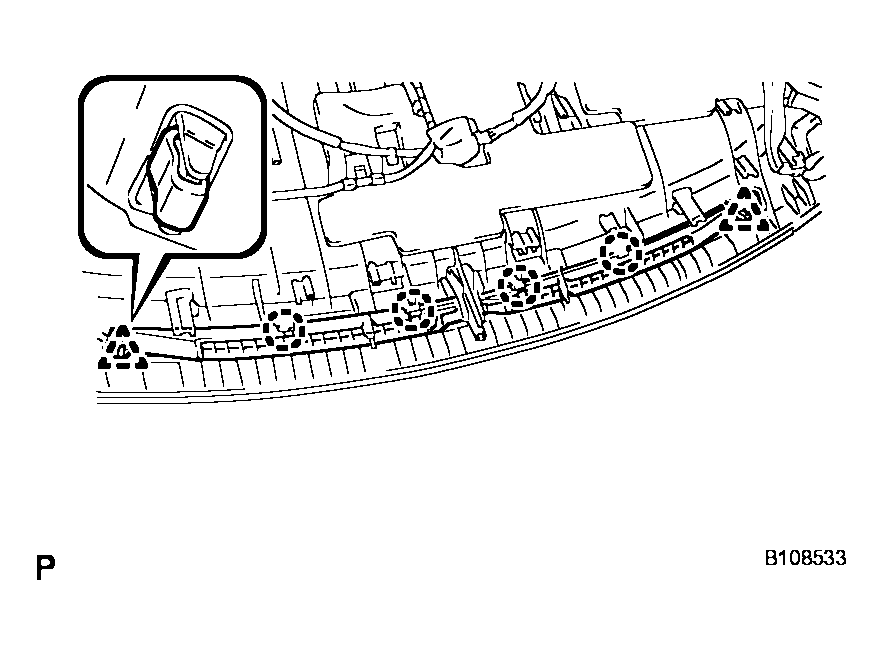

    Fig 10: Removing Defroster Nozzle No.1 Garnish
    G04093333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE INSTRUMENT PANEL BRACKET SUB-ASSEMBLY CENTER
    1. Remove the screw < C > and the instrument panel bracket sub-assembly center.

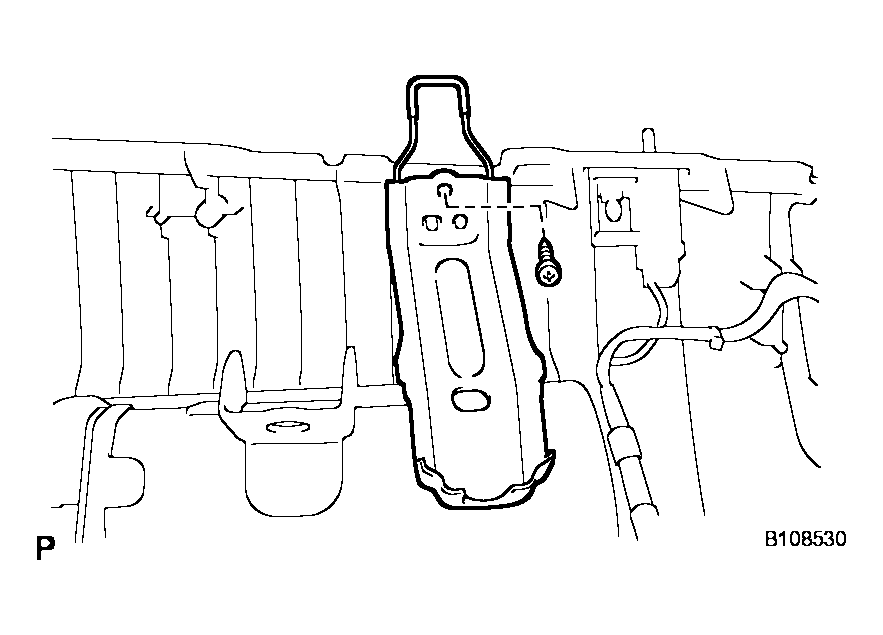

    Fig 11: Removing Instrument Panel Bracket Sub-Assembly Center
    G04093334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE GLOVE BOX LIGHT ASSEMBLY
    1. Disconnect the connector.
    2. Disengage the 2 claws and remove the glove box light assembly.
  22. REMOVE NO.2 RADIO ANTENNA CORD (w/o Navigation System) (See  REMOVAL  )
  23. REMOVE NO.2 RADIO ANTENNA CORD (w/ Navigation System) (See  REMOVAL  )
  24. REMOVE INSTRUMENT PANEL NO. 2 WIRE
    1. Remove the 2 screws.

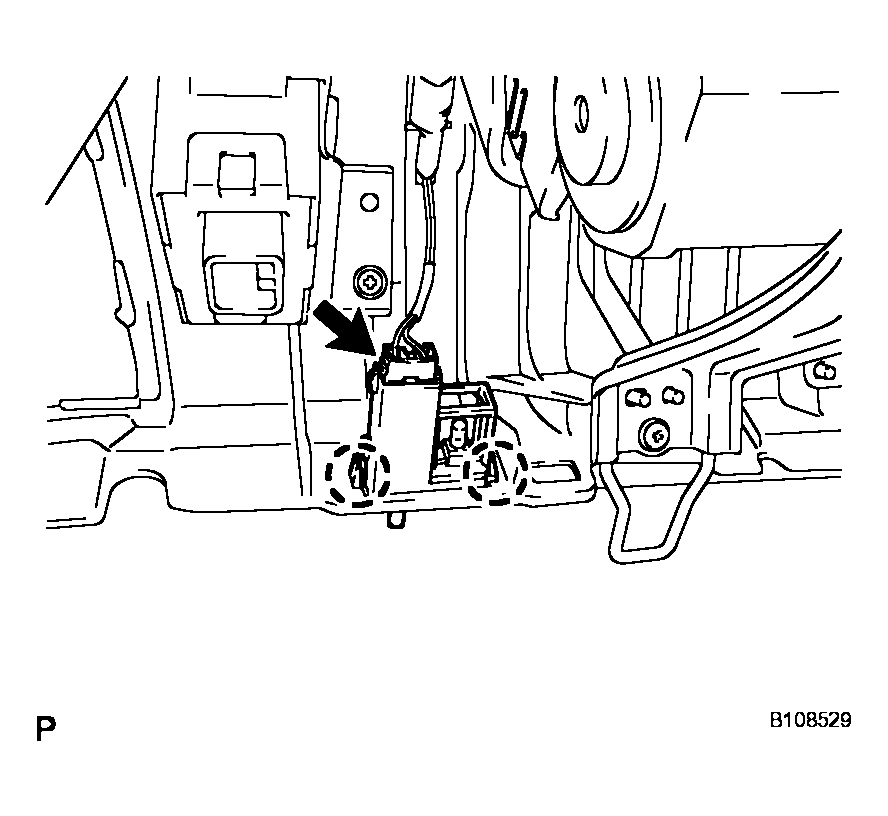

      Fig 12: Removing Glove Box Light Assembly
      G04093335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 18 clamps and remove the instrument panel No.2 wire.

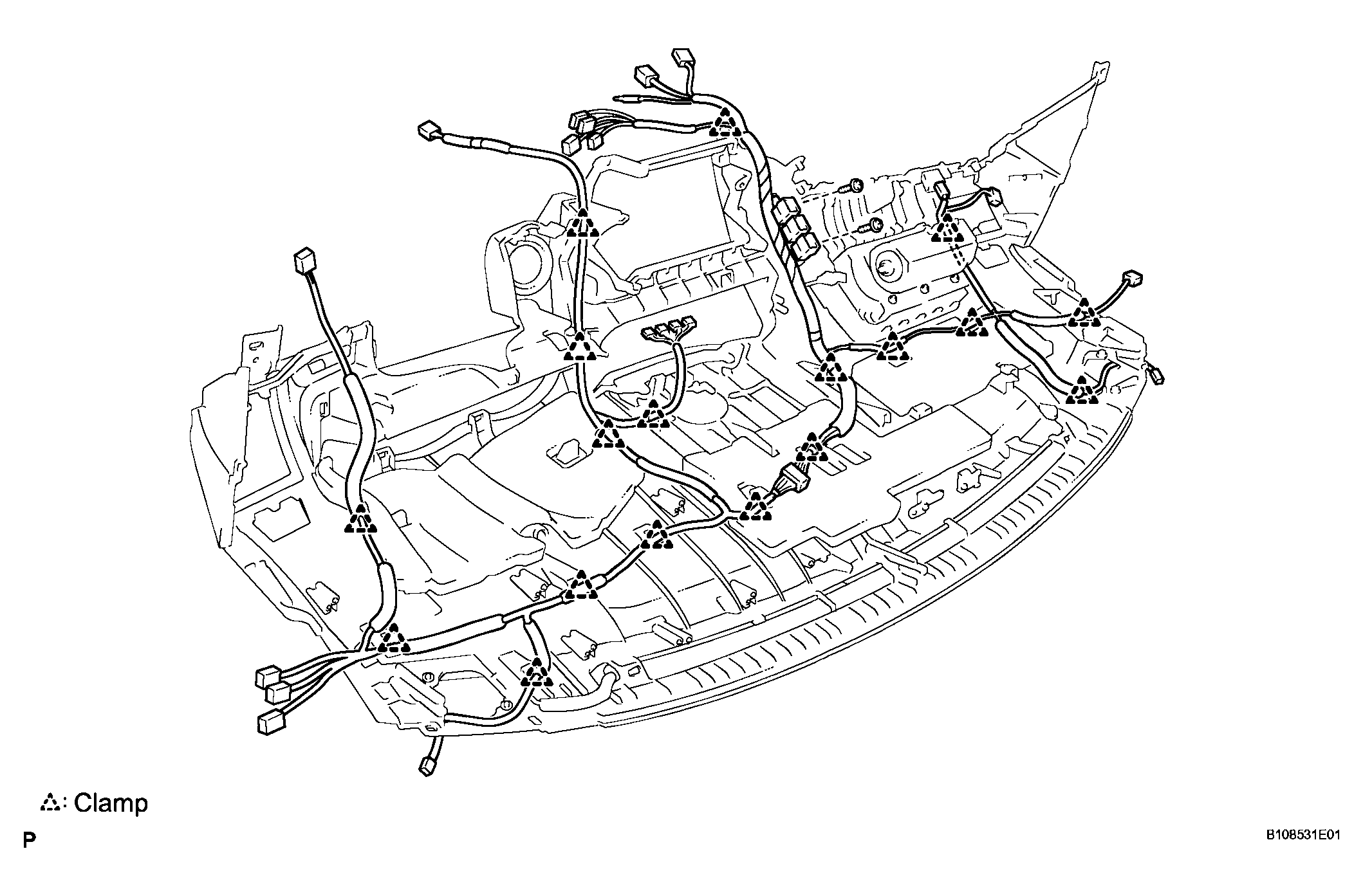

    Fig 13: Removing Instrument Panel No. 2 Wire
    G04093336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
    1. Remove the automatic light control sensor.
      NOTE: Do not pry the automatic light control sensor off from the upper position.
  26. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY (See  REMOVAL  )
    Fig 14: Removing Automatic Light Control Sensor
    G04093337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
