Section 8 (Brakes - Abs With EBD & BD & TRAC & VSC (Diagnostics)): Location

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

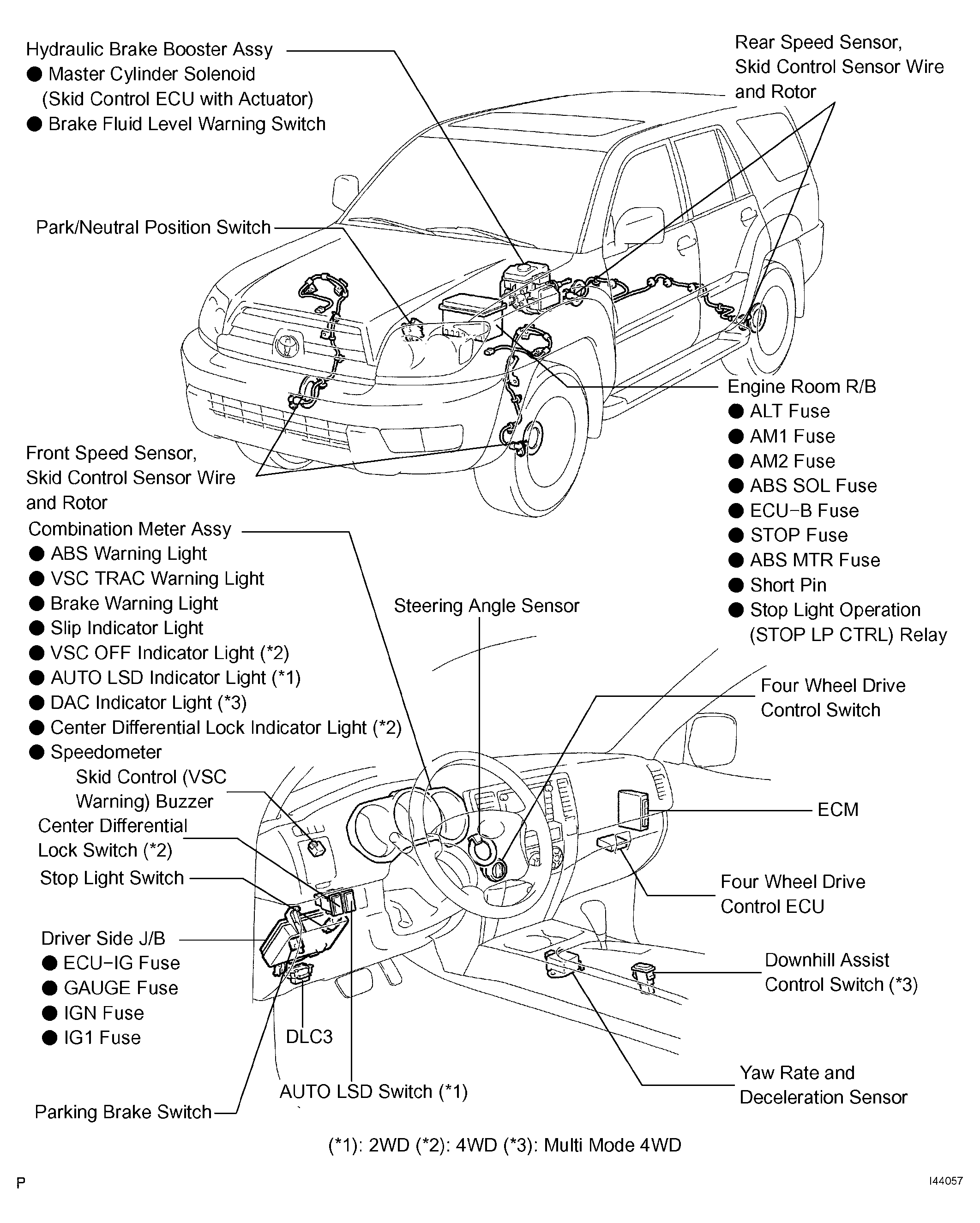

Fig 1: Identifying ABS With EBD & BA & TRAC & VSC System Components Location
G04335888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
