DTC Check/Clear

USING SST CHECK WIRE:

1. DTC check
   1. Using SST, connect terminals TC and CG of the DLC3.

      SST 09843-18040

   2. Turn the ignition switch to the ON position.
   3. Read the DTCs from the ABS and VSC TRAC warning lights on the combination meter.
      Fig 1: Identifying DLC3 Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • If no code appears, inspect the TC and CG terminal circuit, and the ABS and VSC TRAC warning light circuits.
        TROUBLE AREA REFERENCE



        Trouble Area	Reference
        TC and CG terminal circuit	TC AND CG TERMINAL CIRCUIT
        ABS warning light circuit	ABS WARNING LIGHT CIRCUIT  ABS WARNING LIGHT CIRCUIT
        VSC TRAC warning light circuit	VSC TRAC warning light circuit  VSC TRAC warning light circuit

      • As examples, refer to Fig 2 for the blinking patterns of the normal system code and trouble codes 11 and 21.

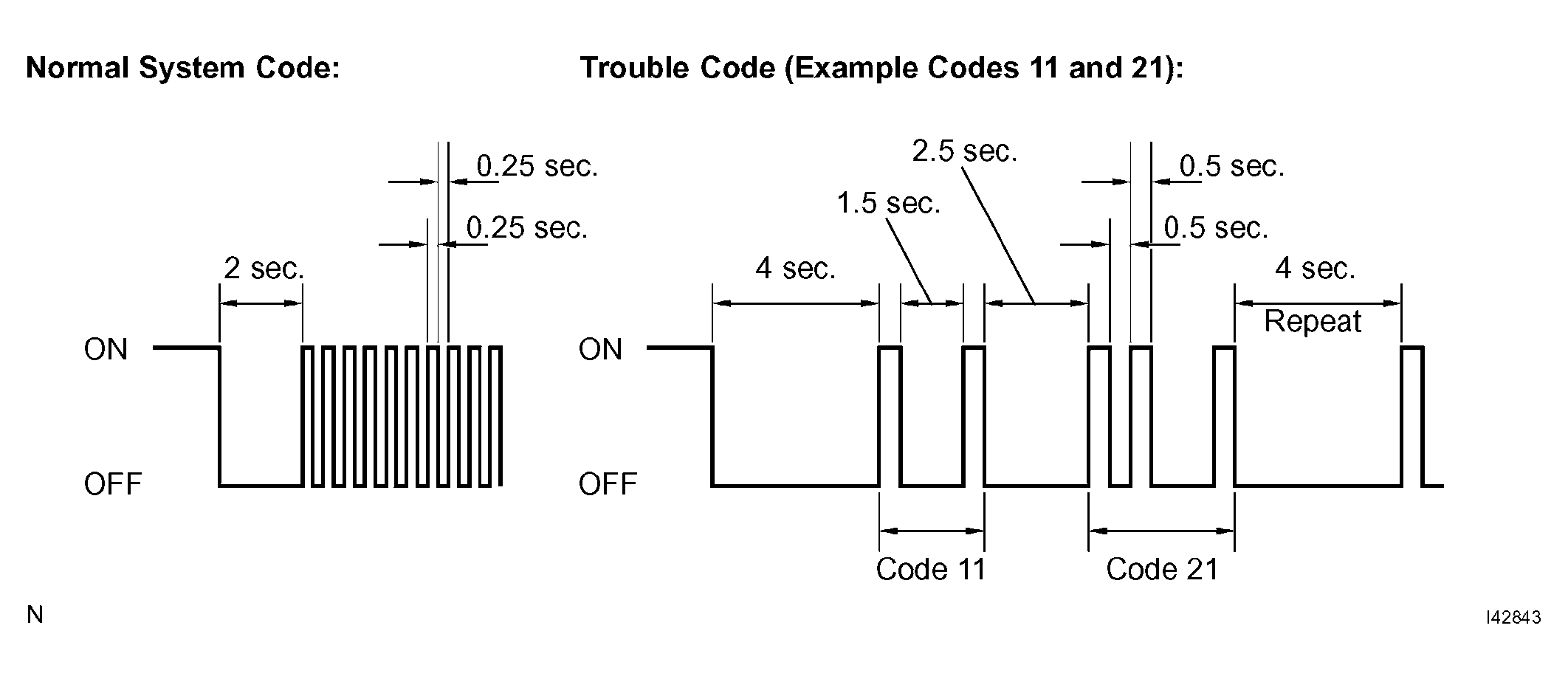

        Fig 2: Identifying ABS And VSC TRAC Warning Light Blinking Pattern

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Codes are explained in the code table on DIAGNOSTIC TROUBLE CODE TABLE
   5. After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display.

      If 2 or more DTCs are detected at the same time, the DTCs will be displayed in ascending order.

2. DTC clear
   1. Using SST, connect terminals TC and CG of the DLC3.

      SST 09843-18040

   2. Turn the ignition switch to the ON position.
      Fig 3: Identifying DLC3 Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
   4. Check that the warning light indicates the normal system code.
   5. Remove the SST from the terminals of the DLC3.

HINT:

Clearing the DTCs cannot be performed by removing the battery cable or the ECU-IG fuse.

Fig 4: Depressing Brake Pedal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

USING HAND-HELD TESTER:

1. DTC check
   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch to the ON position.
   3. Read the DTCs following the prompts on the tester screen.

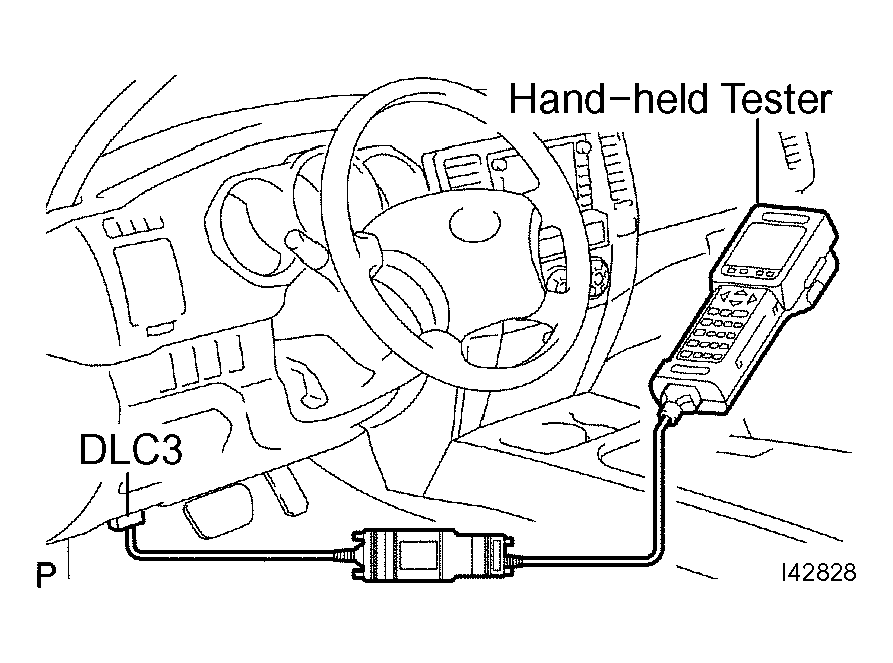

      Fig 5: Connecting Hand-Held Tester To DLC3

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. DTC clear
   1. Connect the hand-held tester to the DLC3.
   2. Turn the ignition switch to the ON position.
   3. Operate the hand-held tester to clear the codes.

HINT:

Refer to the hand-held tester operator's manual for further details.

1. Turn the ignition switch to the ON position.
2. Check that the ABS and VSC TRAC warning lights go off within approximately 3 seconds.
