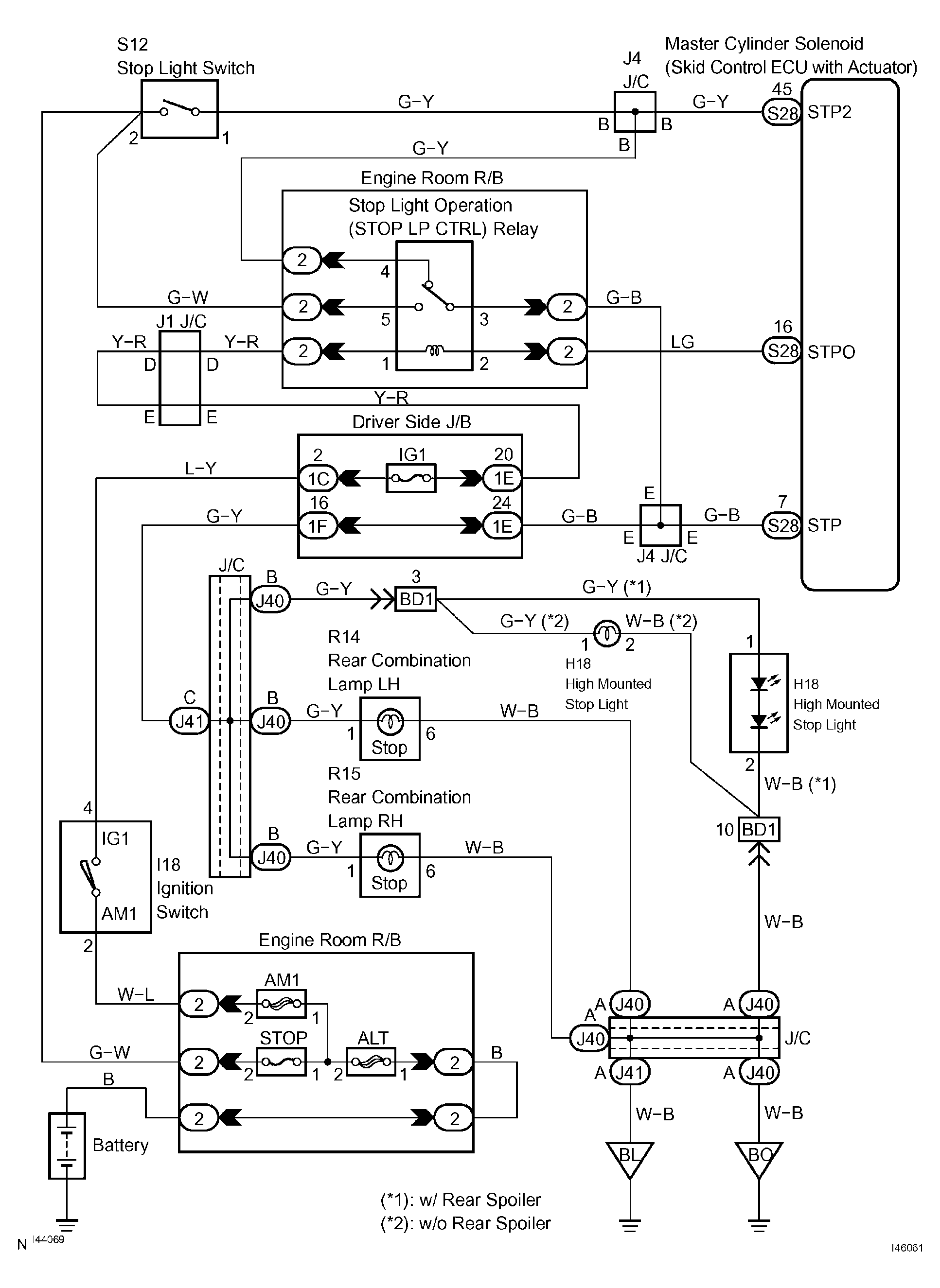

DTC C1249/49 Open Circuit In Stop Light Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
