Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When replacing the master cylinder solenoid, perform zero point calibration (See CALIBRATION  ).
  1. INSPECT DAC INDICATOR LIGHT
    1. Disconnect the skid control ECU connector.
    2. Ground terminal HDCW of the skid control ECU.
    3. Turn the ignition switch to the ON position.
    4. Check that the DAC indicator light comes on.

      OK: DAC indicator light comes on.

    NG: Go to step   2

    OK: REPLACE MASTER CYLINDER SOLENOID (SEE  OVERHAUL  )

  2. CHECK HARNESS AND CONNECTOR (BETWEEN SKID CONTROL ECU AND COMBINATION METER) (See  HOW TO PROCEED WITH TROUBLESHOOTING  )
    1. Disconnect the combination meter connector.
    2. Measure the resistance according to the value(s) in TERMINALS RESISTANCE SPECIFICATION TABLE .

      Standard:

      TERMINALS RESISTANCE SPECIFICATION TABLE

      Tester Connection Specified Condition
      S28-33 (HDCW) - C11-10 Below 1
      S28-33 (HDCW) - Body ground 10 k or higher

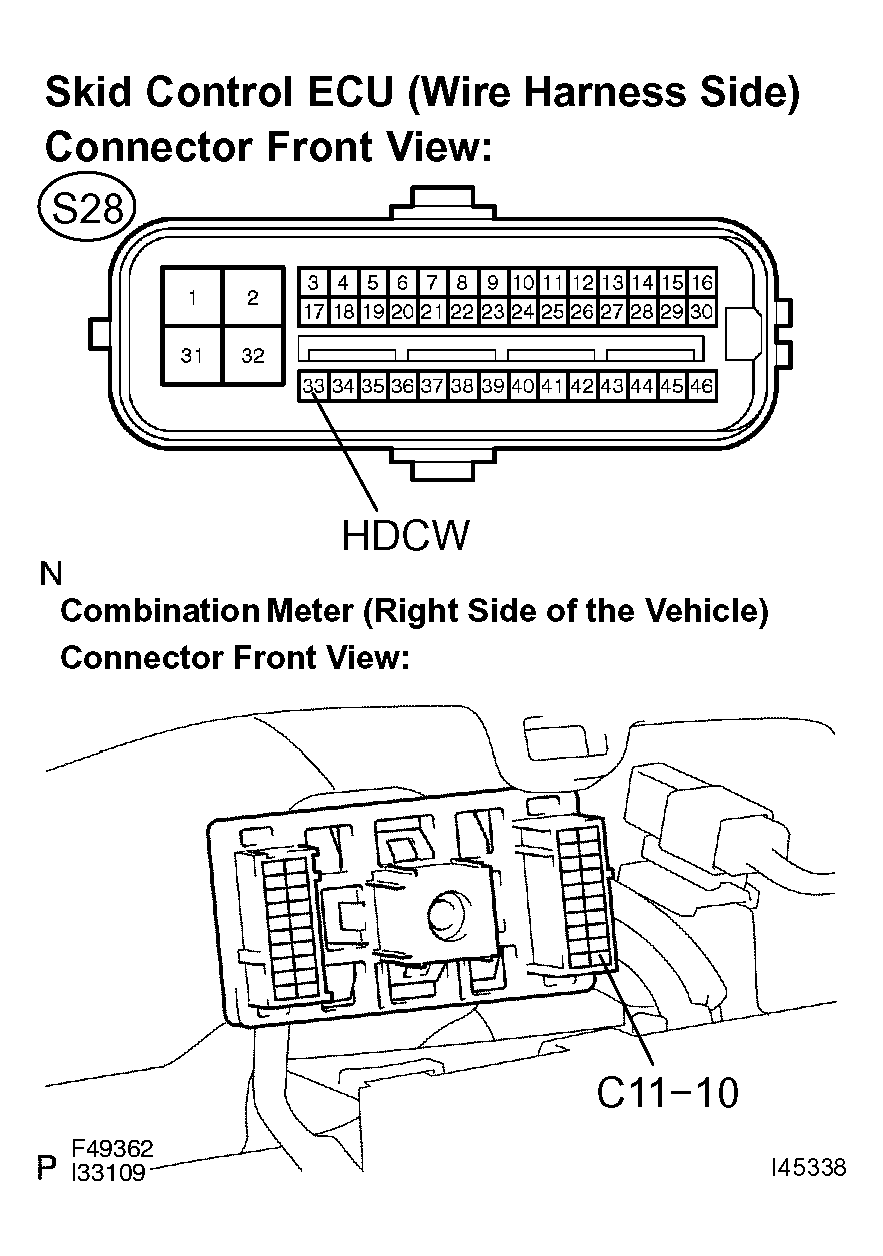

      Fig 1: Identifying Skid Control ECU Connector & Combination Meter Connector
      G04336061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. INSPECT COMBINATION METER ASSY
    1. Check the combination meter system (See HOW TO PROCEED WITH TROUBLESHOOTING ).

    NG: REPLACE COMBINATION METER ASSY (SEE  COMBINATION METER ASSY  )

    OK: Go to next step

  4. INSPECT SKID CONTROL ECU (HDCS TERMINAL)
    1. Disconnect the skid control ECU connector.
    2. Measure the resistance according to the value(s) in TERMINALS RESISTANCE SPECIFICATION TABLE .

      Standard:

      TERMINALS RESISTANCE SPECIFICATION TABLE

      Tester Connection Condition Specified Condition
      S28-44 (HDCS) - Body ground DAC switch is pushed in Below 1

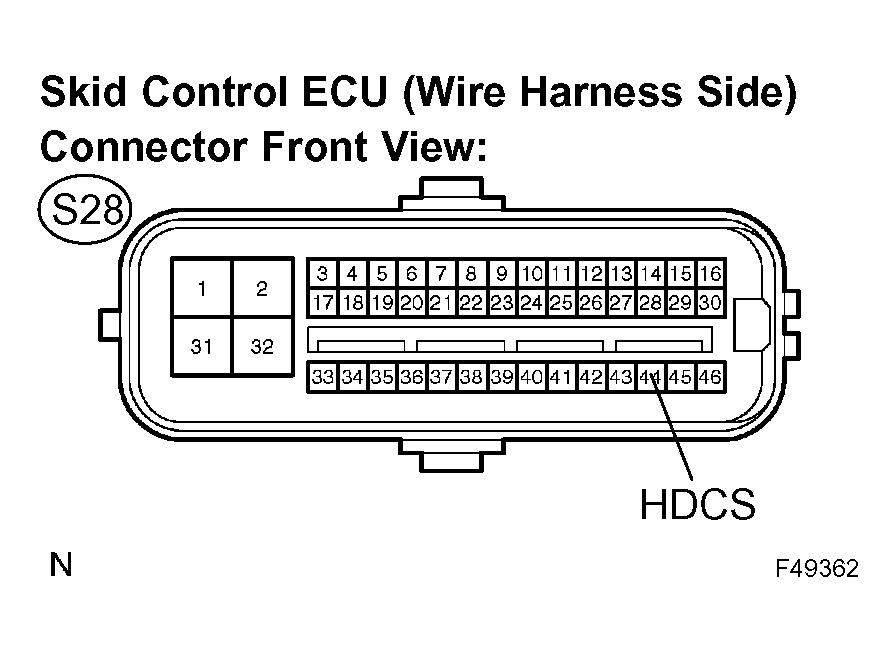

      Fig 2: Identifying Skid Control ECU Connector Terminals
      G04336062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to step   5

    OK: REPLACE MASTER CYLINDER SOLENOID (See  OVERHAUL  )

  5. INSPECT DOWNHILL ASSIST CONTROL SWITCH
    1. Disconnect the DAC switch connector.
    2. Measure the resistance according to the value(s) in TERMINALS RESISTANCE SPECIFICATION TABLE .

      Standard:

      TERMINALS RESISTANCE SPECIFICATION TABLE

      Tester Connection Condition Specified Condition
      D5-3 - D5-4 Switch is pushed in Below 1
      D5-3 - D5-4 Switch is not pushed in 10 k or higher
      Fig 3: Inspecting Downhill Assist Control Switch
      G04336063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE DOWNHILL ASSIST CONTROL SWITCH

    OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR (BETWEEN SKID CONTROL ECU, BODY GROUND AND DOWNHILL ASSIST CONTROL SWITCH) (See  HOW TO PROCEED WITH TROUBLESHOOTING  )
    1. Measure the resistance according to the value(s) in TERMINALS RESISTANCE SPECIFICATION TABLE .

      Standard:

      TERMINALS RESISTANCE SPECIFICATION TABLE

      Tester Connection Specified Condition
      S28-44 (HDCS) - D5-3 Below 1
      S28-44 (HDCS) - Body ground 10 k or higher
      D5-4 - Body ground Below 1

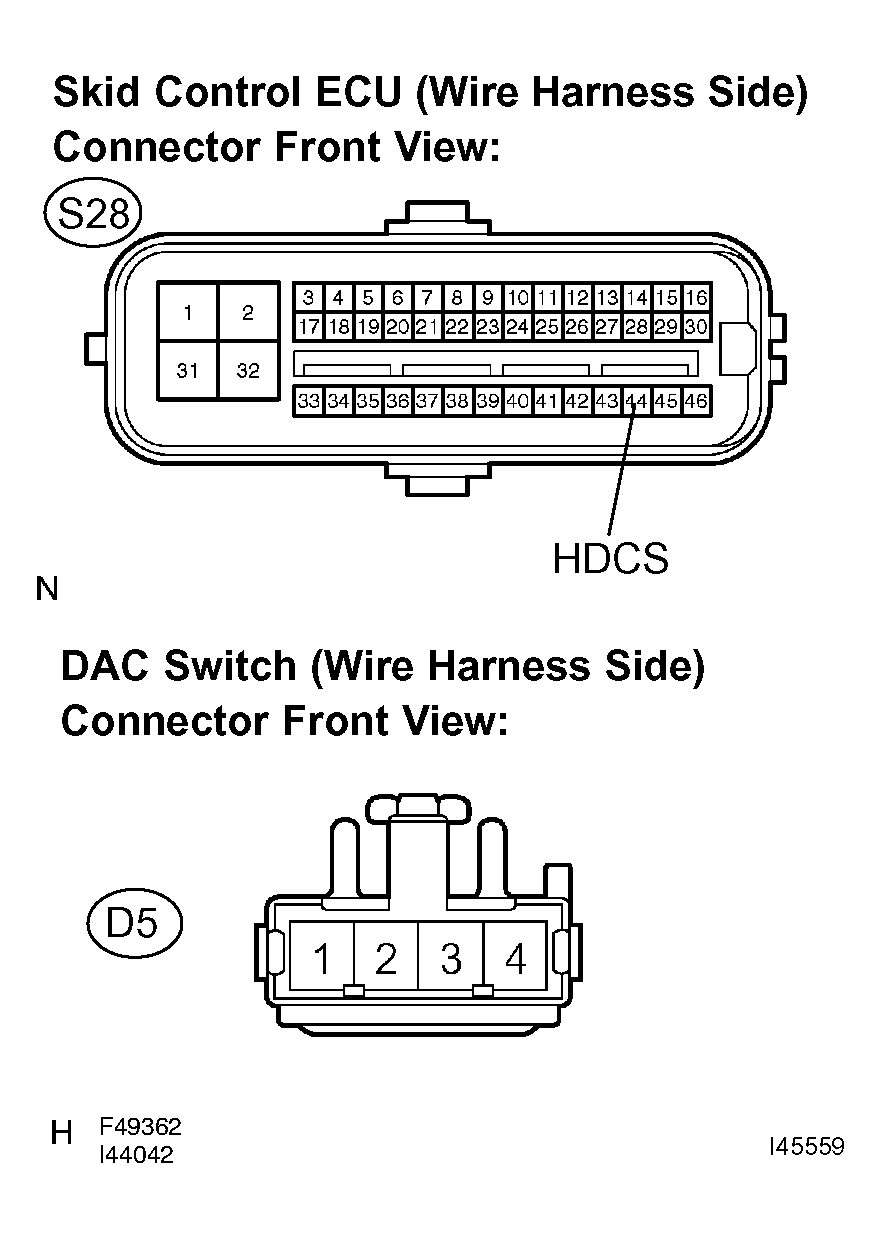

      Fig 4: Identifying Skid Control ECU Connector & DAC Switch Connectors
      G04336064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: END
