Rear Axle Shaft LH: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR WHEEL
  2. REMOVE SPEED SENSOR REAR LH (See  SPEED SENSOR REAR LH  )
  3. SEPARATE REAR DISC BRAKE CALIPER ASSY LH (See  OVERHAUL  )
  4. REMOVE REAR DISC
  5. REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING (See  OVERHAUL  )
  6. REMOVE PARKING BRAKE SHOE STRUT COMPRESSION SPRING (See  OVERHAUL  )
  7. REMOVE PARKING BRAKE SHOE STRUT LH (See  OVERHAUL  )
  8. REMOVE PARKING BRAKE SHOE (See  OVERHAUL  )
  9. REMOVE REAR AXLE SHAFT W/BACKING PLATE
    1. Remove the 4 nuts and rear axle shaft with backing plate.
    2. Remove a O-ring.
      Fig 1: Locating Nuts On Rear Axle Shaft With Backing Plate
      G04338490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR AXLE SHAFT LH OIL SEAL
    1. Using SST, remove the rear axle shaft oil seal.

      SST 09308-00010

      Fig 2: Removing Rear Axle Shaft Oil Seal Using SST
      G04338491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR AXLE SHAFT LH SNAP RING
    1. Using a snap ring expander, remove the snap ring.
      Fig 3: Removing Snap Ring Using Snap Ring Expander
      G04338492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR AXLE SHAFT LH
    1. Using SST and press, remove the rear axle shaft.

      SST 09521-25011, 09521-25022

      Fig 4: Removing Rear Axle Shaft Using SST & Press
      G04338493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR AXLE BEARING RETAINER INNER LH
    1. Remove the rear axle bearing retainer inner LH from the rear axle bearing assy LH.
  14. REMOVE REAR AXLE SHAFT LH WASHER
    1. Remove the rear axle shaft plate washer from the rear axle bearing assy LH.
  15. REMOVE PARKING BRAKE PLATE TO REAR AXLE HOUSING BOLT
    1. Attach 4 nuts to the parking brake plate to rear axle housing bolts.
    2. Using a hammer, remove the 4 parking brake plate to rear axle housing bolts and rear axle bearing assy.
      NOTE: Do not reuse the nuts previously removed from the vehicle.
      Fig 5: Removing Parking Brake Plate To Rear Axle Housing Bolts
      G04338494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR AXLE HUB & BEARING ASSY LH
  17. REMOVE REAR AXLE LH HUB BOLT
    1. Using SST, remove the 6 hub bolts.

      SST 09650-17011

      Fig 6: Removing Hubs Bolt Using SST
      G04338495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE BRAKE DRUM OIL LH DEFLECTOR
  19. REMOVE BRAKE DRUM OIL DEFLECTOR GASKET LH
  20. REMOVE REAR AXLE BEARING OIL SEAL
    1. Grind the rear axle bearing inner race surface using a grinder, then chisel them out with a chisel.
    2. Remove the rear axle shaft oil seal from the rear axle shaft.
      Fig 7: Removing Rear Axle Bearing Oil Seal
      G04338496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSPECT REAR AXLE SHAFT LH

    Maximum runout:

    Shaft runout: 1.5 mm (0.0591 in.)

    Flange runout: 0.05 mm (0.0020 in.)

    If the rear axle shaft or flange is damaged or worn, or of runout of greater than the maximum, replace the rear axle shaft.

    Fig 8: Inspecting Rear Axle Shaft
    G04338497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL REAR AXLE LH HUB BOLT
    1. Install a new deflector gasket and deflector to the rear axle shaft.

      HINT:

      Align the 2 notches.

      Fig 9: Installing New Deflector Gasket & Deflector To Rear Axle Shaft
      G04338498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pass the 6 bolts through the axle hub.
    3. Pass a washer plate as shown in Fig 10, through the hub bolt, and install the hub bolt as tightening the hub nut.

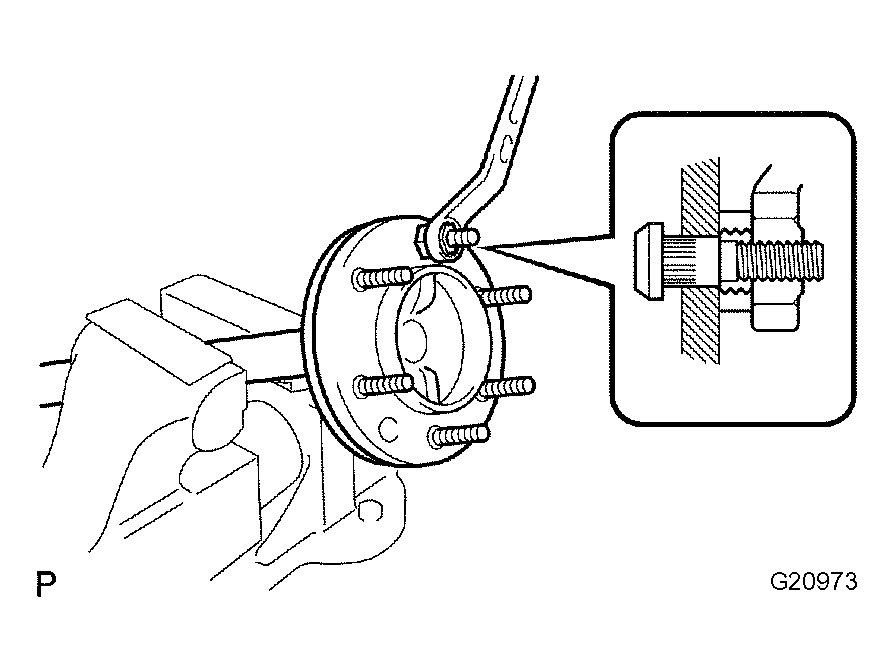

      Fig 10: Passing Washer Plate Through Hub Bolt
      G04338499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL REAR AXLE HUB & BEARING ASSY LH
  24. INSTALL PARKING BRAKE PLATE TO REAR AXLE HOUSING BOLT
    1. Position the backing plate on a rear axle bearing assy LH, and install the 4 parking brake plate to rear axle housing bolts using 2 socket wrenches and a press.
      Fig 11: Installing Parking Brake Plate To Rear Axle Housing Bolt
      G04338500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL REAR AXLE SHAFT LH WASHER
    1. Install the rear axle shaft plate washer to the rear axle shaft LH.
  26. INSTALL REAR AXLE BEARING RETAINER INNER LH
    1. Install a new rear axle bearing retainer inner LH to the rear axle shaft LH.
  27. INSTALL REAR AXLE SHAFT LH
    1. Using SST and a press, install the rear axle shaft LH to the rear axle bearing assy LH.

      SST 09521-25011

      Fig 12: Installing Rear Axle Shaft To Rear Axle Bearing Assy Using SST & Press
      G04338501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL REAR AXLE SHAFT LH SNAP RING
    1. Using a snap ring expander, install a new rear axle shaft snap ring.
      Fig 13: Installing New Rear Axle Shaft Snap Ring Using Snap Ring Expander
      G04338502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL REAR AXLE SHAFT LH OIL SEAL
    1. Using SST and a hammer, install a new axle shaft oil seal.

      SST 09950-60020 (09951-00770), 09950-70010 (09951-07150)

      Fig 14: Installing New Rear Axle Shaft Oil Seal Using SST & Hammer
      G04338503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL REAR AXLE SHAFT W/ BACKING PLATE
    1. Install a new O-ring.
    2. Install the rear axle shaft with backing plate with the 4 nuts.

      Torque: 123 N.m (1,254 kgf.cm, 91 ft.lbf)

      Fig 15: Installing Rear Axle Shaft With Backing Plate With Nuts
      G04338504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL PARKING BRAKE SHOE (See  OVERHAUL  )
  32. INSTALL PARKING BRAKE SHOE STRUT LH (See  OVERHAUL  )
  33. INSTALL PARKING BRAKE SHOE STRUT COMPRESSION SPRING (See  OVERHAUL  )
  34. INSTALL PARKING BRAKE SHOE RETURN TENSION SPRING (See  OVERHAUL  )
  35. INSTALL REAR DISC
  36. CONNECT REAR DISC BRAKE CALIPER ASSY LH (See  OVERHAUL  )
  37. INSTALL SPEED SENSOR REAR LH (See  SPEED SENSOR REAR LH  )
  38. FILL RESERVOIR WITH BRAKE FLUID
  39. BLEED MASTER CYLINDER
  40. BLEED BRAKE LINE
  41. INSPECT BRAKE FLUID LEVEL IN RESERVOIR
  42. CHECK BRAKE FLUID LEAKAGE
  43. INSTALL REAR WHEEL

    Torque: 112 N.m (1,142 kgf.cm, 83 ft.lbf)

  44. INSPECT AND ADJUST PARKING BRAKE LEVER TRAVEL (See  ADJUSTMENT  )
  45. CHECK ABS SPEED SENSOR SIGNAL (See  TEST MODE PROCEDURE  )
