Front Axle Hub Sub-ASSY LH: Replacement

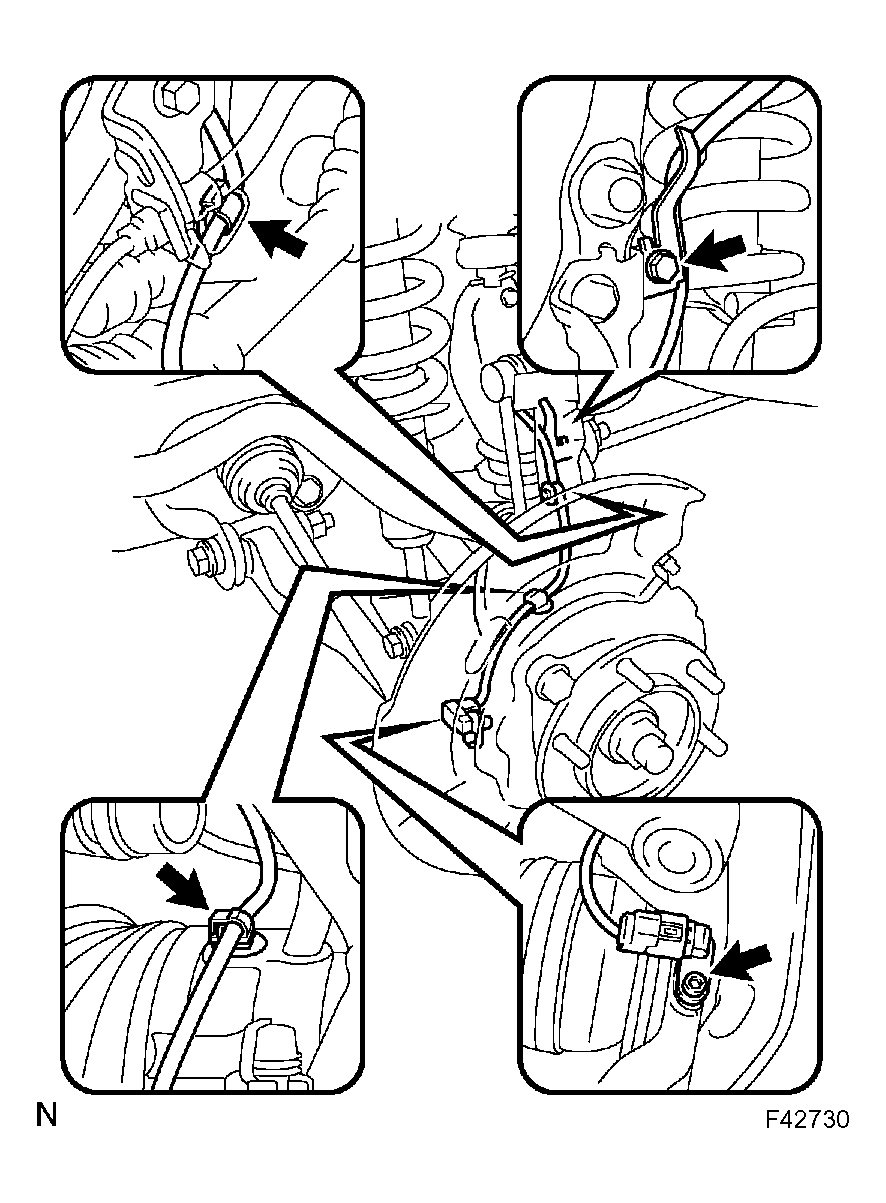

1. Using a hexagon wrench, separate the speed sensor front LH.

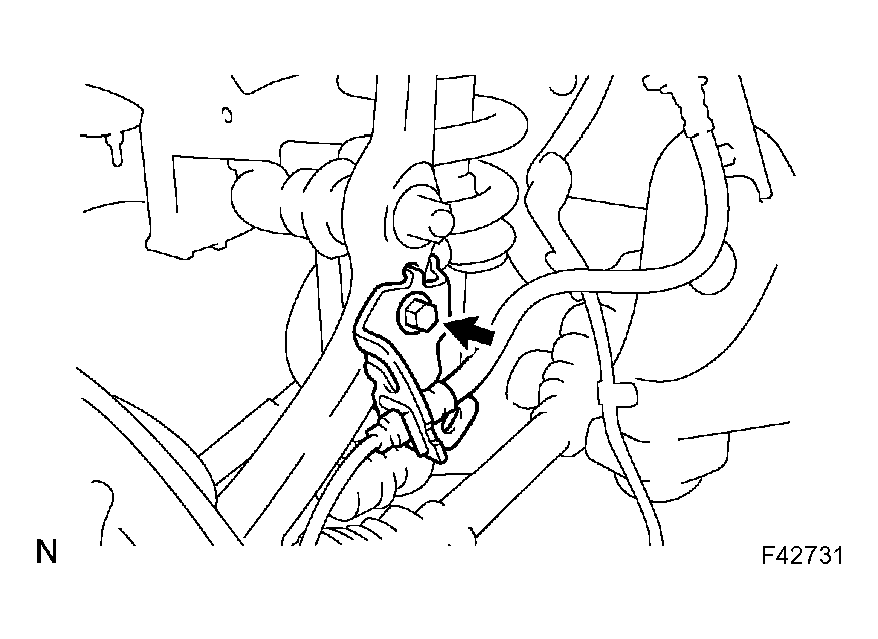

2. Disconnect the 2 clamps.
3. Remove the bolt and separate the speed sensor wire harness from the steering knuckle.
   Fig 1: Locating Bolts For Separating Speed Sensor Wire Harness From Steering Knuckle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt and separate the brake tube bracket from the steering knuckle.
2. Using SST, disconnect the brake tube from the front disc brake caliper assy LH.

   SST 09023-00101

   Fig 2: Locating Bolt For Separating Brake Tube Bracket From Steering Knuckle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts and front disc brake caliper assy LH.
   Fig 3: Locating Bolts On Front Disc Brake Caliper Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver and a hammer, remove the front axle hub grease cap LH.
   NOTE: Do not damage the axle hub.
   Fig 4: Removing Front Axle Hub Grease Cap

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the cotter pin and a lock cap.
2. Remove the front axle hub LH nut.
   Fig 5: Removing Front Axle Hub LH Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

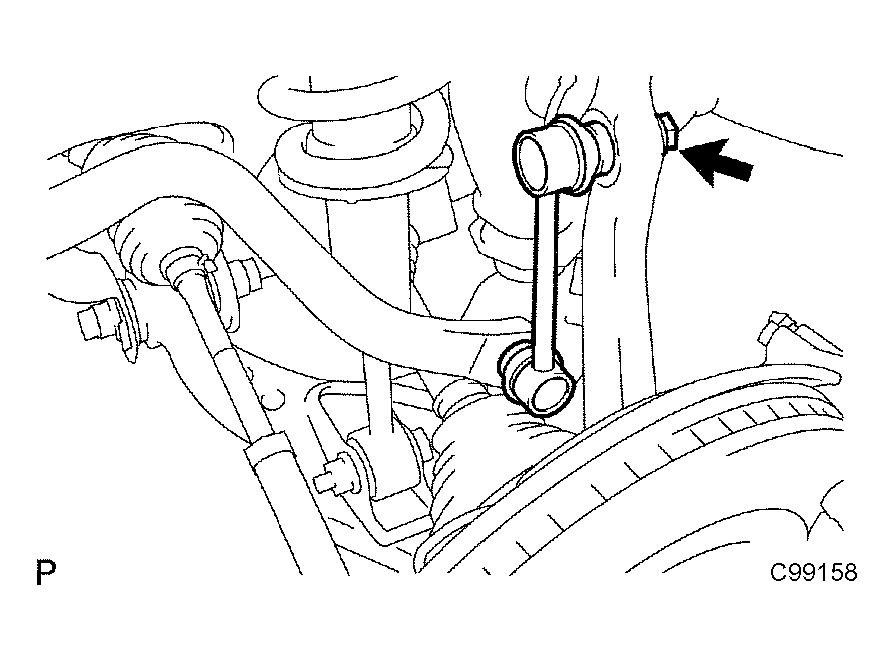

1. Remove the nut and separate the stabilizer link assy LH from the steering knuckle.

   HINT:

   If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.

   Fig 6: Locating Nut For Separating Stabilizer Link Assy LH From Steering Knuckle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

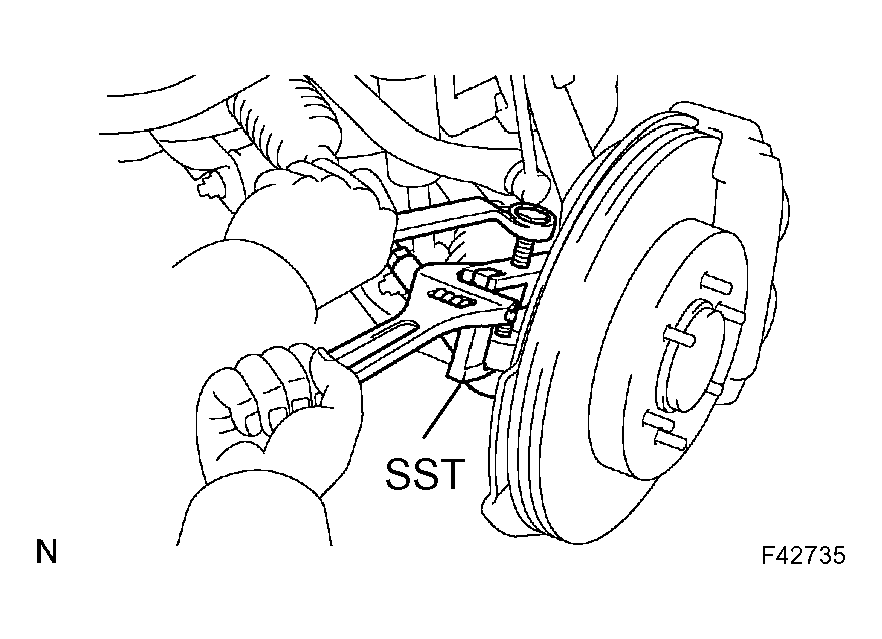

1. Remove the cotter pin and nut.
2. Using SST, separate the tie rod end sub-assy LH from the steering knuckle.

   SST 09628-62011

   Fig 7: Separating Tie Rod End Sub-Assy From Steering Knuckle Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts and separate the front suspension arm sub-assy lower No.1 LH from the steering knuckle.
   Fig 8: Locating Bolts For Separating Front Suspension Arm Sub-Assy Lower No.1 LH From Steering Knuckle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

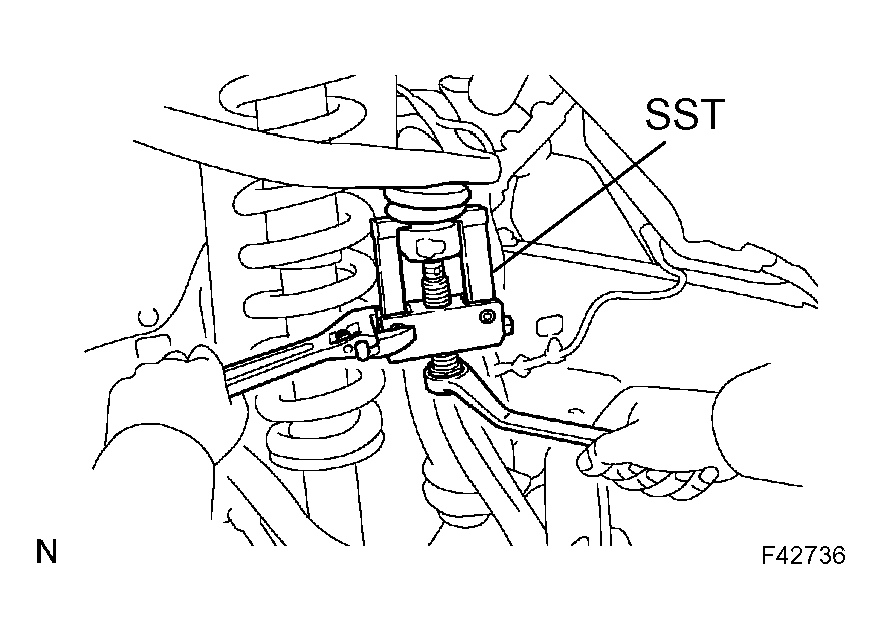

1. Remove the cotter pin and nut.
2. Using SST, separate the steering knuckle from the front suspension upper arm assy LH.

   SST 09628-62011

   Fig 9: Separating Steering Knuckle From Front Suspension Upper Arm Assy LH Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. 4WD Drive Type:

   Using a plastic hammer, separate the front axle hub from the front drive shaft.

2. Remove the front axle hub sub-assy LH.

1. Using a screwdriver and hammer, remove the knuckle grease retainer cap inner.
   Fig 10: Removing Knuckle Grease Retainer Cap Inner Using Screwdriver & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver and hammer, remove the steering knuckle LH oil seal.
   Fig 11: Removing Steering Knuckle LH Oil Seal Using Screwdriver & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a hammer, unstake the adjusting nut.

   SST 09930-00010

   Fig 12: Unstaking Adjusting Nut Using SST & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the adjusting nut.

   SST 09318-12010

   Fig 13: Removing Adjusting Nut Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 bolts and axle hub from the steering knuckle.
2. Remove the O-ring from the axle hub.
   Fig 14: Locating Bolts On Front Axle Hub

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Fix the front axle hub soft in vise.
2. Using SST, remove the bearing.

   SST 09710-30021 (09710-03051), 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04061, 09957-04010, 09958-04011)

   Fig 15: Removing Bearing Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the front axle hub LH spacer.
   Fig 16: Removing Front Axle Hub Spacer Using Screwdriver

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a brass bar and a hammer, install the new front axle hub LH spacer.
   NOTE: Do not damage the spacer.
   Fig 17: Installing New Front Axle Hub Spacer Using Brass Bar & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a press, install the new bearing to the front axle hub.

   SST 09649-17010

   Fig 18: Installing New Bearings To Front Axle Hub Using SST & Press

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply the MP grease to a new O-ring.
2. Install the new O-ring to the axle hub.
3. Install the dust cover, axle hub to the steering knuckle with the 4 bolts.

   Torque: 80 N.m (816 kgf.cm, 59 ft.lbf)

   Fig 19: Installing Dust Cover & Axle To Steering Knuckle With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, install a new adjusting nut.

   Torque: 275 N.m (2,804 kgf.cm, 203 ft.lbf)

   SST 09318-12010

   Fig 20: Installing New Adjusting Nut Using SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST and a press, install a new steering knuckle LH oil seal.

   SST 09527-17011, 09950-70010 (09951-07100), 09951-01000

   Fig 21: Installing New Steering Knuckle Oil Seal Using SST & Press

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a brass bar and a hammer, install a new knuckle grease retainer cap inner.
   NOTE: Do not damage the knuckle grease retainer cap inner.
   Fig 22: Installing New Knuckle Grease Retainer Cap Inner Using Brass Bar & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   F43605

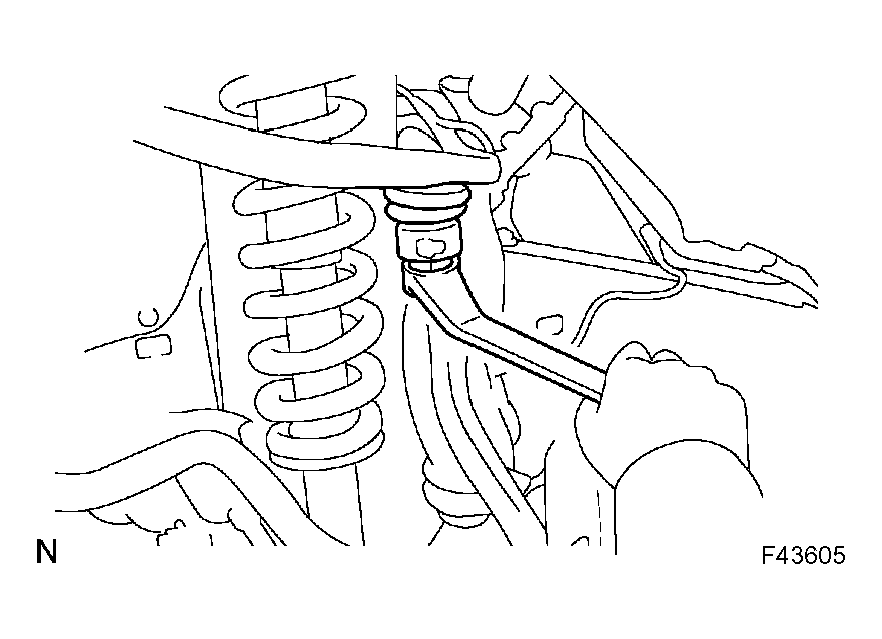

1. Install the front suspension upper arm assy LH with a nut.

   Torque: 110 N.m (1,122 kgf.cm, 81 ft.lbf)

2. Install a new cotter pin.
   Fig 23: Installing Front Suspension Upper Arm Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front suspension arm sub-assy lower No.1 LH with the 2 bolts.

   Torque: 160 N.m (1,630 kgf.cm, 118 ft.lbf)

   Fig 24: Installing Front Suspension Arm Sub-Assy Lower No.1 LH With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the tie rod end sub-assy LH with a nut.

   Torque: 91 N.m (928 kgf.cm, 67 ft.lbf)

2. Install a new cotter pin.
   Fig 25: Installing Tie Rod End Sub-Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

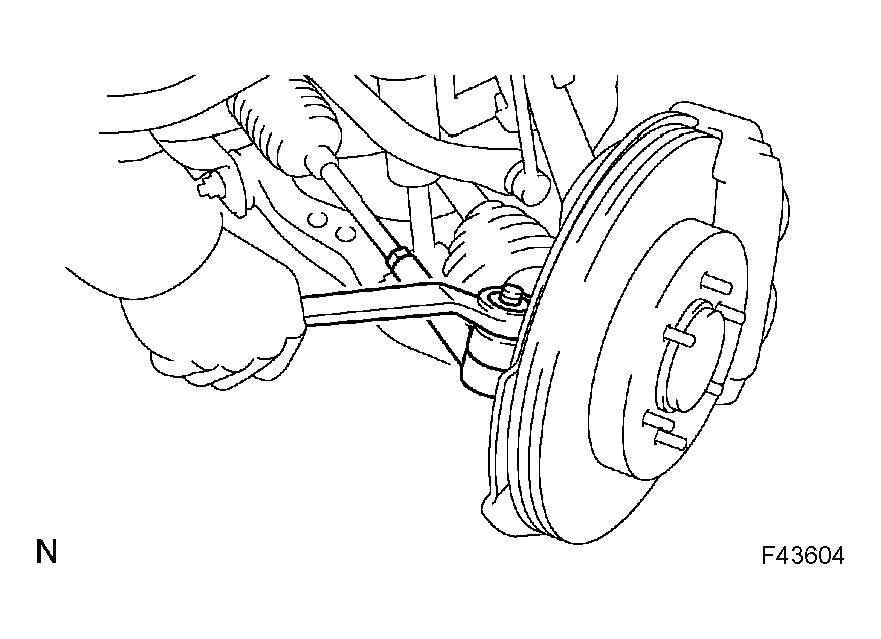

1. Install the stabilizer link with a nut to the steering knuckle.

   Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)

   HINT:

   If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.

   Fig 26: Installing Stabilizer Link With Nut To Steering Knuckle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the hub nut.

   Torque: 235 N.m (2,396 kgf.cm, 173 ft.lbf)

2. Install the adjusting cap and cotter pin.
   Fig 27: Installing Hub Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front disc brake caliper assy LH with the 2 bolts.

   Torque: 123 N.m (1,254 kgf.cm, 91 ft.lbf)

   Fig 28: Installing Front Disc Brake Caliper Assy LH With 2 Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the brake tube bracket to the steering knuckle with a bolt.

   Torque: 29 N.m (296 kgf.cm, 21 ft.lbf)

3. Using SST, connect the brake tube to the disc brake caliper assy.

   SST 09023-00101

   Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

   Fig 29: Installing Brake Tube Bracket To Steering Knuckle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the speed sensor wire harness to the steering knuckle with a bolt.

   Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)

2. Connect the 2 clips.
3. Using a hexagon wrench, install the speed sensor with the bolt.

   Torque: 8.3 N.m (85 kgf.cm, 73 in.lbf)

   Fig 30: Installing Speed Sensor Wire Harness To Steering Knuckle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 112 N.m (1,142 kgf.cm, 83 ft.lbf)
