W/MASTER CYLINDER BRAKE BOOSTER ASSY (W/VSC) (From August, 2004): Components

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Brake Master Cylinder Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Brake Master Cylinder Components (2 Of 3)

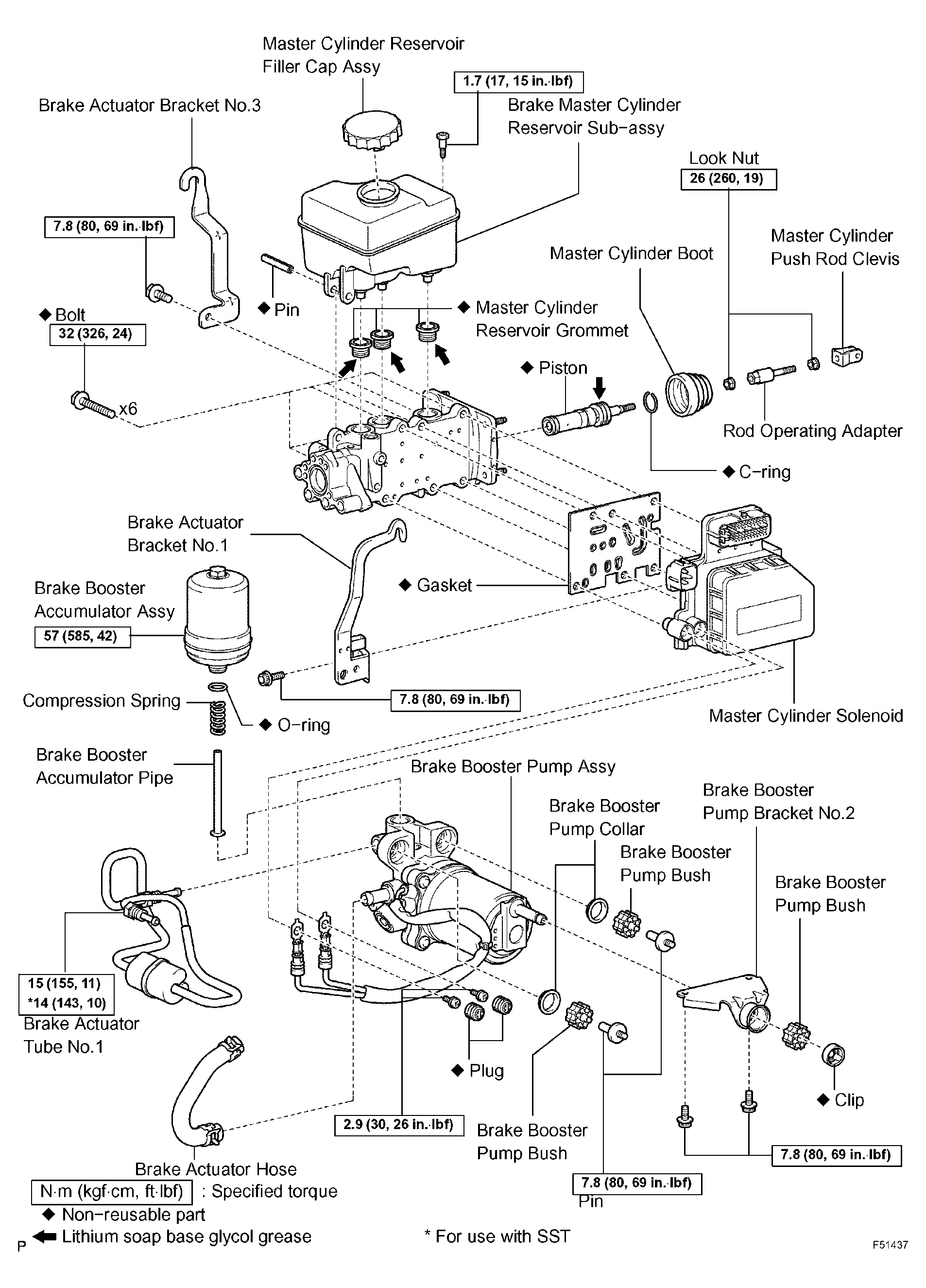

Fig 3: Identifying Brake Master Cylinder Components (3 Of 3)
