Instr PNL Pass L/Door Airbag ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. SEE  PRECAUTION
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE STEERING WHEEL COVER LOWER NO.2 (SEE  REPLACEMENT   )
  5. REMOVE STEERING WHEEL COVER LOWER NO.3 (SEE  REPLACEMENT   )
  6. REMOVE HORN BUTTON ASSY (SEE  REPLACEMENT   )
  7. REMOVE STEERING WHEEL ASSY (SEE  OVERHAUL  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  8. REMOVE STEERING COLUMN COVER LWR (SEE  SPIRAL CABLE SUB-ASSY   )
  9. REMOVE STEERING COLUMN COVER UPR (SEE  SPIRAL CABLE SUB-ASSY   )
  10. DISCONNECT PASSENGER AIRBAG CONNECTOR

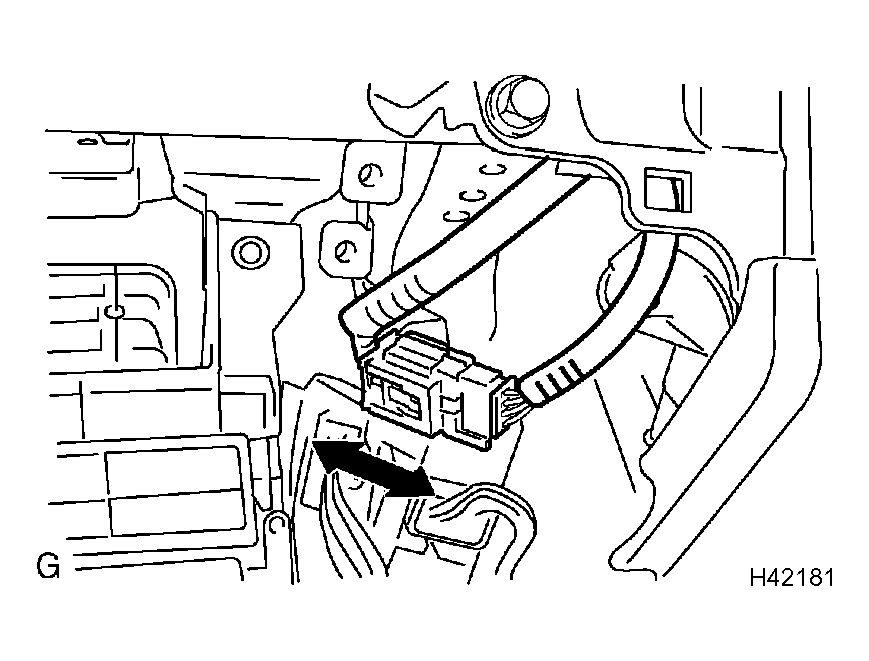

    Fig 1: Disconnecting Passenger Airbag Connector
    G04331860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
  12. REMOVE DEFROSTER NOZZLE ASSY
  13. REMOVE HEATER TO REGISTER DUCT NO.2
  14. REMOVE INSTR PNL PASS L/DOOR AIRBAG ASSY
    1. Disengage the 3 clamps.

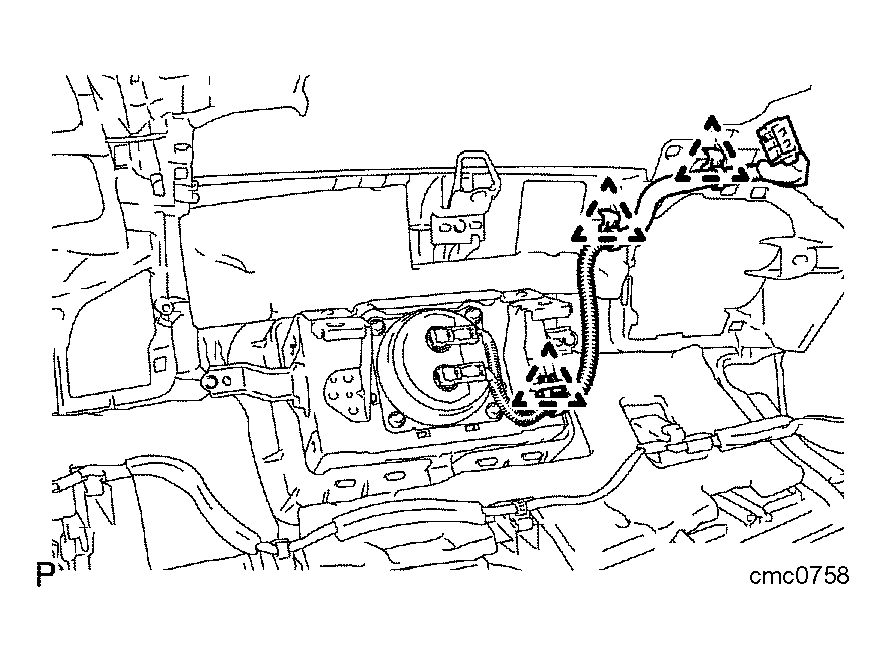

      Fig 2: Disengaging Clamps
      G04331861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws and the instrument panel pass l/ door airbag assy.

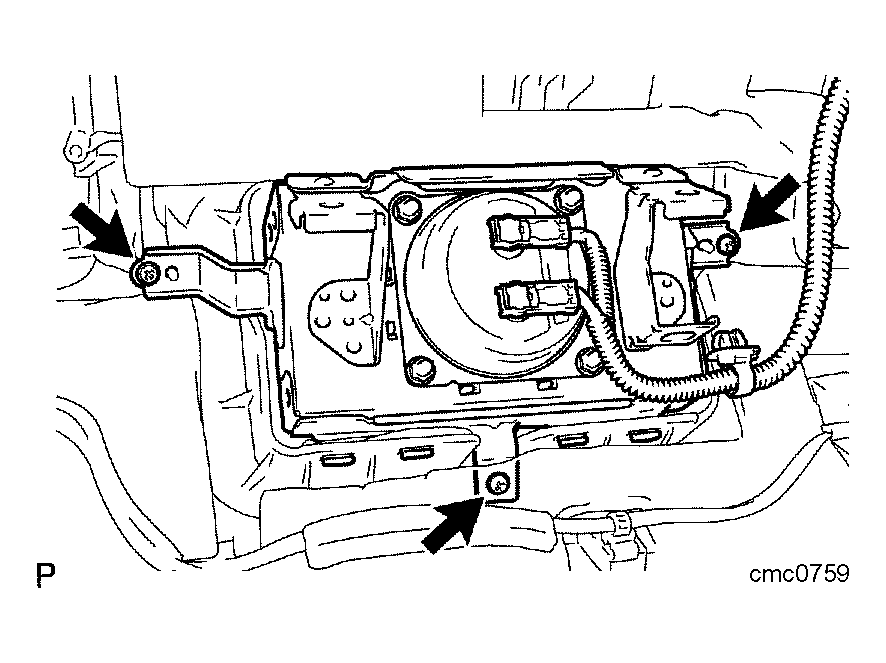

      Fig 3: Removing 3 Screws Of Instr PNL Pass L/ Door Airbag Assy
      G04331862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Release the rear side wall of the airbag door from the hook by slightly deflecting it and roll the instrument panel pass l/door airbag assy forward.
    4. Release the front side wall of the airbag door from the other hook and remove the instrument panel pass l/door airbag assy.
      Fig 4: Releasing Front Side Wall Of Airbag Door From Other Hook
      G04331863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSPECT INSTR PNL PASS L/DOOR AIRBAG ASSY (SEE  ON-VEHICLE INSPECTION   )
  16. INSTALL INSTR PNL PASS L/DOOR AIRBAG ASSY
  17. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY
  18. CENTER SPIRAL CABLE (SEE  SPIRAL CABLE SUB-ASSY   )
  19. INSTALL STEERING WHEEL ASSY (SEE  OVERHAUL  )
  20. INSPECT STEERING WHEEL CENTER POINT
  21. INSTALL HORN BUTTON ASSY (SEE  REPLACEMENT   )
  22. INSPECT HORN BUTTON ASSY (SEE  ON-VEHICLE INSPECTION   )
  23. INSPECT SRS WARNING LIGHT (SEE  DIAGNOSIS SYSTEM  )
