Inspection Procedure
- PERFORM ACTIVE TEST BY INTELLIGENT TESTER (OCV OPERATION)
- Connect the intelligent tester to the DLC3.
- Turn the ignition switch ON and turn the tester ON.
- Warm up the engine.
- On the tester, enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / VVT CTRL B1 or VVT CTRL B2.
- Using the intelligent tester, operate the OCV and check the engine speed.
OK : Go to next step
OCV OPERATIONTester Operation Specified Condition OCV OFF Normal engine speed OCV ON Rough idle or engine stall OK : CHECK FOR INTERMITTENT PROBLEMS
NG : Go to next step
- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (OCV)
- Reconnect the OCV connector.
OK :
OCV has no contamination and moves smoothly.
NG : REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
OK : Go to next step
- INSPECT ECM (OCV SIGNAL)
- During idling, check the waveform of the ECM connector using an oscilloscope.
Signal waveform
ECM (OCV SIGNAL)Tester Connection Specified Condition E7-16 (OC1+) - E7-15 (OC1-)
E7-14 (OC2+) - E7-13 (OC2-)Correct waveform is shown in the illustration. NG : REPLACE ECM
OK : Go to next step

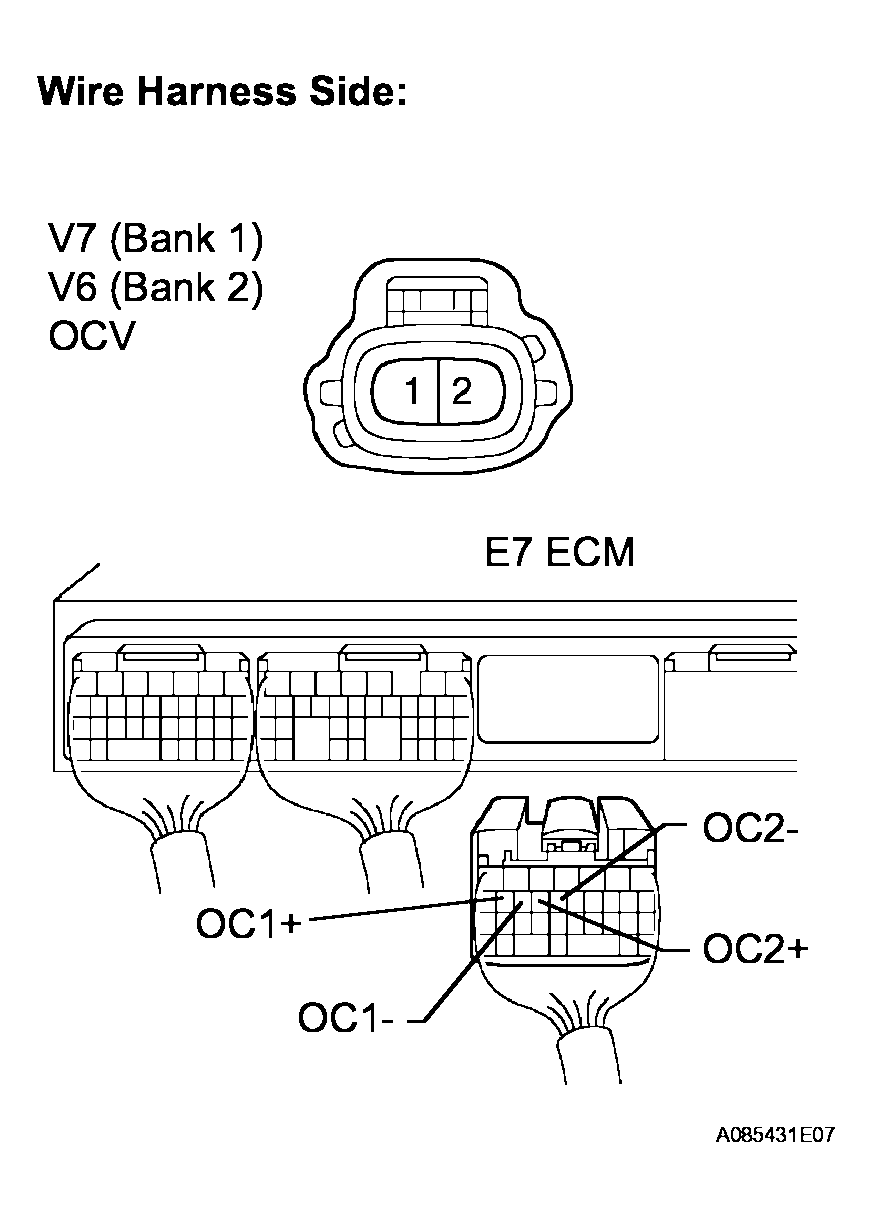

- CHECK HARNESS AND CONNECTOR (OCV - ECM)
- Disconnect the V6 or V7 OCV connector.
- Disconnect the E7 ECM connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
OCV - ECMTester Connection Specified Condition V7-1 (OCV) - E7-16 (OC1+)
V7-2 (OCV) - E7-15 (OC1-)
V6-1 (OCV) - E7-14 (OC2+)
V6-2 (OCV) - E7-13 (OC2-)Below 1 Ω V7-1 (OCV) or E7-16 (OC1+) - Body ground
V7-2 (OCV) or E7-15 (OC1-) - Body ground
V6-1 (OCV) or E7-14 (OC2+) - Body ground
V6-2 (OCV) or E7-13 (OC2-) - Body ground10 kΩor higher NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
OK : CHECK FOR INTERMITTENT PROBLEMS
- CHECK CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (OCV OPERATION)
- Disconnect the V6 or V7 OCV connector.
- Apply positive battery voltage between the terminals of the OCV.
- Check the engine speed.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK :
Engine speed is rough idle or engine is stalled.
NG : REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
OK : Go to next step
- CHECK ECM (OCV SIGNAL)
- During idling, check the waveform of the E7 ECM connector using an oscilloscope.
Signal waveform
ECM (OCV SIGNAL)Tester Connection Specified Condition E7-16 (OC1+) - E7-15 (OC1-)
E7-14 (OC2+) - E7-13 (OC2-)Correct waveform is shown in the illustration NG : REPLACE ECM
OK : Go to next step
- CHECK HARNESS AND CONNECTOR (OCV - ECM)
- Disconnect the V6 or V7 OCV connector.
- Disconnect the E7 ECM connector.
- Measure the resistance of the wire harness side connectors.
Standard resistance
OCV - ECM
| Tester Connection | Specified Condition |
|---|---|
| V7-1 (OCV) - E7-16 (OC1+) V7-2 (OCV) - E7-15 (OC1-) V6-1 (OCV) - E7-14 (OC2+) V6-2 (OCV) - E7-13 (OC2-) |
Below 1 Ω |
| V7-1 (OCV) or E7-16 (OC1+) - Body ground V7-2 (OCV) or E7-15 (OC1-) - Body ground V6-1 (OCV) or E7-14 (OC2+) - Body ground V6-2 (OCV) or E7-13 (OC2-) - Body ground |
10 kΩ or higher |
NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
OK : CHECK FOR INTERMITTENT PROBLEMS
