DTC P0351, P0352, P0353, P0354, P0355, P0356, P0357, P0358: Ignition Coil "A"/"B"/"C"/"D"/"E"/"F"/"G"/"H" Primary/Secondary Circuit: Wiring Diagram

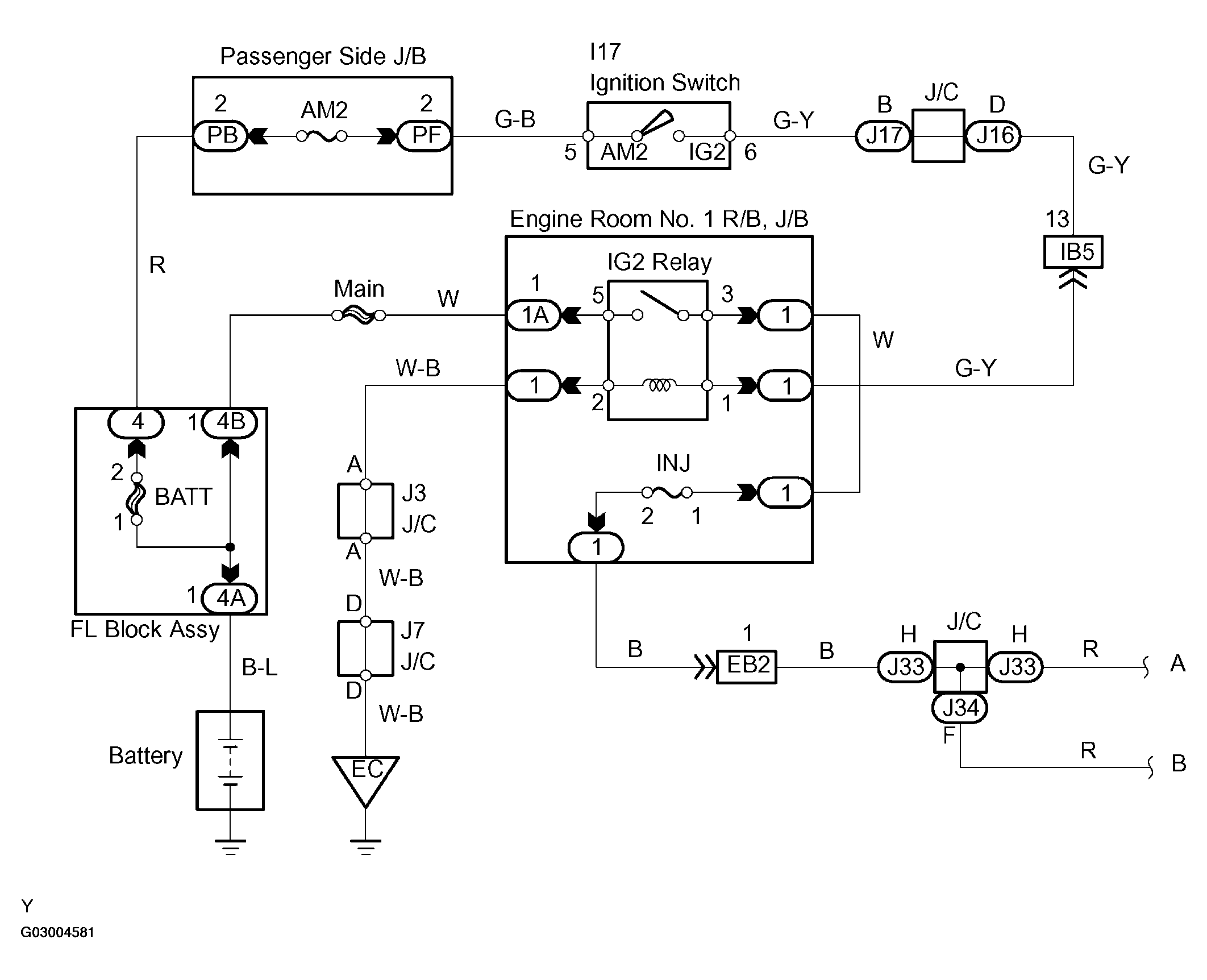

Fig 1: DTC P0351, P0352, P0353, P0354, P0355, P0356, P0357, P0358 - Wiring Diagram (1 Of 2)
G03004581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

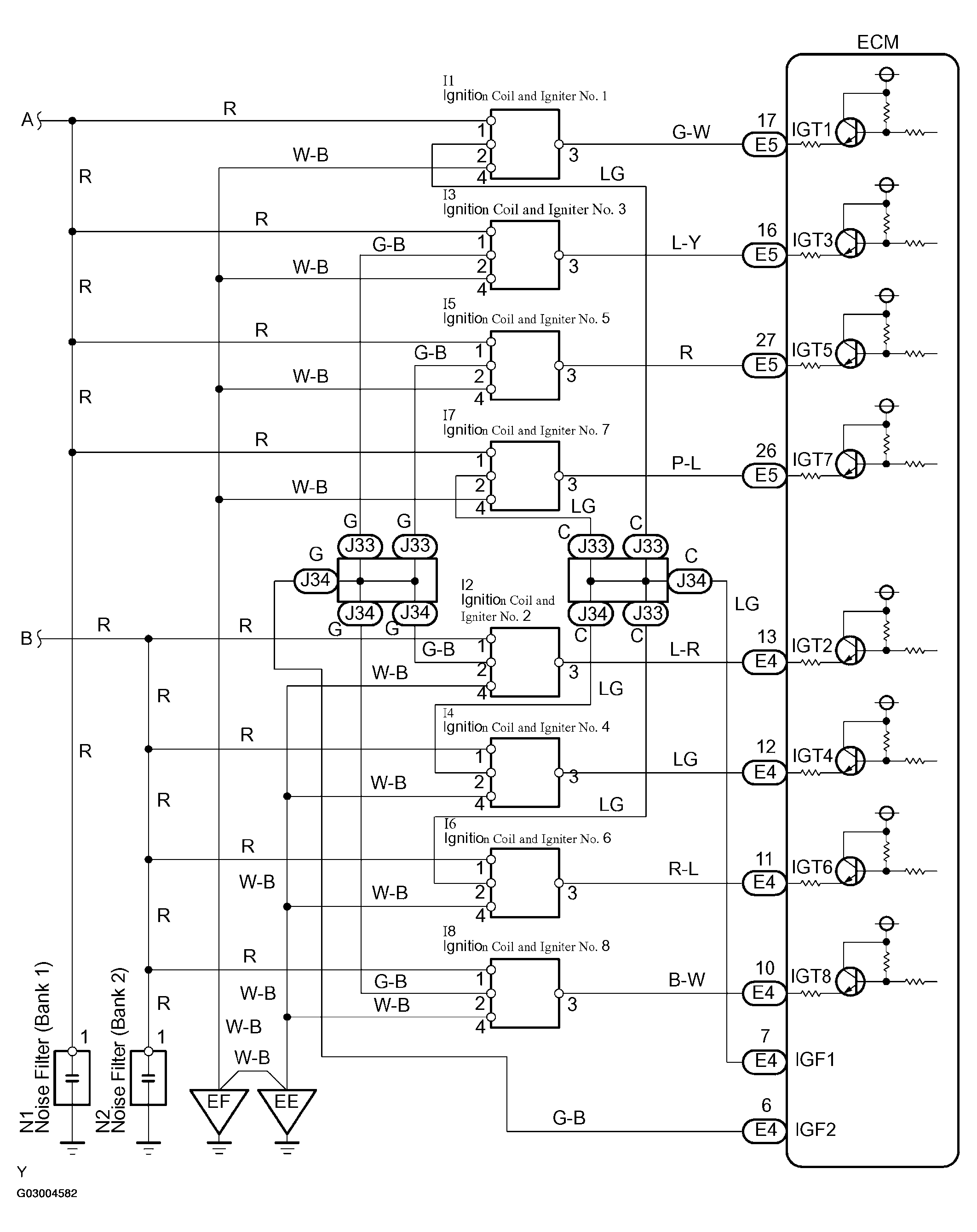

Fig 2: DTC P0351, P0352, P0353, P0354, P0355, P0356, P0357, P0358 - Wiring Diagram (2 Of 2)
G03004582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
