: Location of Connector Joining Wire Harness and Wire Harness: Overview

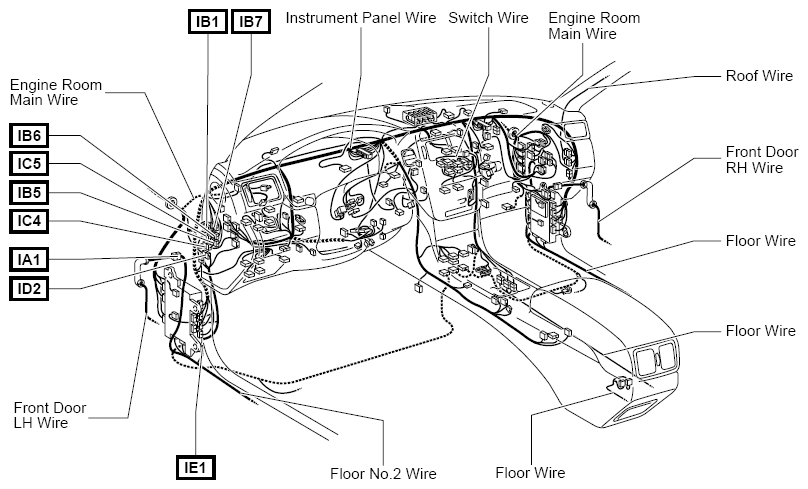

Fig 1: Locating Wiring Harnesses
G08913666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

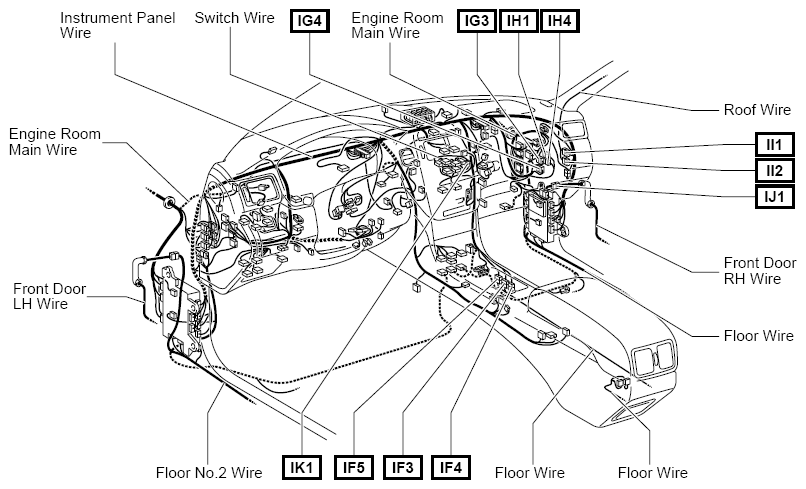

Fig 1: Locating Wiring Harnesses & Ground Points
G08913668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

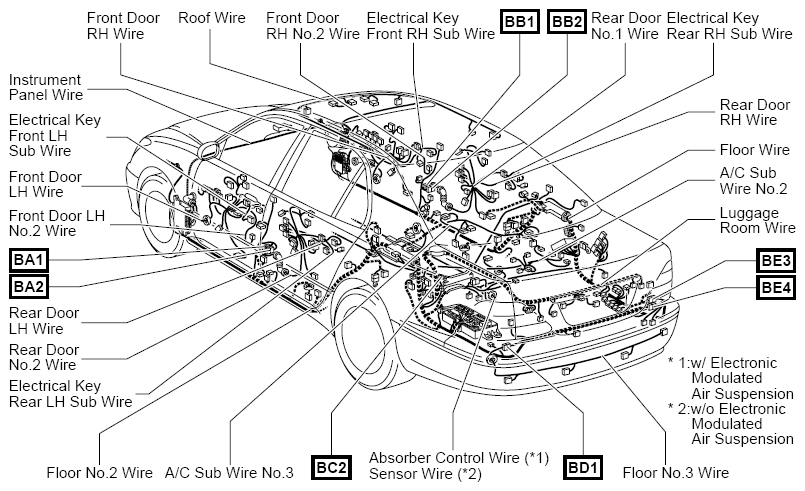

Fig 1: Locating Wiring Harnesses
G08913669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

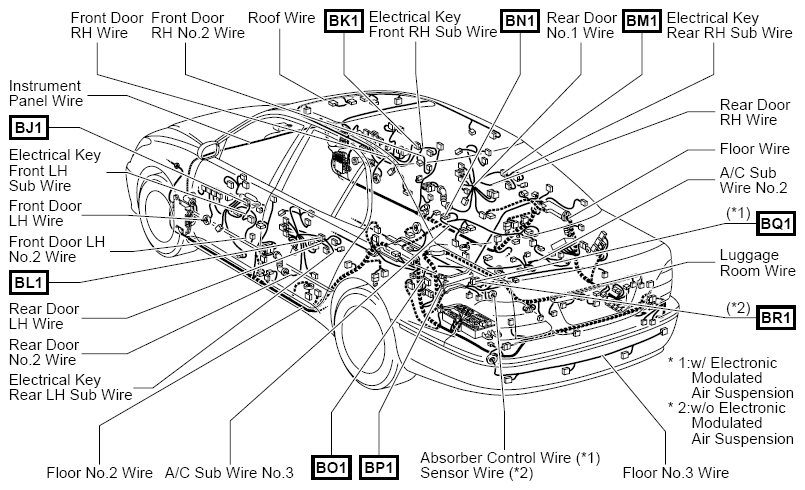

Fig 1: Locating Wiring Harnesses & Ground Points
G08913671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
