TC and CG Terminal Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

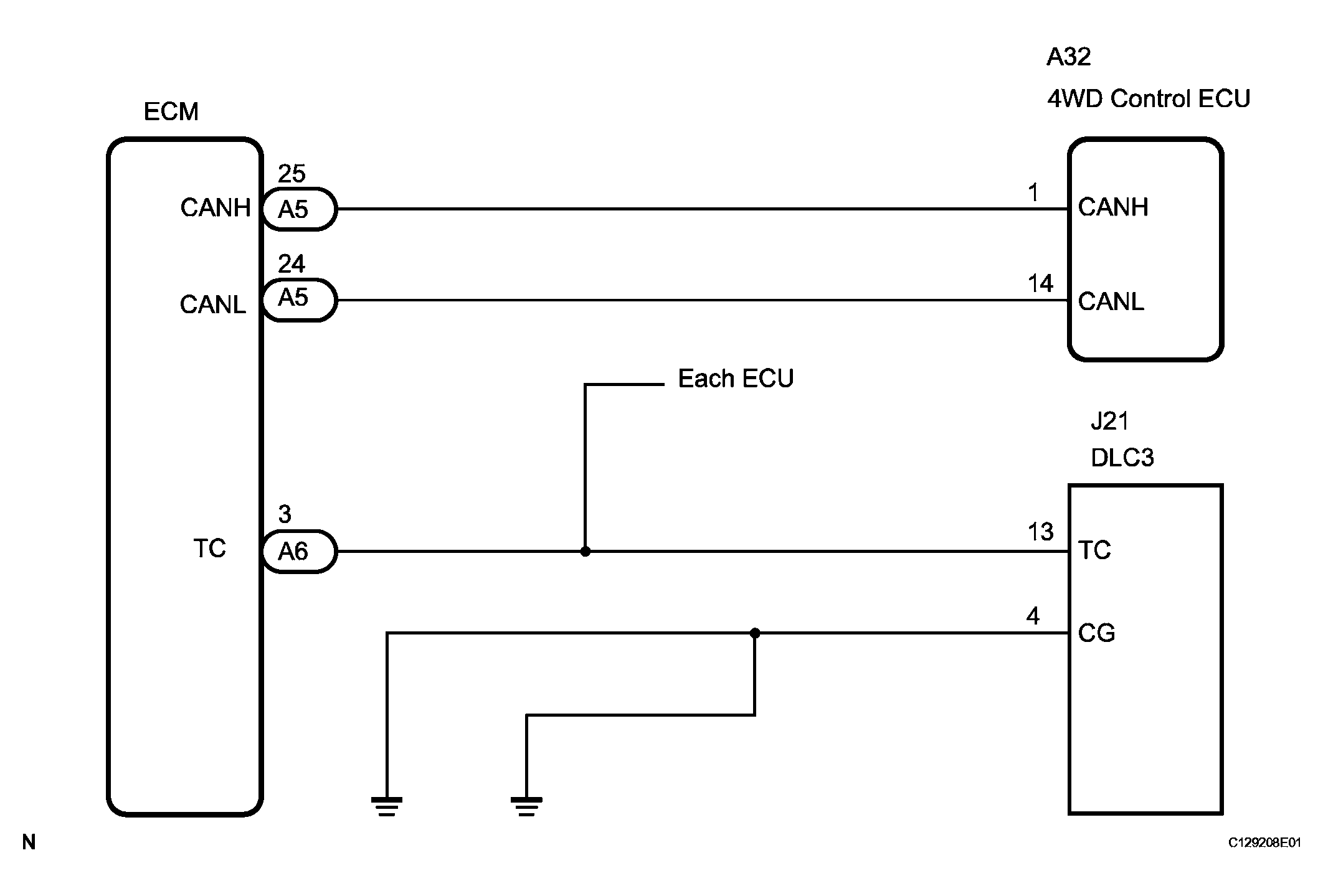

Fig 1: TC & CG Terminal Circuit Wiring Diagram
G04046729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Check the condition of each related circuit connector before troubleshooting (See HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS ).
