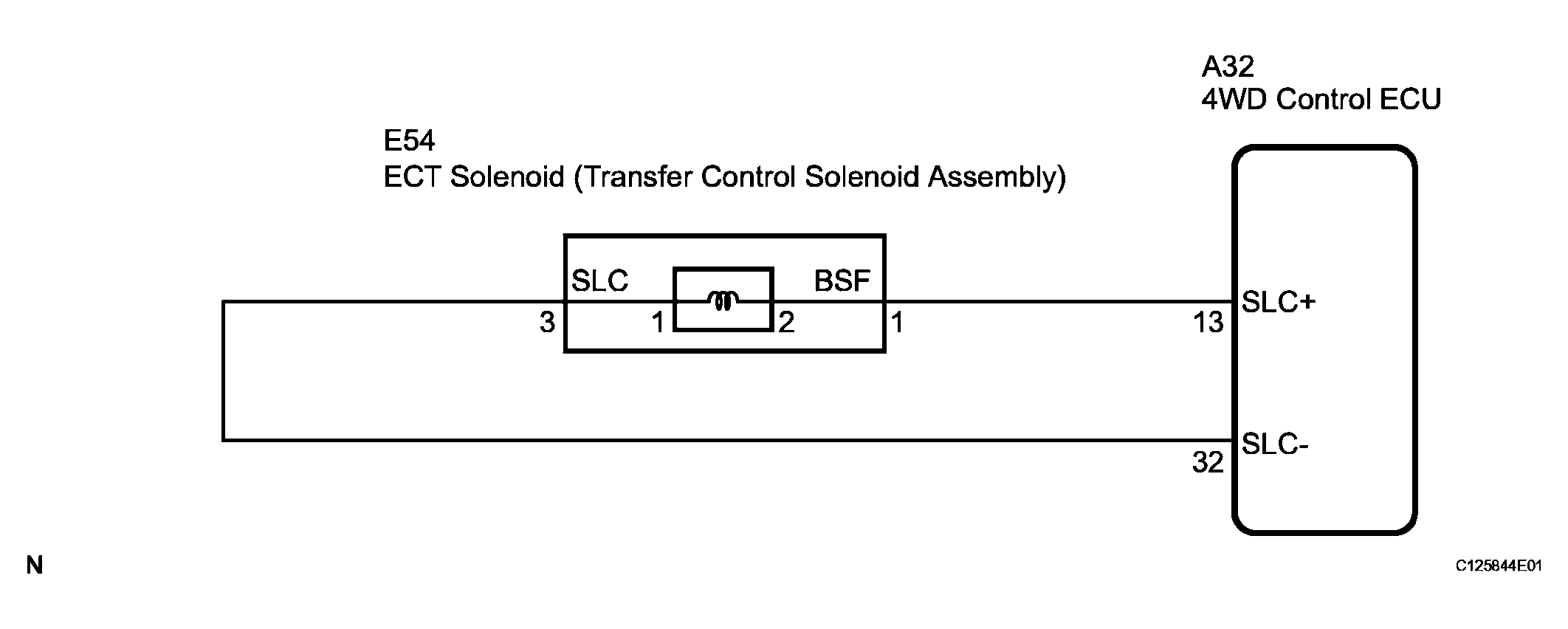

DTC C1298/98 Linear Solenoid Circuit: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
HINT:
Check the condition of each related circuit connector before troubleshooting (See HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS ).
