Park / Neutral Position Switch: Removal

WARNING: This page is about a different variant/trim than selected.

SEPARATE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY (See REMOVAL )
REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
1. Disconnect the park/neutral position switch connector.

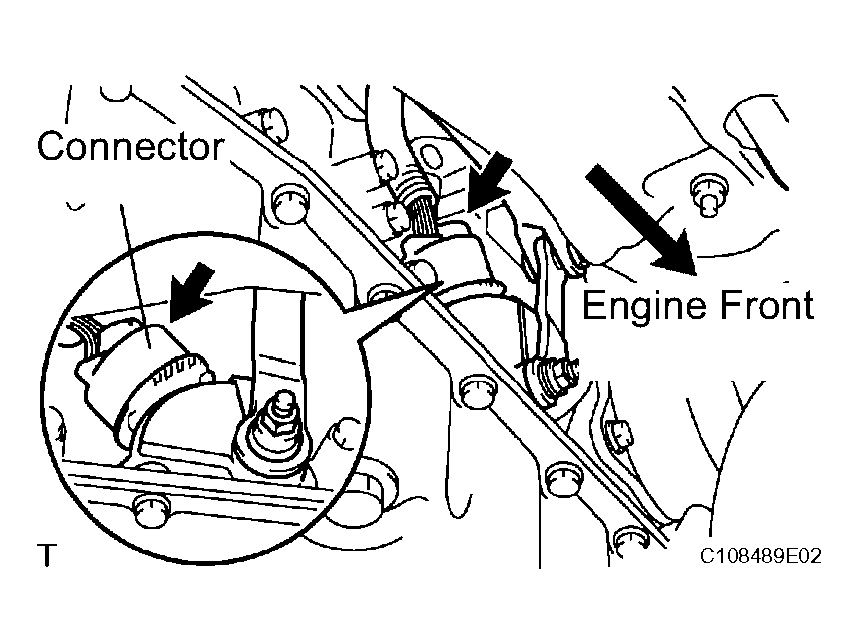

  Fig 1: Identifying Park/Neutral Position Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut and transmission control shaft lever RH.

  Fig 2: Identifying Nut And Transmission Control Shaft Lever RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, pry out the lock washer.
4. Remove the lock nut and lock washer.

  Fig 3: Identifying Lock Nut And Lock Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt and park/neutral position switch.

  Fig 4: Identifying Park/Neutral Position Switch Mounting Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
