Extension Housing Rear Oil Seal: Components

WARNING: This page is about a different variant/trim than selected.

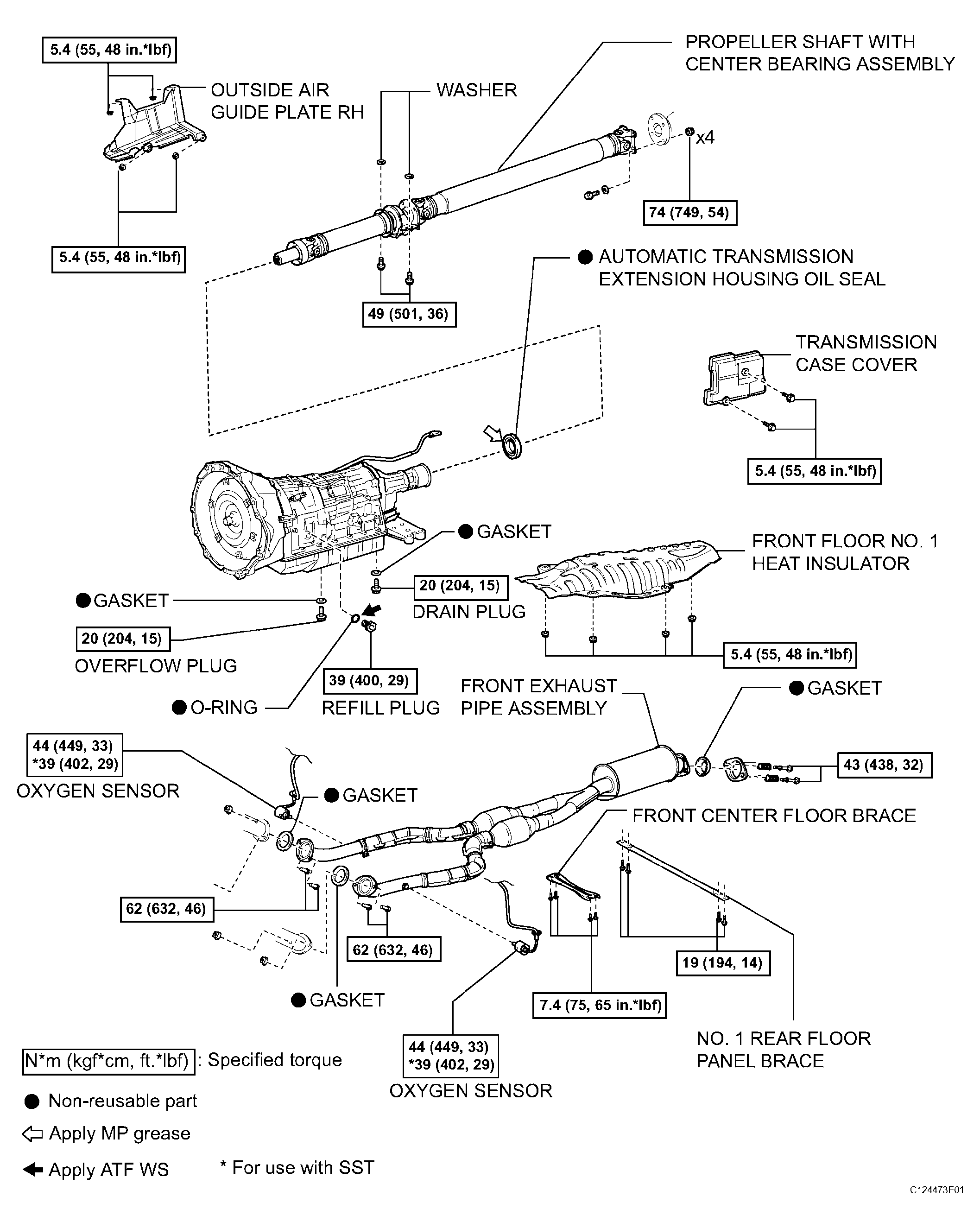

Fig 1: Extension Housing Rear Oil Seal Replacement Components With Torque Specifications
G04045828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
