Clutch Drum And Input Shaft Assembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL DIRECT CLUTCH PISTON SUB-ASSEMBLY
1. Coat 2 new O-rings with ATF, and install them in the direct clutch piston.
2. Coat a new O-ring with ATF, and install it to the No. 2 clutch balancer.

  Fig 1: Identifying Direct Clutch Piston O-Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the No. 2 clutch balancer and the direct clutch return spring to the direct clutch piston subassembly.
4. Press the direct clutch piston into the reverse clutch drum sub-assembly by hands.
  NOTE: Do not damage the O-rings.

  Fig 2: View Of Clutch Balancer Return Spring Sub Assembly And Direct Clutch Piston Sub Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Place SST on the direct clutch piston, and compress the return spring with a press.
  SST 09320-89010, 09350-30020 (09350-07070)
6. Install the snap ring with a snap ring expander.
  NOTE:
  - Be sure that the end gap of the snap ring is not aligned with the spring retainer claw.
  - Stop pressing when the spring sheet is lowered to the place 1 to 2 mm (0.039 to 0.078 in.) from the snap ring groove to prevent the spring sheet from being deformed.
  - Do not expand the snap ring excessively.
  Fig 3: Identifying Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

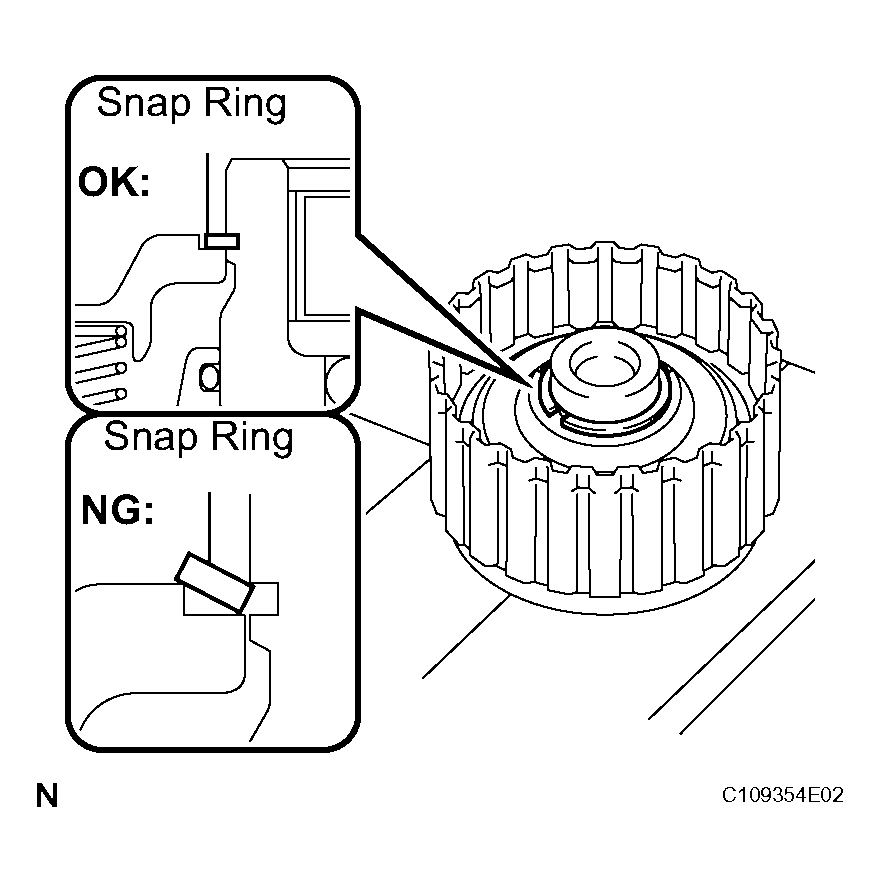

7. Set the end gap of the snap ring in the piston as shown in the illustration.
Fig 4: Setting End Gap Of Snap Ring In Piston
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REVERSE CLUTCH PISTON SUBASSEMBLY
1. Coat a new O-ring with ATF, and install it on the reverse clutch drum sub-assembly.

  Fig 5: Identifying Clutch Drum O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat a new O-ring with ATF, and install it on the reverse clutch piston sub-assembly.

  Fig 6: Identifying Reverse Clutch Piston Sub-Assembly O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Press the clutch drum sub-assembly into the reverse clutch piston with both hands.
  NOTE: Do not damage the O-ring.
INSTALL REVERSE CLUTCH RETURN SPRING SUBASSEMBLY

Fig 7: Identifying Reverse Clutch Drum Sub-Assembly & Reverse Clutch Piston
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Coat a new O-ring with ATF, and install it on the reverse clutch piston sub-assembly.
2. Install the reverse clutch return spring onto the reverse clutch piston sub-assembly.
Fig 8: Identifying O-Ring On Reverse Clutch Piston Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 CLUTCH BALANCER
1. Install the No. 3 clutch balancer to the reverse clutch return spring.
2. Place SST on the No. 3 clutch balancer, and compress the clutch balancer with a press.
  SST 09387-00070

  Fig 9: Removing/Installing Clutch Balancer No. 3 Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the snap ring with a snap ring expander.
  SST 09350-30020 (09350-07070)
  NOTE:
  - Be sure that the end gap of the snap ring is not aligned with the spring retainer claw.
  - Stop pressing when the spring sheet is lowered to the place 1 to 2 mm (0.039 to 0.078 in.) from the snap ring groove to prevent the spring sheet from being deformed.
  - Do not expand the snap ring excessively.
4. Set the end gap of the snap ring in the piston as shown in the illustration.

  Fig 10: Setting End Gap Of Snap Ring In Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 DIRECT CLUTCH DISC
1. Install the reverse clutch flange, the 5 plates and the 5 discs on the reverse clutch drum sub-assembly.
  Install in order:

  P = Plate, D = Disc, F = Flange,

  F - D - P - D - P - D - P - D - P - D - P

  Fig 11: Identifying Reverse Clutch Flange, Plates And Discs On Reverse Clutch Drum Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, install the 2 hole snap rings on the reverse clutch drum sub-assembly.
INSPECT PACK CLEARANCE OF DIRECT CLUTCH (See INSPECTION )

Fig 12: Removing/Installing Clutch Drum Hole Snap Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REVERSE CLUTCH FLANGE
1. Install the reverse clutch flange to the reverse clutch drum sub-assembly.

  Fig 13: Removing/Installing Reverse Clutch Flange
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REVERSE CLUTCH REACTION SLEEVE
1. Install the reverse clutch reaction sleeve, the clutch cushion plate, the reverse clutch flange, the 4 reverse clutch discs, and the 3 clutch plates to the reverse clutch hub.
  Install in order:

  P = Plate, D = Disc, F = Flange, S = Sleeve, C = Cushion Plate

  S - C - F - D - P - D - P - D - P - D
2. Using a screwdriver, install the hole snap ring.
INSPECT PACK CLEARANCE OF REVERSE CLUTCH (See INSPECTION )

Fig 14: Identifying Reverse Clutch Reaction Sleeve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REVERSE CLUTCH REACTION SLEEVE
1. Using a screwdriver, remove the snap ring from the reverse clutch drum sub-assembly.

  Fig 15: Identifying Snap Ring And Clutch Drum Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the reverse clutch reaction sleeve, the clutch cushion plate, the reverse clutch flange, the 4 reverse clutch discs, and the 3 clutch plates from the reverse clutch hub sub-assembly.
Fig 16: Identifying Reverse Clutch Reaction Sleeve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FORWARD CLUTCH PISTON SUBASSEMBLY
1. Install the coast clutch piston to the input shaft.
2. Install a new O-ring to the forward clutch.
3. Install the forward clutch piston sub-assembly to the input shaft.
Fig 17: Identifying Coast Clutch Piston & Forward Clutch Piston
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 CLUTCH BALANCER
1. Coat a new D-ring with ATF and install it on the No. 1 clutch balancer.

  Fig 18: Identifying D-Ring With No 1 Clutch Balancer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No. 1 clutch balancer and the forward clutch return spring sub-assembly.
  NOTE: Do not damage the D-ring.

  Fig 19: Identifying No 1 Clutch Balancer And Forward Clutch Return Spring Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Place SST on the No. 1 clutch balancer, and compress the return spring with a press.
  SST 09350-30020 (09350-07040), 09316-20011
4. Using SST, Install the snap ring.
  SST 09350-30020 (09350-07070)

  Fig 20: Identifying Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be sure that the end gap of the snap ring is not aligned with the spring retainer claw.
  - Stop pressing when the spring sheet is lowered to the place 1 to 2 mm (0.039 to 0.078 in.) from the snap ring groove to prevent the spring sheet from being deformed.
  - Do not expand the snap ring excessively.
5. Set the end gap of the snap ring in the piston as shown in the illustration.
Fig 21: Setting End Gap Of Snap Ring In Piston
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL COAST CLUTCH DISC
1. Install the flange, the 4 discs and the 4 plates to the forward clutch piston.
2. Using a screwdriver, install the hole snap ring.
INSPECT PACK CLEARANCE OF COAST CLUTCH (See INSPECTION )

Fig 22: Identifying Flange, Discs And Plates With Forward Clutch Piston
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL NO. 1 CLUTCH DISC

Install the flange, the 4 discs, 4 plates and clutch cushion plate to the input shaft assembly.
Install in order:

P = Plate, D = Disc, F = Flange, C = Cushion Plate

F - D - P - D - P - D - P - D - P - C

Fig 23: Identifying Flange, Discs, Plates And Clutch Cushion Plate And Input Shaft Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Using a screwdriver, install the hole snap ring.

Fig 24: Identifying Hole Snap Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the thrust needle roller bearing and the thrust bearing race.

THRUST NEEDLE ROLLER BEARING AND BEARING RACE DIAMETER SPECIFICATION

	Inside	Outside
Thrust needle roller bearing	33.5 mm (1.319 in.)	48.0 mm (1.890 in.)
Thrust bearing race	37.0 mm (1.457 in.)	51.2 mm (2.016 in.)

Fig 25: Identifying Thrust Needle Roller Bearing And Thrust Bearing Race

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL INPUT SHAFT OIL SEAL RING
1. Coat 4 new oil seal rings with ATF.
2. Squeeze the ends of the 4 oil seal rings together, and then install them to the input shaft groove.
  NOTE: Do not expand the ring ends excessively.

  Fig 26: Identifying 4 Oil Seal Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  After installing the oil seal rings, check that they rotate smoothly.
INSPECT PACK CLEARANCE OF FORWARD CLUTCH (See INSPECTION )

INSTALL INPUT SHAFT

Install the input shaft to the reverse clutch drum subassembly.

Fig 27: View Of Input Shaft Assembly And Clutch Drum
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the thrust needle roller bearing and the thrust bearing race to the reverse clutch drum subassembly.

Thrust needle roller bearing diameter

THRUST NEEDLE ROLLER BEARING DIAMETER SPECIFICATION

	Inside	Outside
Thrust needle roller bearing	20.0 mm (0.787 in.)	41.0 mm (1.614 in.)
Thrust bearing race	20.0 mm (0.787 in.)	35.6 mm (1.402 in.)

Fig 28: Identifying Thrust Needle Roller Bearing And Thrust Bearing Race And Reverse Clutch Drum Subassembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL COAST CLUTCH HUB SUB-ASSEMBLY
1. Install the clutch hub thrust washer and the No. 4 one way clutch assembly to the coast clutch hub.

  Fig 29: Identifying Clutch Hub Thrust Washer And No 4 One Way Clutch Assembly With Coast Clutch Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the coast clutch hub sub-assembly to the reverse clutch drum sub-assembly.
Fig 30: Identifying Coast Clutch Hub Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL CLUTCH HUB SUB-ASSEMBLY

Install the 2 thrust needle roller bearings and No. 2 thrust bearing race to the clutch hub sub-assembly.

Bearing and race diameter

BEARING AND RACE DIAMETER SPECIFICATION

	Inside	Outside
Bearing A	42.5 mm (1.673 in.)	61.2 mm (2.409 in.)
Bearing B	33.3 mm (1.311 in.)	51.2 mm (2.016 in.)
Thrust bearing race No. 2	31.0 mm (1.221 in.)	48.0 mm (1.890 in.)

Fig 31: Identifying Thrust Needle Roller Bearings And No 2 Thrust Bearing Race With Clutch Hub Sub-Assembly

Install the clutch hub thrust washer and forward clutch hub sub-assembly to the reverse clutch drum sub-assembly.

Fig 32: Identifying Clutch Hub Thrust Washer And Forward Clutch Hub Sub-Assembly With Reverse Clutch Drum Sub-Assembly

INSTALL NO. 3 CLUTCH DISC
1. Install the clutch cushion plate, the reverse clutch flange, the 3 plates and the 4 discs to the reverse clutch hub.
Fig 33: Identifying Clutch Cushion Plate, Reverse Clutch Flange, 3 Plates And 4 Discs With Reverse Clutch Hub
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REVERSE CLUTCH REACTION SLEEVE
1. Install the reverse clutch reaction sleeve to the reverse clutch hub.
Fig 34: View Of Reverse Clutch Reaction Sleeve And Reverse Clutch Hub Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REVERSE CLUTCH HUB SUB-ASSEMBLY
1. Install the reverse clutch hub sub-assembly, the reverse clutch reaction sleeve, the clutch cushion plate, the reverse clutch flange, the 4 reverse clutch discs, and the 3 clutch plates to the reverse clutch drum sub-assembly.

  Fig 35: Identifying Reverse Clutch Hub Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, install the snap ring on the reverse clutch drum sub-assembly and the input shaft assembly.
Fig 36: Removing/Installing Clutch Drum And Input Shaft Assembly Snap Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
