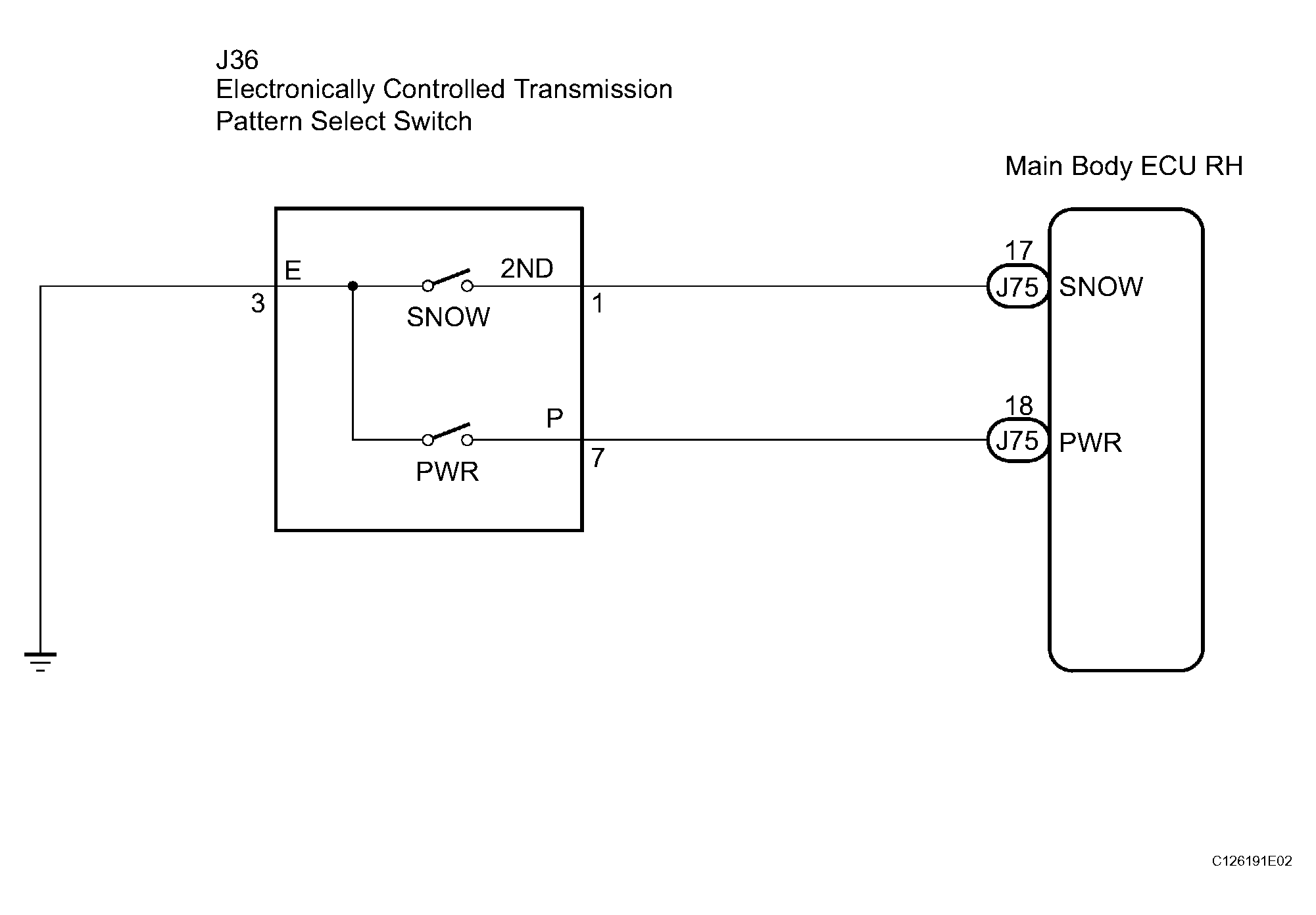

Pattern Select Switch Power Mode Circuit: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
- CHECK HARNESS AND CONNECTOR (PATTERN SELECT SWITCH ASSEMBLY - BODY GROUND)
- Disconnect the connector of pattern select switch.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition 3 - Body ground Below 1 Ω NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
OK : Go to next Step
- INSPECT PATTERN SELECT SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTSwitch Condition Tester Connection Specified Condition Pattern select switch (PWR) 3 - 7 Below 1 Ω Pattern select switch (NORM) 10 kΩ or higher NG : REPLACE PATTERN SELECT SWITCH ASSEMBLY
OK : Go to next Step
- CHECK HARNESS AND CONNECTOR (PATTERN SELECT SWITCH ASSEMBLY - MAIN BODY ECU)
- Connect the connector of pattern select switch.

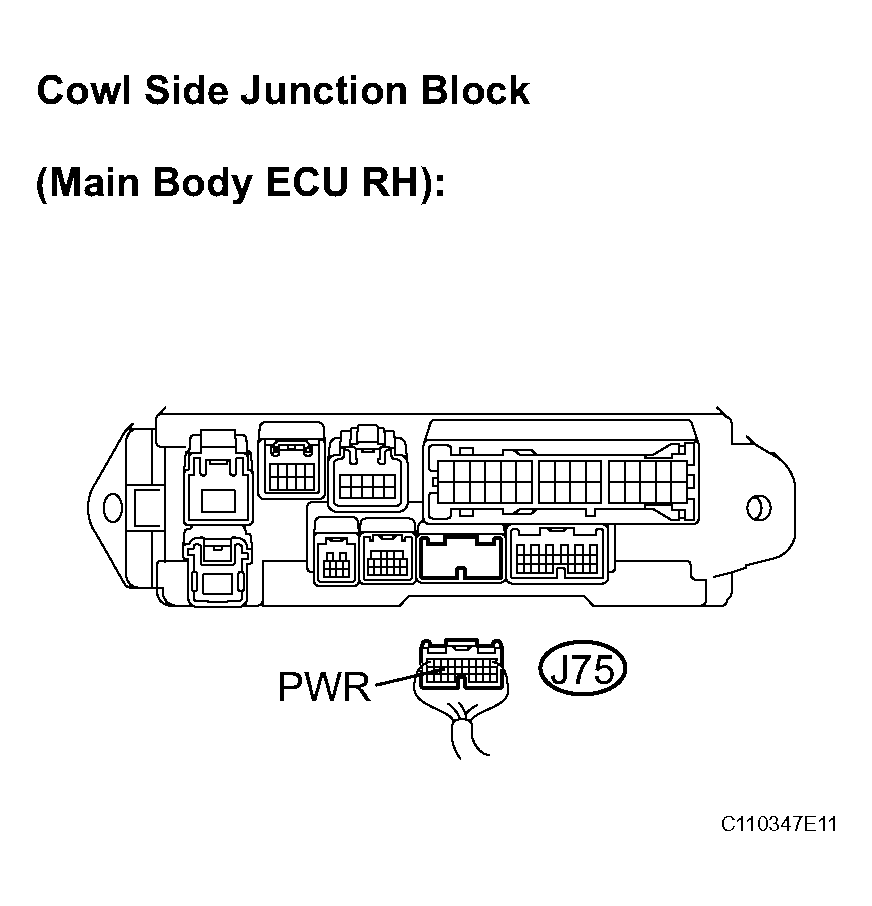

- Disconnect the cowl side junction block (main body ECU RH) connector.
- Measure the resistance between terminal PWR of the cowl side junction block (main body ECU RH) and body ground.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTSwitch Condition Tester Connection Specified Condition Pattern select switch (PWR) J75 - 18 (PWR) - Body ground Below 1 Ω Pattern select switch (NORM) 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
