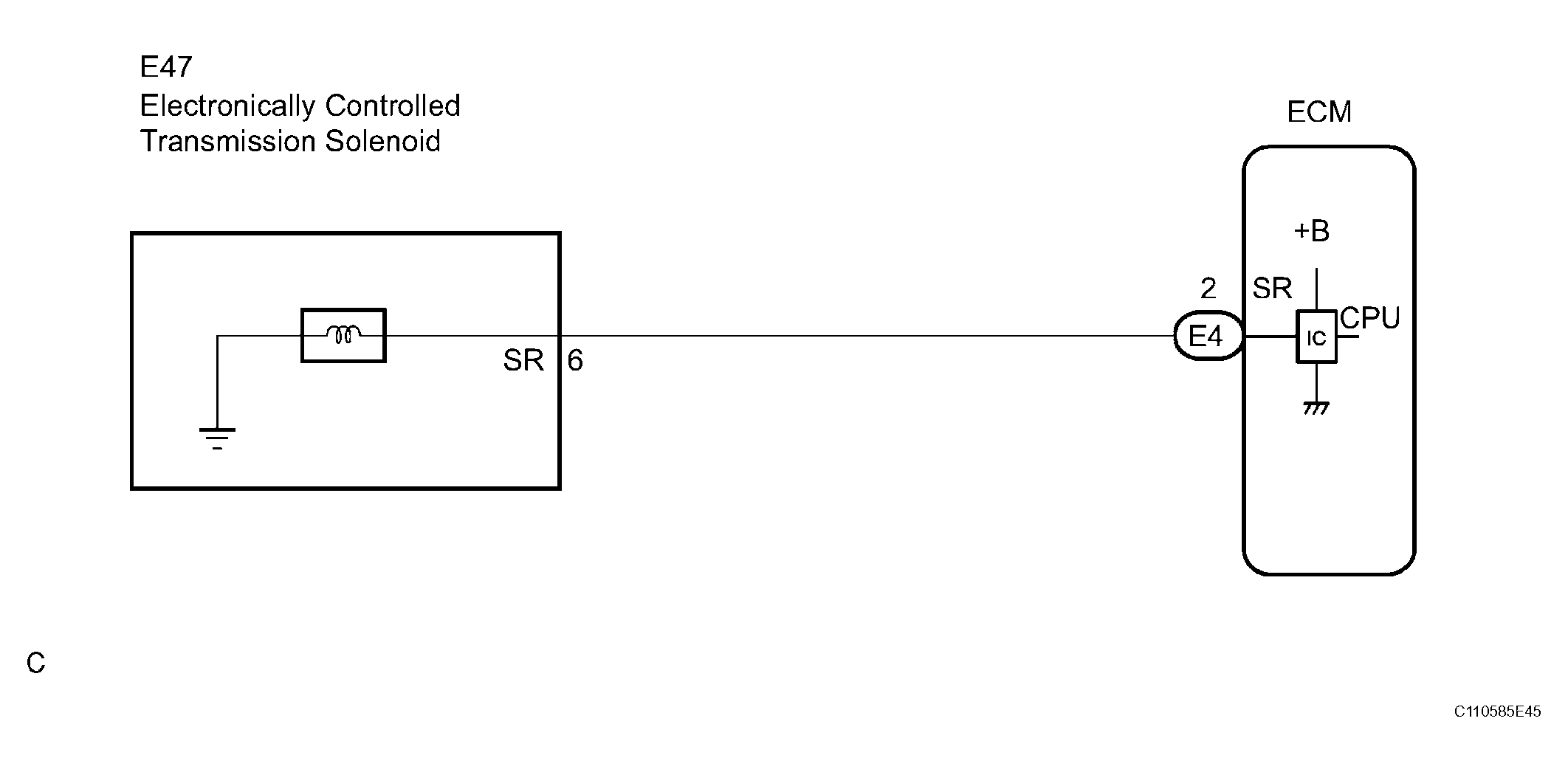

DTC P0985 Shift Solenoid "E" Control Circuit Low (Shift Solenoid Valve SR): DTC P0986 Shift Solenoid "E" Control Circuit High (Shift Solenoid Valve SR): Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
HINT:
- The shift solenoid valve SR is turned on/off normally when the shift lever is in the D position:
ECM COMMAND GEARSHIFT CHART
| ECM command gearshift | 1st | 2nd | 3rd | 4th | 5th | 6th |
| Shift solenoid valve SR | ON | ON | ON | ON | OFF | OFF |
- INSPECT TRANSMISSION WIRE (SR)
- Disconnect the transmission wire connector from the transmission.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition 20°C (68°F) 6 - Body ground 11 to 15 Ω NG : Go to step 3
OK : Go to next Step
- CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)
- Connect the transmission connector to the transmission.
- Disconnect the connector from the ECM.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition 20°C (68°F) E4-2 (SR) - Body ground 11 to 15 Ω NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
OK : REPLACE ECM

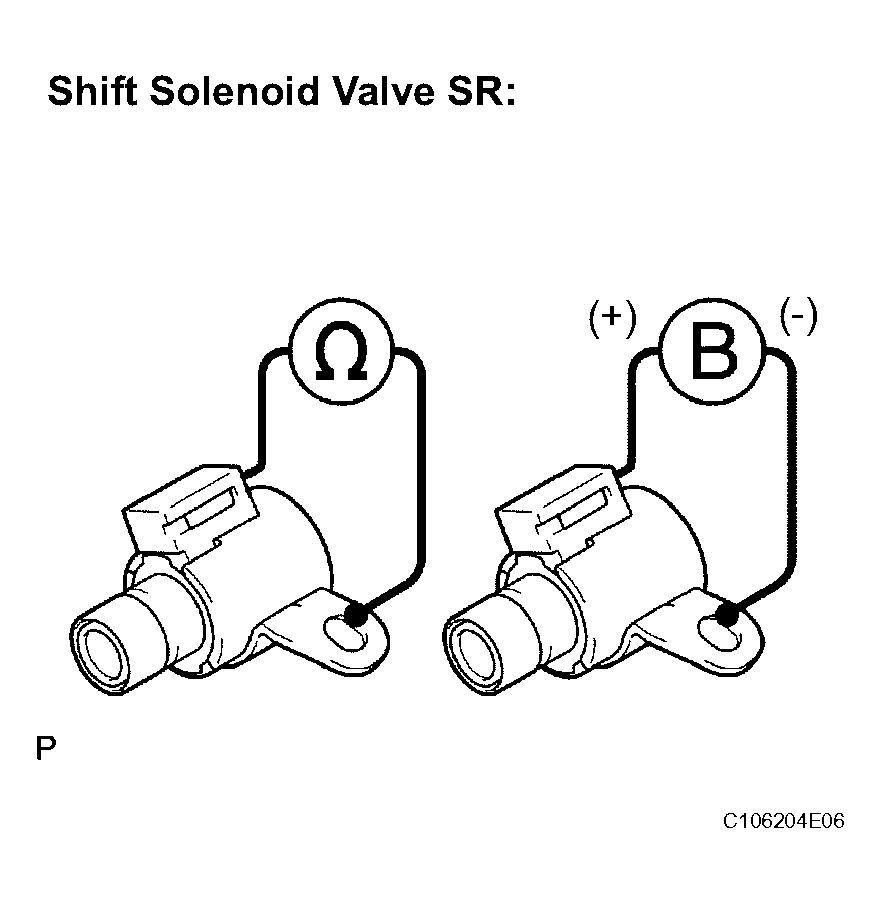

- INSPECT SHIFT SOLENOID VALVE SR
- Remove the shift solenoid valve SR.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition 20°C (68°F) Solenoid Connector (SR) - Solenoid Body (SR) 11 to 15 Ω - Connect the positive (+) lead to the terminal of the solenoid connector, and the negative (-) lead to the solenoid body.
OK:
The solenoid makes an operating sound.
NG : REPLACE SHIFT SOLENOID VALVE SR
OK : REPAIR OR REPLACE TRANSMISSION WIRE
