Clutch Drum And Input Shaft Assembly: Components

WARNING: This page is about a different variant/trim than selected.

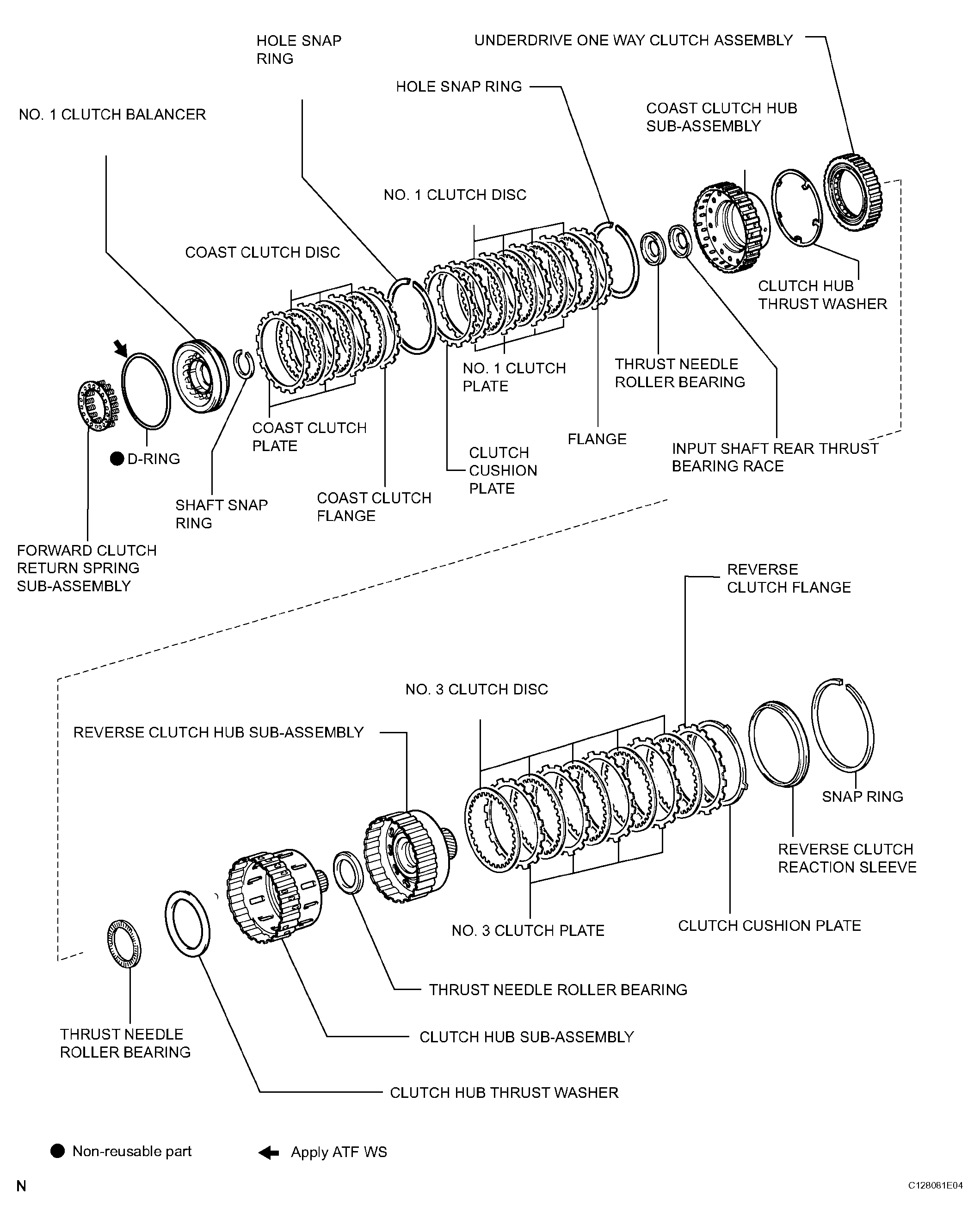

Fig 1: Identifying Clutch Drum & Input Shaft Assembly Components (1 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

Fig 2: Identifying Clutch Drum & Input Shaft Assembly Components (2 Of 2)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
