Shift Paddle Switch Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

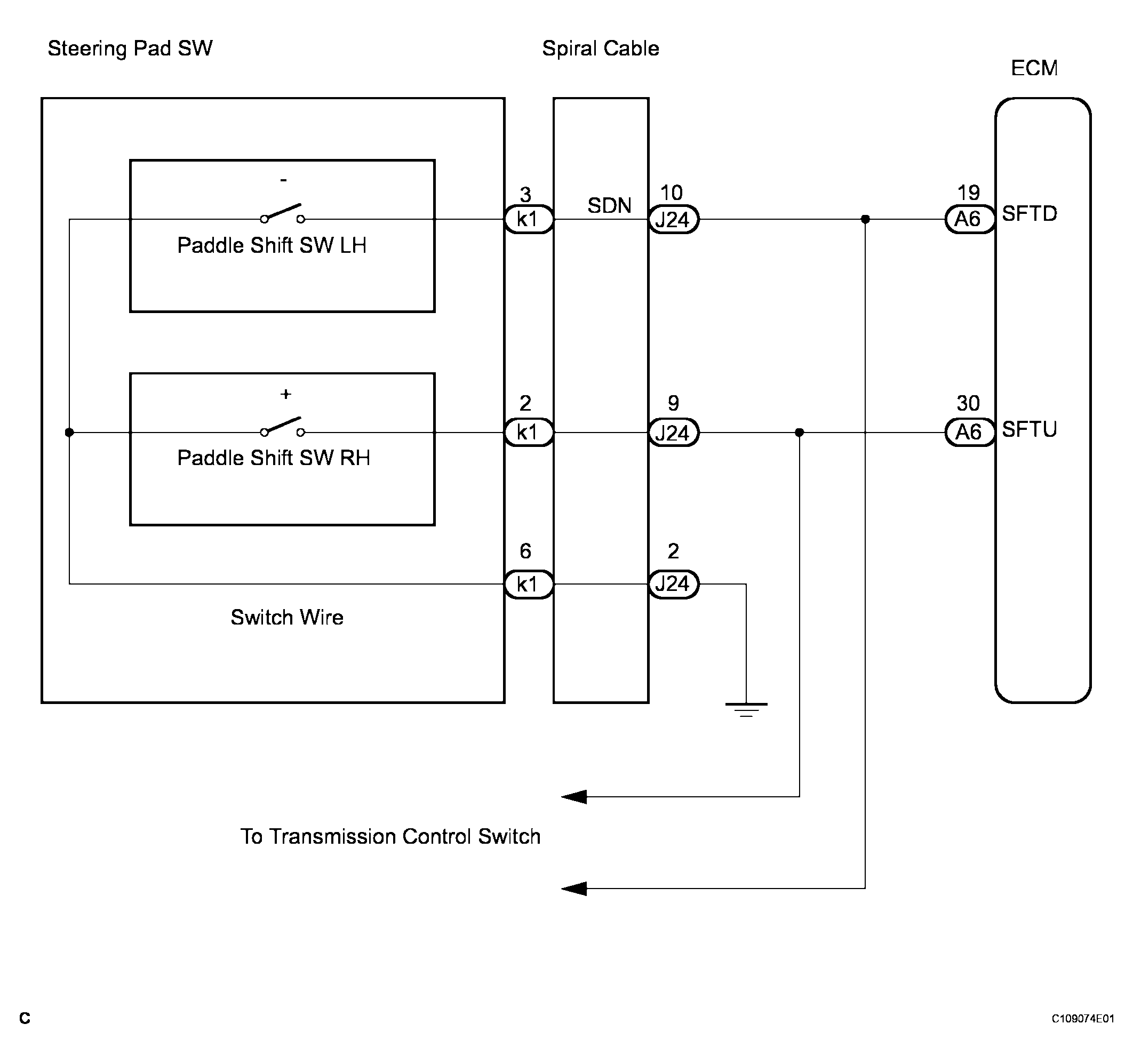

Fig 1: Identifying Shift Paddle Switch Circuit Wiring Diagram
G04045213Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
