DTC P2759 Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

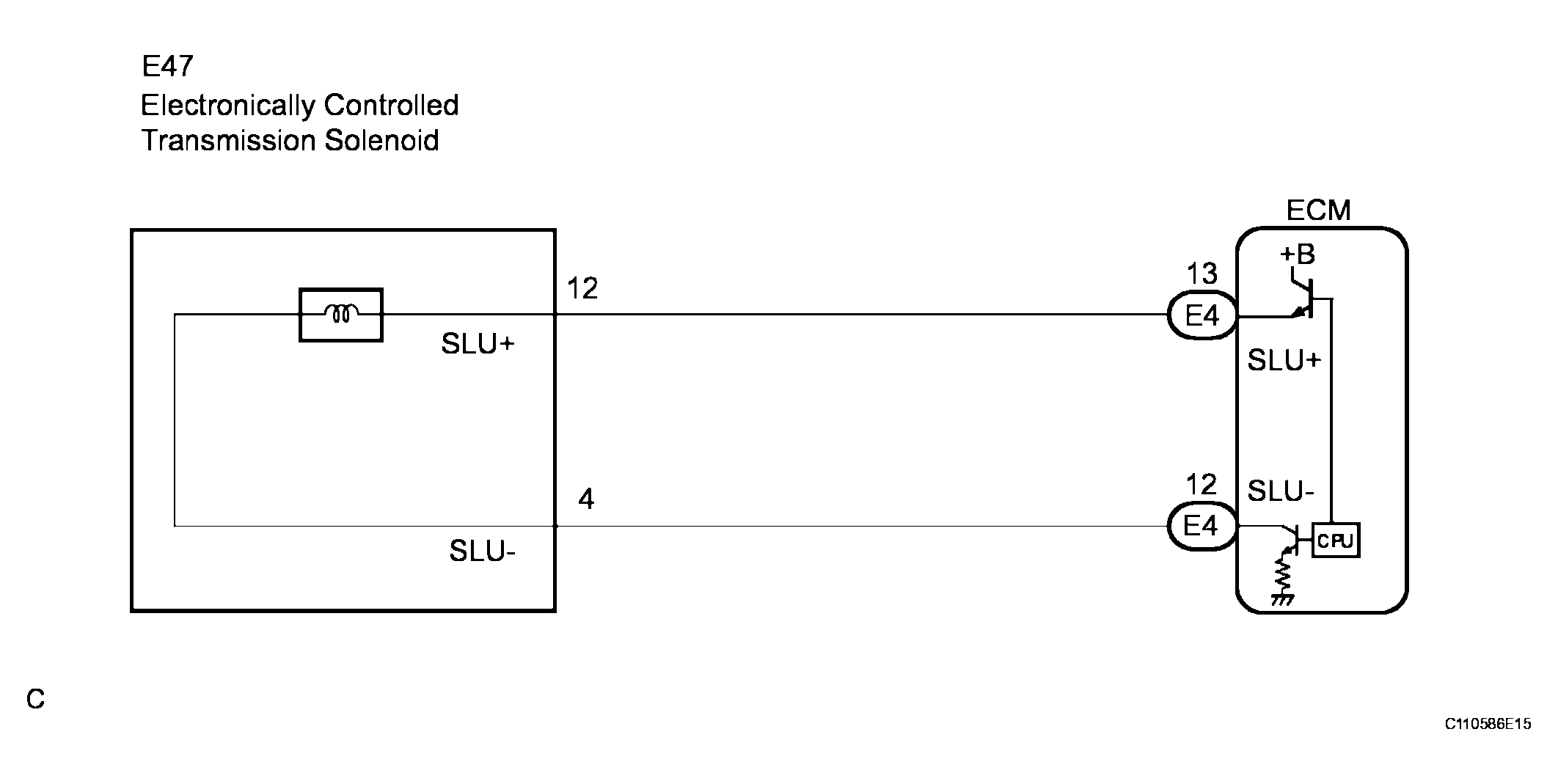

Fig 1: Identifying Shift Solenoid Valve SLU Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
