DTC P2716 Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

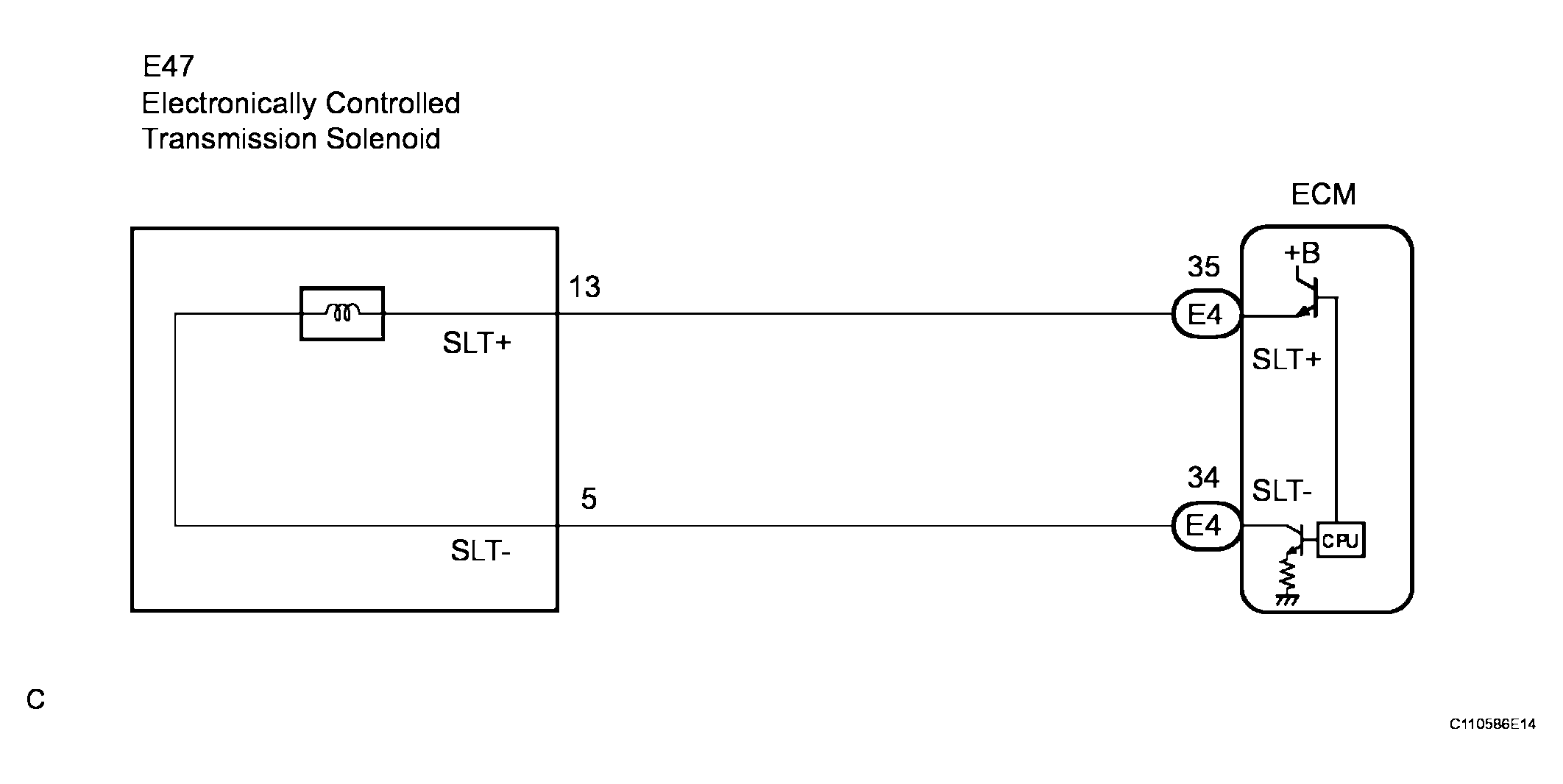

Fig 1: Identifying Pressure Control Solenoid D Electrical Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
