System Description
WARNING: This page is about a different variant/trim than selected.
The linear solenoid valve (SLT) controls the transmission line pressure for smooth transmission operation based on signals from the throttle position sensor and the vehicle speed sensor. The ECM adjusts the duty ratio (*) of the SLT solenoid valve to control hydraulic line pressure coming from the primary regulator valve. Appropriate line pressure assures smooth shifting with varying engine outputs.
(*): Duty Ratio
The duty ratio is the ratio of the period of continuity in one cycle. For example, if A is the period of continuity in one cycle, and B is the period of non-continuity, then Duty Ratio=A/(A+B) x 100 (%)

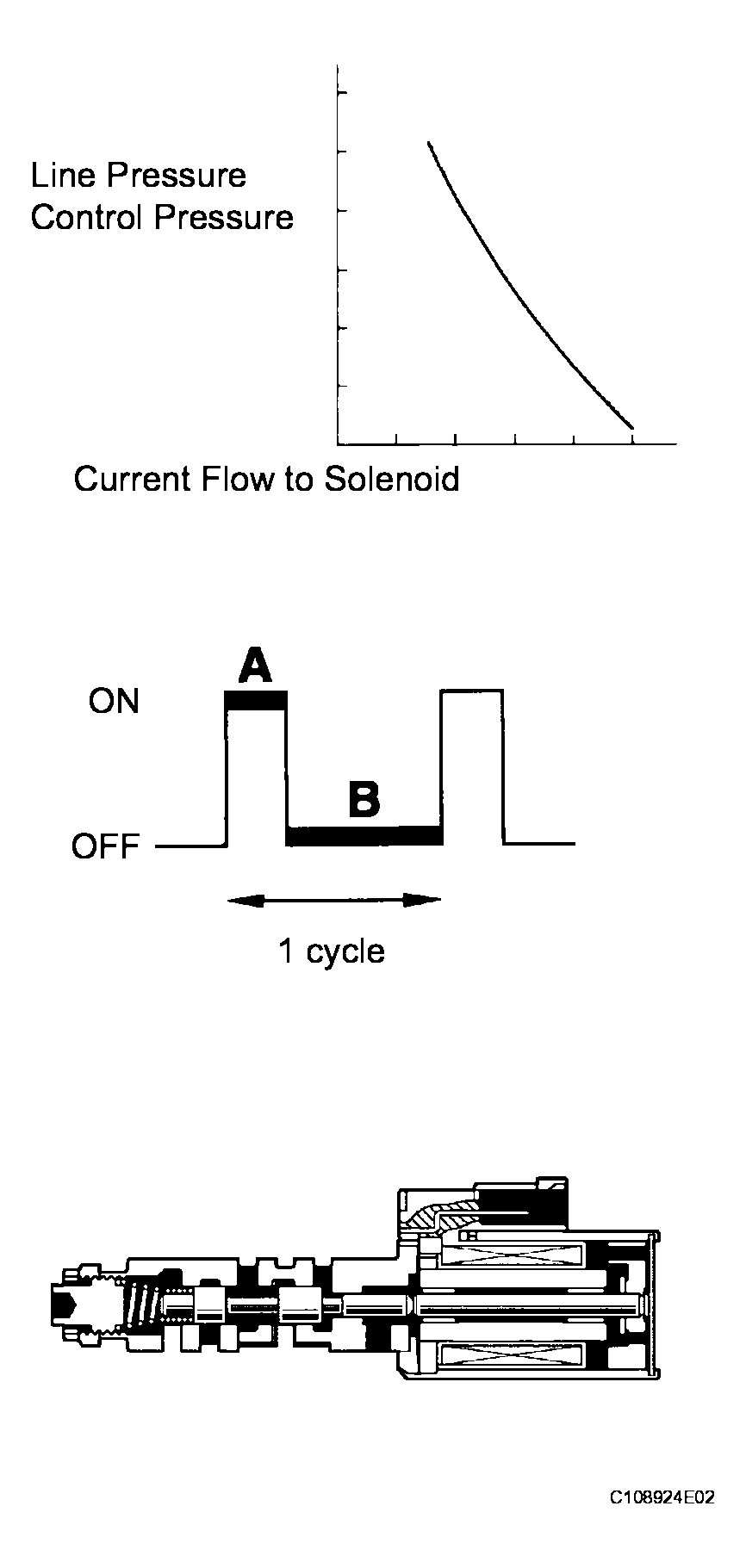

Fig 1: Identifying Pressure Control Solenoid "D" Performance (Shift Solenoid Valve SLT) System Description Diagram
DTC DETECTING CONDITION
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| P2714 | ECM detects a malfunction on SLT (ON side) according to the revolution difference of the turbine and the output shaft, and also by the oil pressure. (2-trip detection logic) |
|
