DTC P0985, P0986: Shift Solenoid "E" Control Circuit Low (Shift Solenoid Valve SR); Shift Solenoid "E" Control Circuit High (Shift Solenoid Valve SR): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

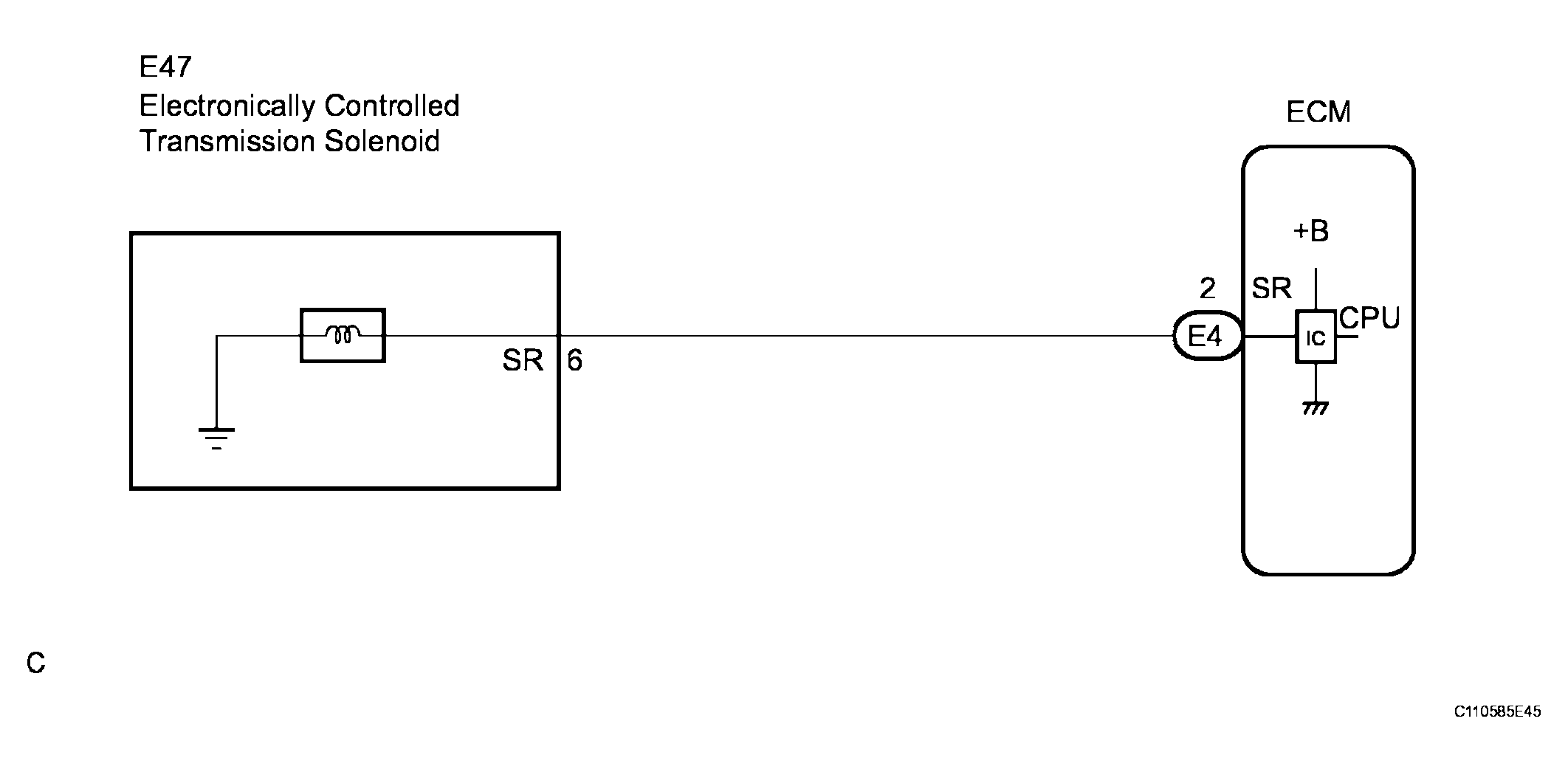

Fig 1: Identifying Shift Solenoid E Control Circuit Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
