DTC P0982, P0983: Shift Solenoid "D" Control Circuit Low (Shift Solenoid Valve S4); Shift Solenoid "D" Control Circuit High (Shift Solenoid Valve S4): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

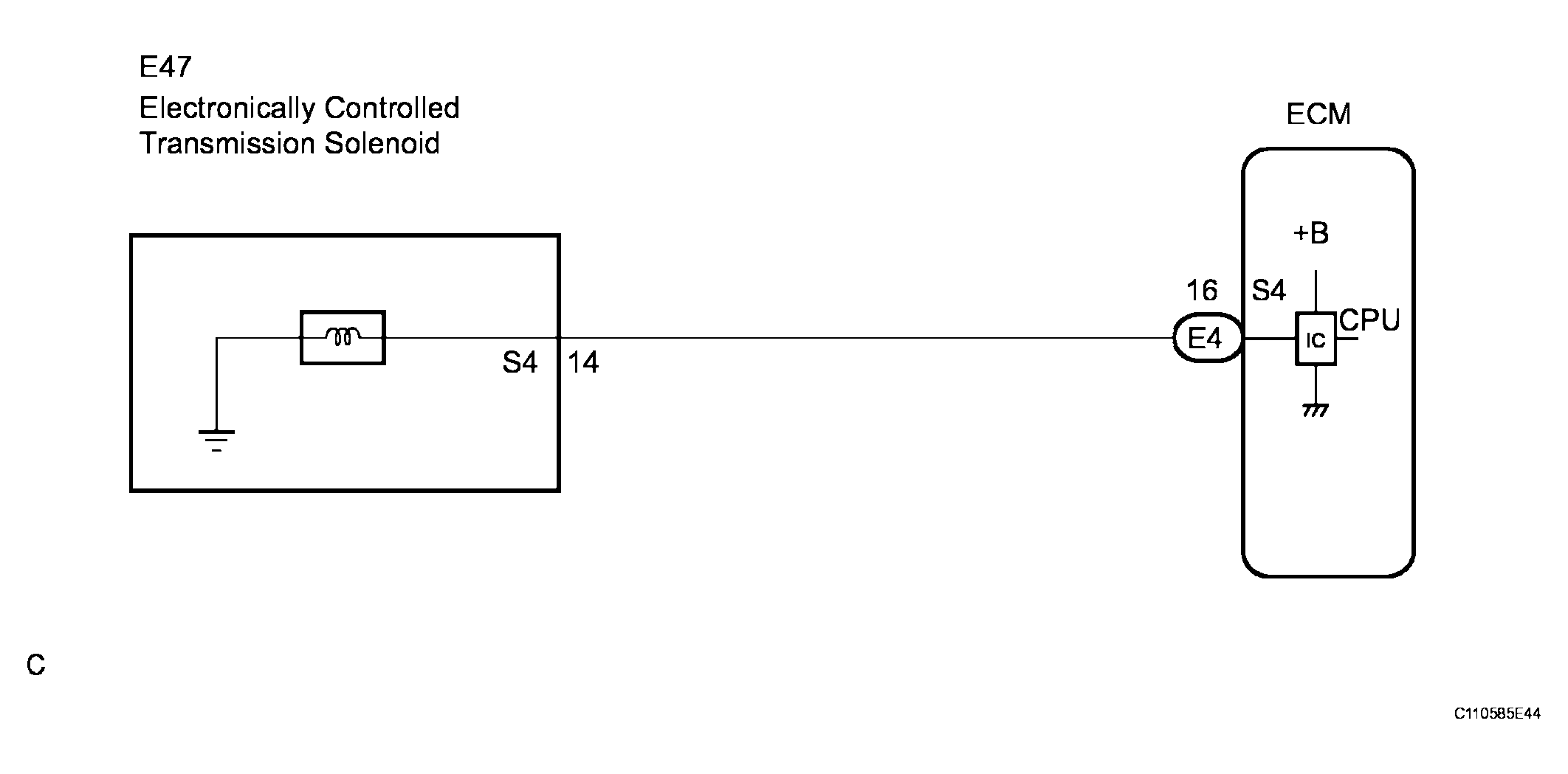

Fig 1: Identifying Shift Solenoid D Control Circuit Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
