Section 1 (Automatic Transmission (A760H))
>>
Automatic Transmission System
>>
DTC P0979, P0980: Shift Solenoid "C" Control Circuit Low (Shift Solenoid Valve S3); Shift Solenoid "C" Control Circuit High (Shift Solenoid Valve S3)
>>
Wiring Diagram
DTC P0979, P0980: Shift Solenoid "C" Control Circuit Low (Shift Solenoid Valve S3); Shift Solenoid "C" Control Circuit High (Shift Solenoid Valve S3): Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

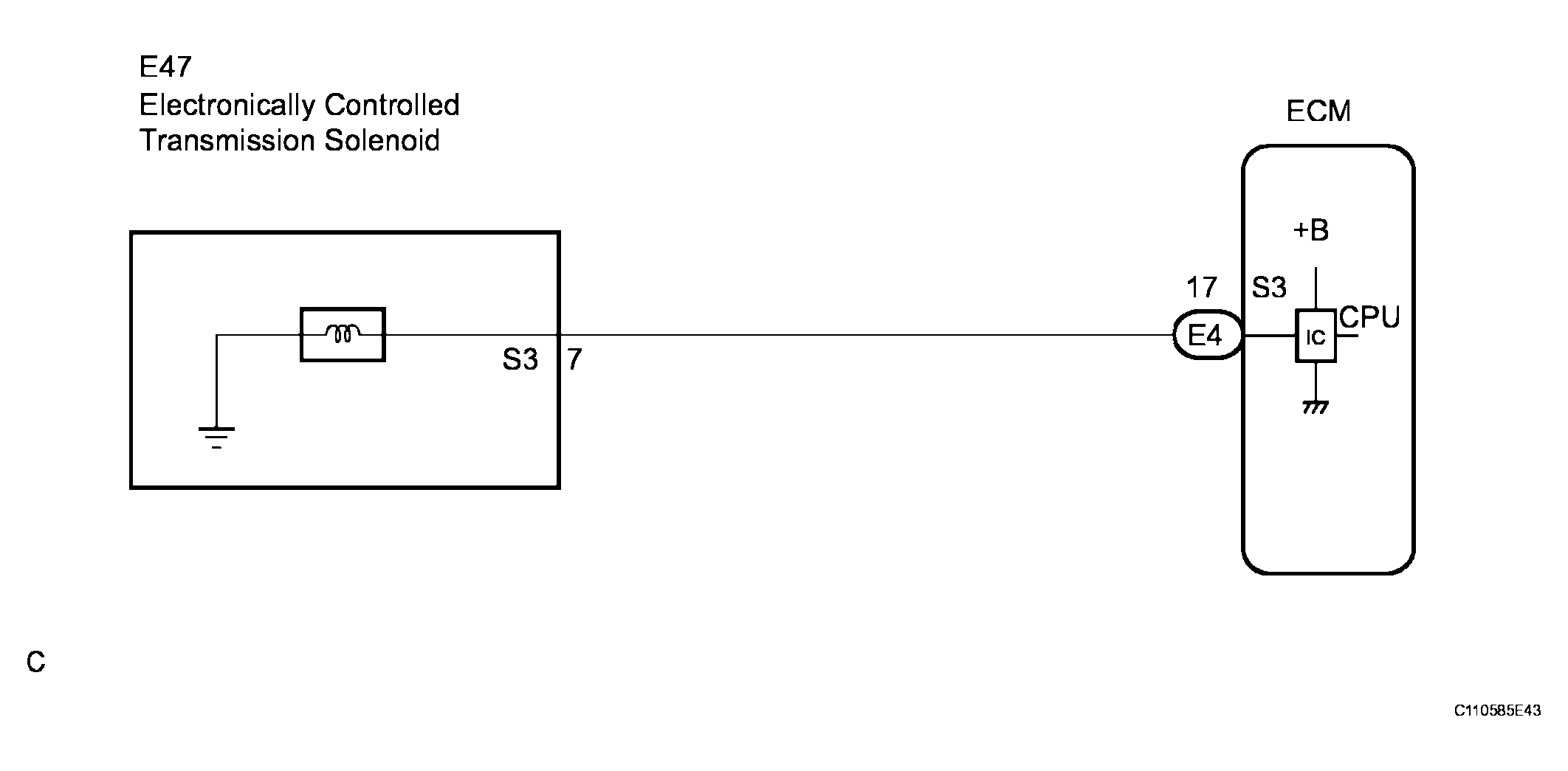

Fig 1: Identifying Shift Solenoid C Control Circuit Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
