DTC P0976, P0977: Shift Solenoid "B" Control Circuit Low (Shift Solenoid Valve S2); Shift Solenoid "B" Control Circuit High (Shift Solenoid Valve S2): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

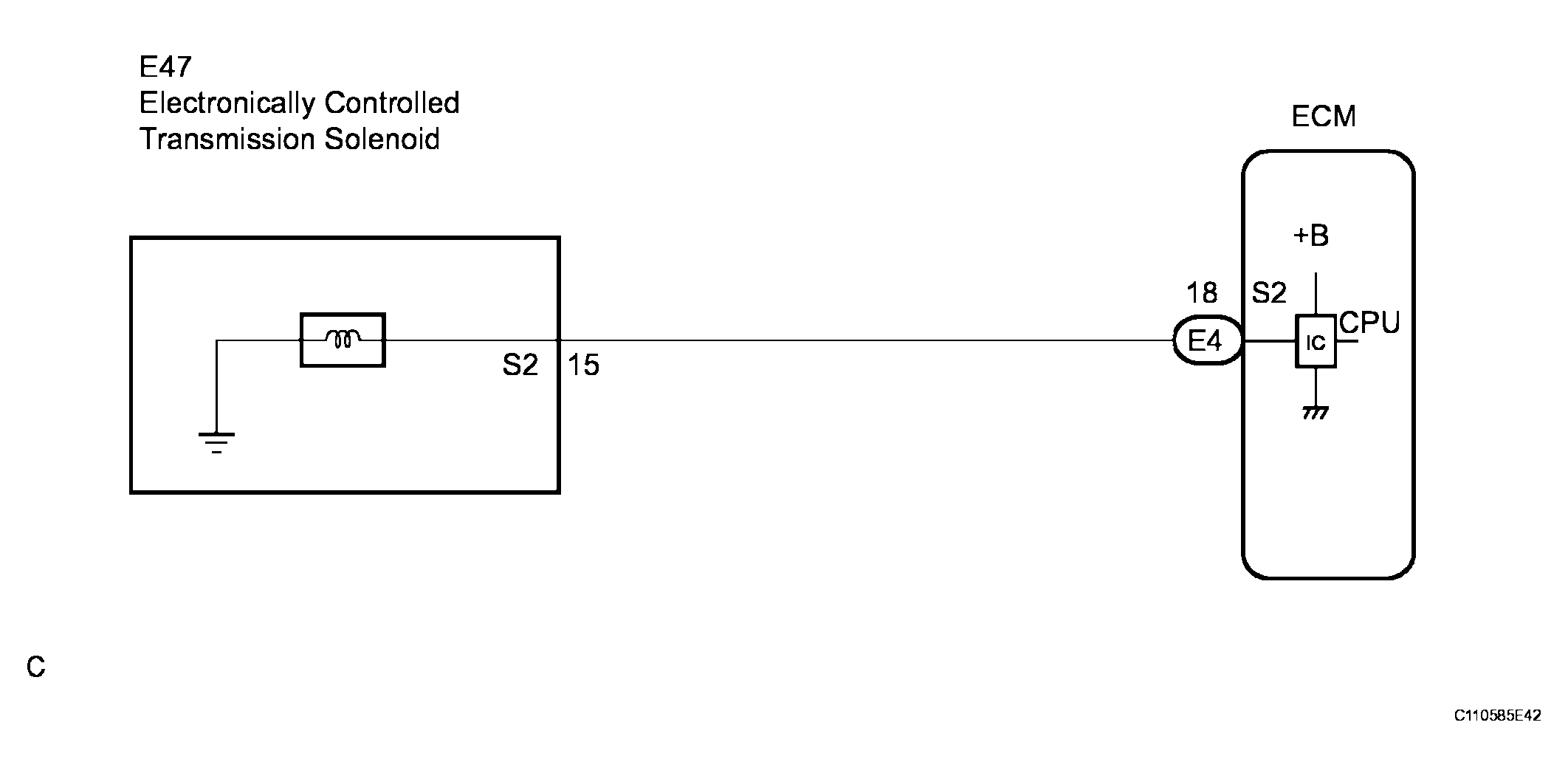

Fig 1: Identifying Shift Solenoid Valve B Control Circuit Wiring Diagram
G04045169Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
