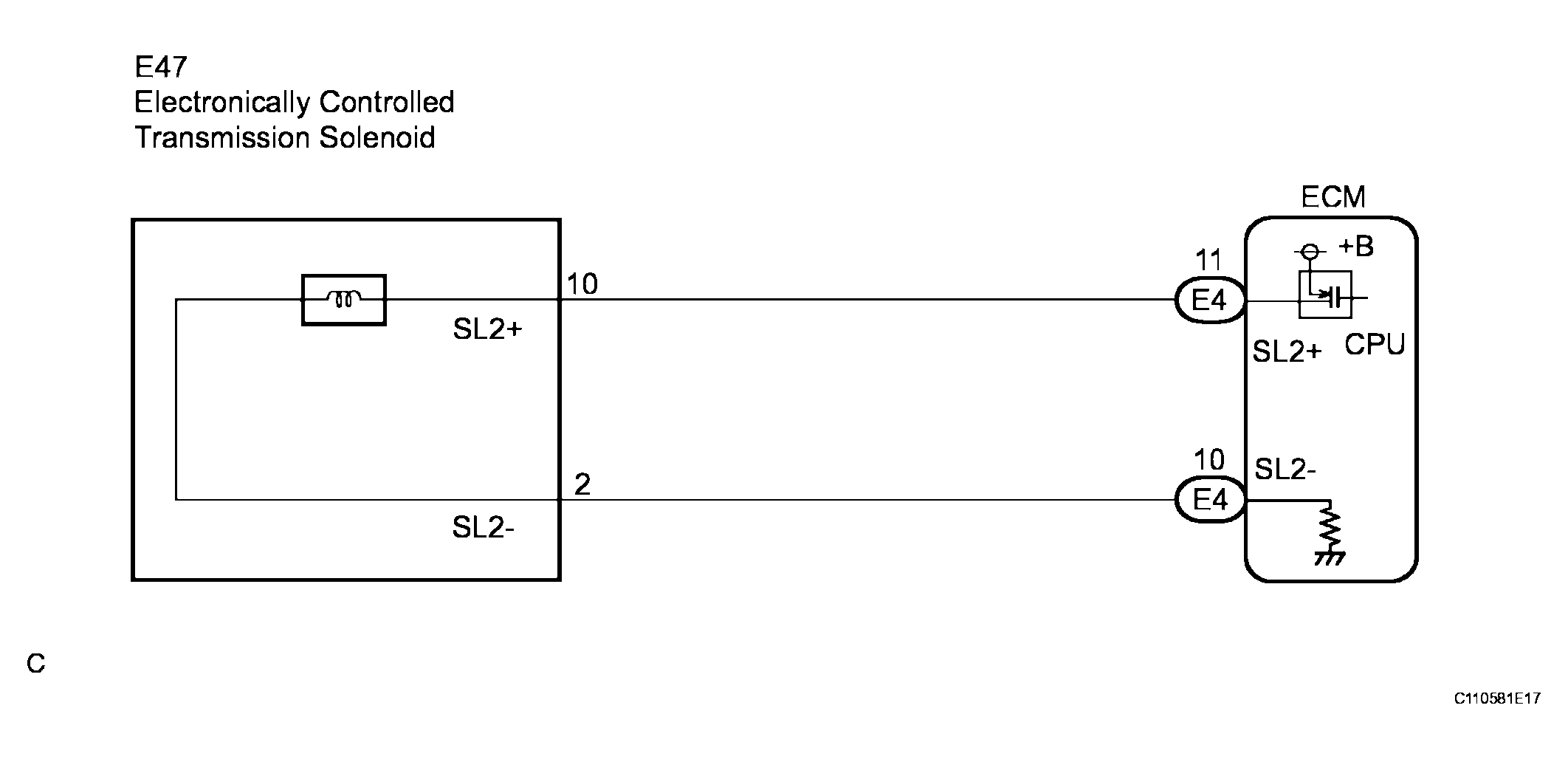

DTC P0778 Pressure Control Solenoid "B" Electrical (Shift Solenoid Valve SL2): Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
HINT:
- The shift solenoid valve SL2 is turned on/off normally when the shift lever is in the D position:
SHIFT SOLENOID VALVE SL2
| ECM command gearshift |
1st |
2nd |
3rd |
4th |
5th |
6th |
| Shift solenoid valve SL2 |
ON |
ON |
ON |
ON |
OFF |
OFF |
