Inspection Procedure

1. Disconnect the transmission wire connector from the transmission.
2. Measure the resistance according to the value(s) in TRANSMISSION WIRE (SL2)  .

   Standard resistance

   TRANSMISSION WIRE (SL2) (RESISTANCE)



   Tester Connection	Specified Condition 20°C (68°F)
   10 (SL2+) - 2 (SL2-)	5.0 to 5.6 ohms

   Fig 1: Inspecting Transmission Wire (SL2)

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. Measure the resistance according to the value(s) in TERMINAL CONDITION SPECIFIED CONDITION TABLE  .

   Standard resistance (Check for short)

   TRANSMISSION WIRE (SL2) (CHECK FOR SHORT)



   Tester Connection	Specified Condition
   10 (SL2+) - Body ground	10 k ohms or higher
   2 (SL2-) - Body ground

   NG: GO TO STEP   3

   OK: Go To Next Step

1. Connect the transmission connector to the transmission.
2. Disconnect the connector from the ECM.
3. Measure the resistance according to the value(s) in TRANSMISSION WIRE - ECM  .

   Standard resistance

   TRANSMISSION WIRE - ECM (RESISTANCE)



   Tester Connection	Specified Condition 20°C (68°F)
   E4-11 (SL2+) - E4-10 (SL2-)	5.0 to 5.6 ohms

   Fig 2: Checking Harness And Connector (Transmission Wire - ECM)

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4. Measure the resistance according to the value(s) in TRANSMISSION WIRE - ECM (CHECK FOR SHORT)  .

   Standard resistance (Check for short)

   TRANSMISSION WIRE - ECM (CHECK FOR SHORT)



   Tester Connection	Specified Condition
   E4-11 (SL2+) - Body ground	10 k ohms or higher
   E4-10 (SL2-) - Body ground

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE ECM

1. Remove the shift solenoid valve SL2.
2. Measure the resistance according to the value(s) in SHIFT SOLENOID SL2  .

   Standard resistance

   SHIFT SOLENOID SL2



   Tester Connection	Specified Condition 20°C (68°F)
   1 - 2	5.0 to 5.6 ohms

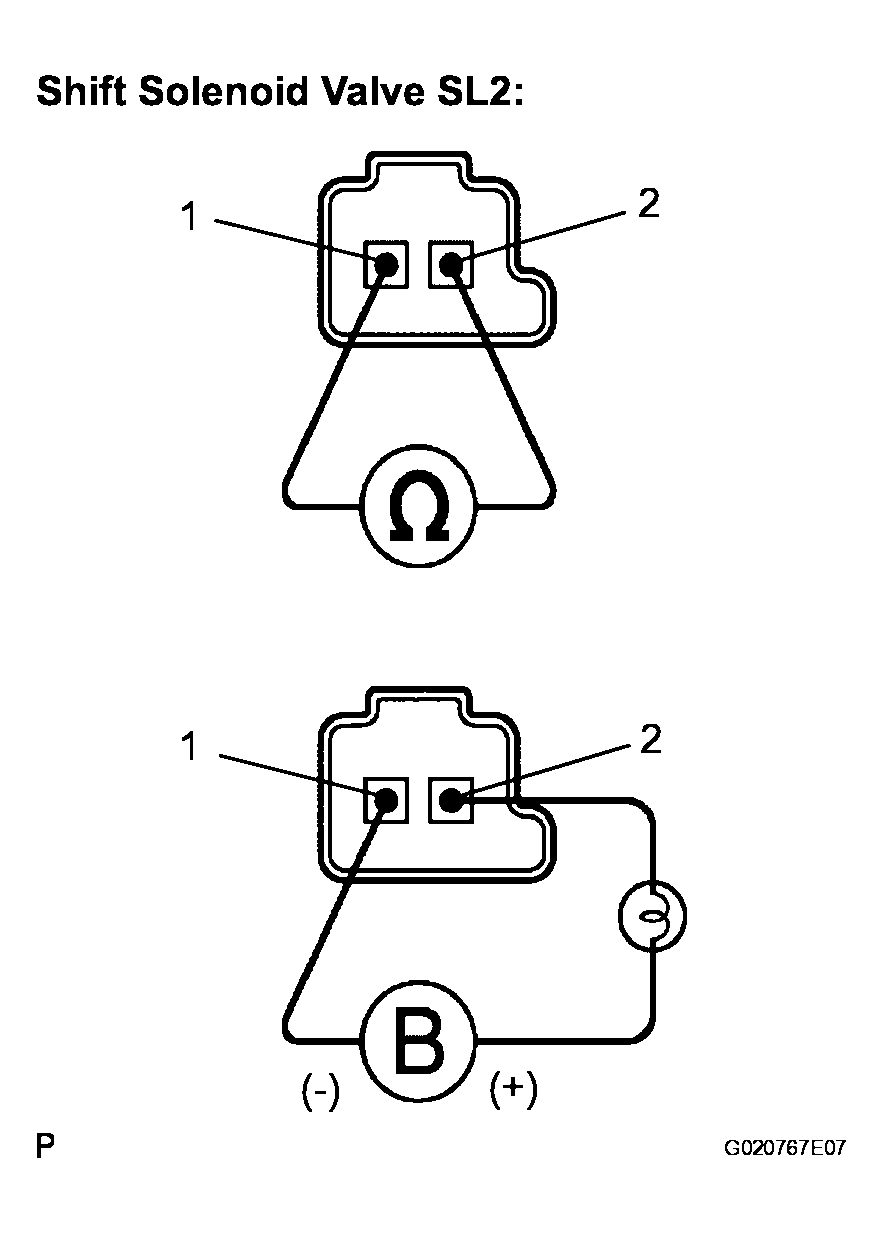

   Fig 3: Inspecting Shift Solenoid SL2

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3. Connect the positive (+) lead with a 21 W bulb to terminal 2 and the negative (-) lead to terminal 1 of the solenoid valve connector, then check the movement of the valve.

OK:

The solenoid makes an operating sound.

NG: REPLACE SHIFT SOLENOID SL2

OK: REPAIR OR REPLACE TRANSMISSION WIRE
