DTC P0710, P0712, P0713: Transmission Fluid Temperature Sensor "A" Circuit; Transmission Fluid Temperature Sensor "A" Circuit Low Input; Transmission Fluid Temperature Sensor "A" Circuit High Input: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

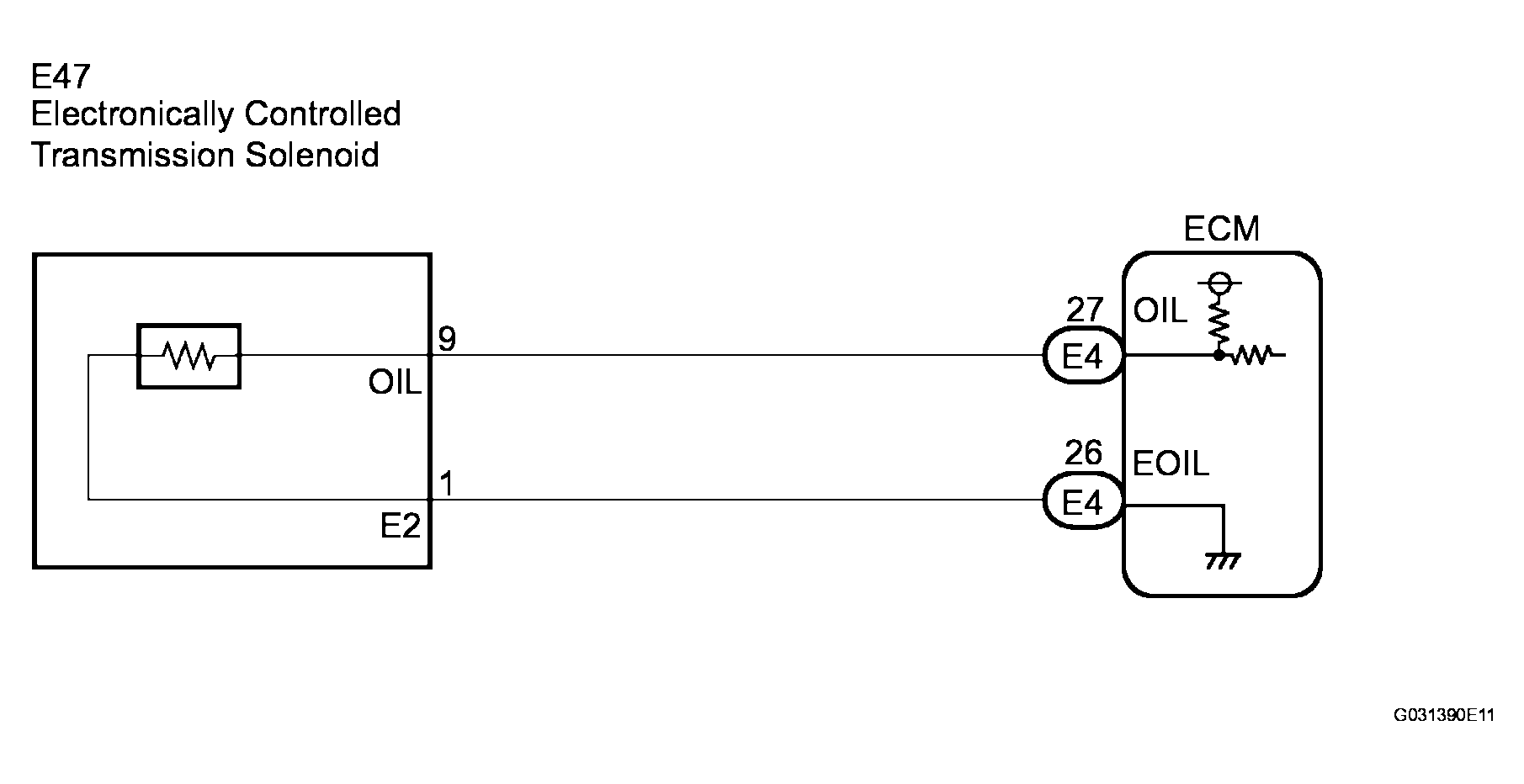

Fig 1: Identifying Transmission Fluid Temperature Sensor A Circuit Wiring Diagram

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
