Vacuum Switching Valve: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  2. REMOVE VACUUM SWITCHING VALVE (EVAP VSV)
    1. Disconnect the connector.
    2. Disconnect the 2 hoses.
    3. Remove the bolt and vacuum switching valve (EVAP VSV) from the intake air connector.

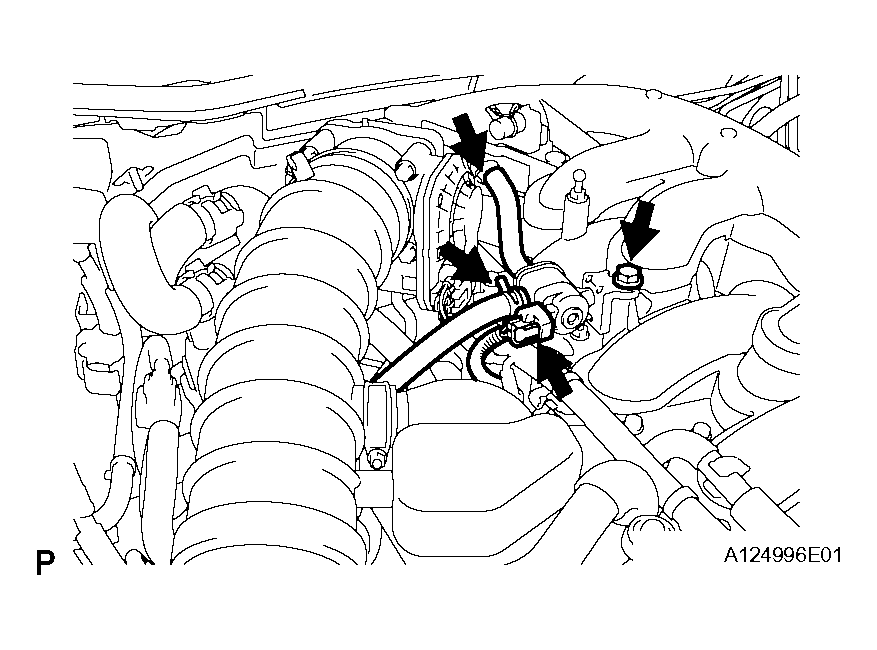

      Fig 1: Identifying Bolt, Vacuum Switching Valve (EVAP VSV) And Intake Air Connector
      G04057712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
