Section 8 (Emission Control (2GR-FSE)): Canister: Installation

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CHARCOAL CANISTER ASSEMBLY
1. Install the charcoal canister assembly, 2 spacer and 4 nuts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  Fig 1: Identifying Charcoal Canister Assembly Spacer And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 quick connectors, hose and connector.

  Fig 2: Identifying Quick Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the wire harness with the 2 clamps.

  Fig 3: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR UNDER COVER
1. Install the floor under cover with the 4 clips and 5 nuts.

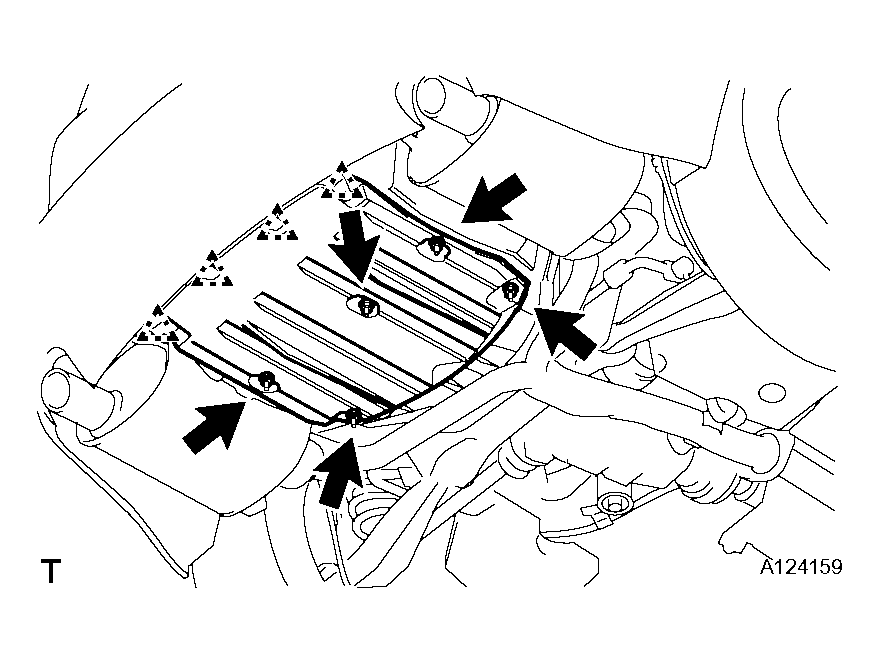

  Fig 4: Identifying Floor Under Cover Clips And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (See INITIALIZATION ).
  NOTE: Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
