AIR FUEL RATIO SENSOR (for Sensor 1): Components

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

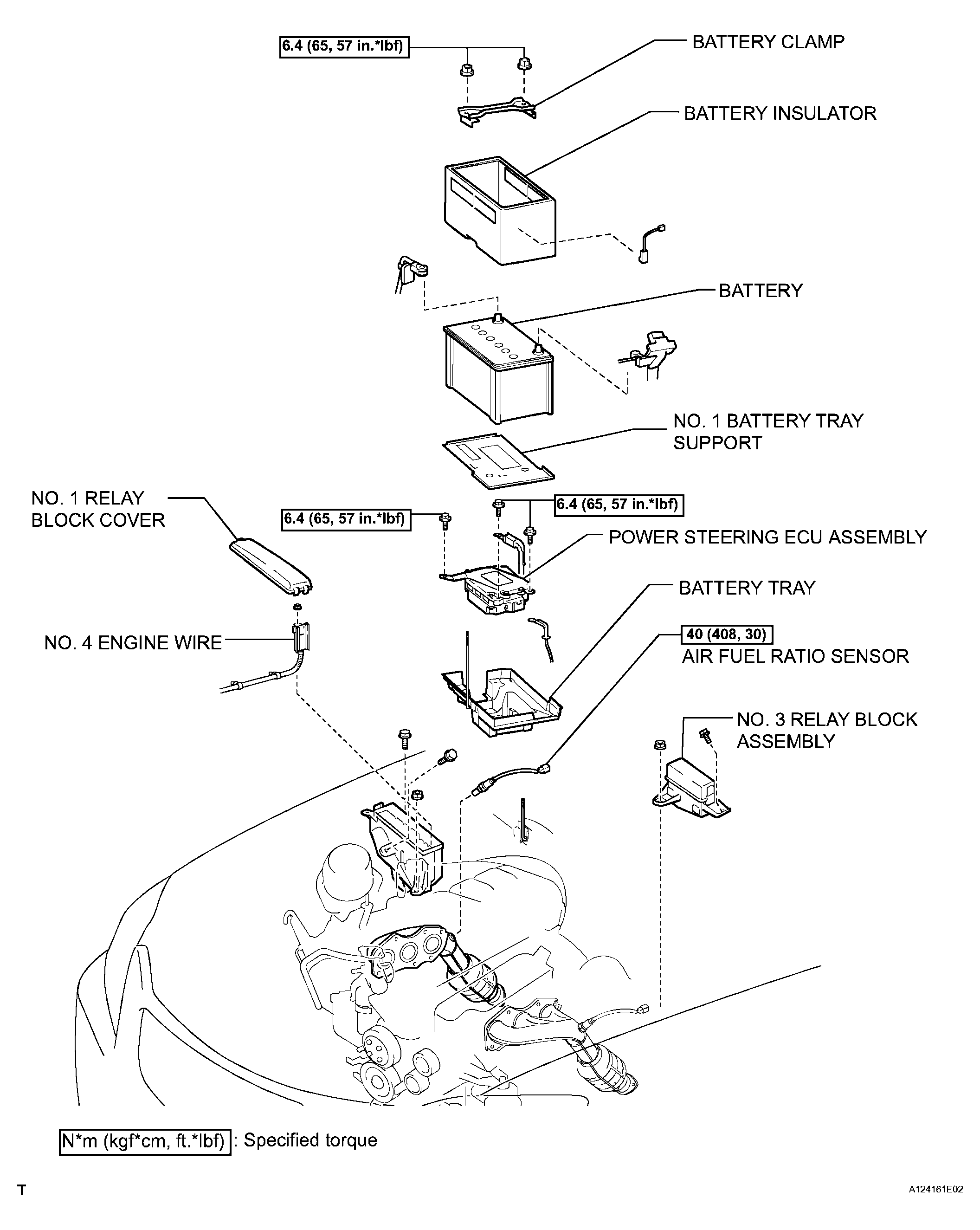

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (2 Of 3)

Fig 3: Air Fuel Ratio Sensor Replacement Components With Torque Specifications (3 Of 3)
