Engine Unit: Inspection

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 VALVE ROCKER ARM SUBASSEMBLY
1. Turn the roller by hand to check that it turns smoothly.

  Fig 1: Checking Roller Rotation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  If the roller does not turn smoothly, replace the valve rocker arm sub-assembly.
INSPECT VALVE LASH ADJUSTER ASSEMBLY
NOTE:
- Keep the lash adjuster free of dirt and foreign objects.
- Only use clean engine oil.
1. Place the lash adjuster into a container filled with engine oil.
2. Insert the SST's tip into the lash adjuster's plunger and use the tip to press down on the check ball inside the plunger.
  SST 09276-75010
3. Squeeze the SST and lash adjuster together to move the plunger up and down 5 to 6 times.
4. Check the movement of the plunger and bleed the air.

  Fig 2: Pressing Check Ball Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  OK: Plunger moves up and down.

  NOTE: When bleeding high-pressure air from the compression chamber, make sure that the tip of the SST is actually pressing the check ball as shown in the illustration. If the check ball is not pressed, air will not bleed.
5. After bleeding the air, remove SST. Then try to quickly and firmly press the plunger with a finger.
  OK: Plunger is very difficult to move.

  If the result is not as specified, replace the lash adjuster.

INSPECT CAMSHAFT

Inspect the camshaft for runout.
1. Place the camshaft on V-blocks.
2. Using a dial indicator, measure the circle runout at the center journal.
  Maximum circle runout: 0.04 mm (0.0016 in.)

  If the circle runout is greater than the maximum, replace the camshaft.

  Fig 3: Measuring Circle Runout At Center Journal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Check the oil clearance after replacing the camshaft.

Using a micrometer, measure the cam lobe height.

Standard cam lobe height

STANDARD CAM LOBE HEIGHT

Item	Specification
Intake camshaft	44.318 to 44.418 mm (1.7448 to 1.7487 in.)
Exhaust camshaft	44.341 to 44.441 mm (1.7457 to 1.7496 in.)

Maximum cam lobe height

MAXIMUM CAM LOBE HEIGHT

Item	Specification
Intake camshaft	44.168 mm (1.7389 in.)
Exhaust camshaft	44.191 mm (1.7398 in.)

Fig 4: Measuring Cam Lobe Height

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a micrometer, measure the journal diameter.

Standard journal diameter

STANDARD JOURNAL DIAMETER

Item	Specification
No. 1 journal	35.946 to 35.960 mm (1.4152 to 1.4157 in.)
Other journal	25.959 to 25. 975 mm (1.0220 to 1.0226 in.)

Fig 5: Measuring Journal Diameter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the journal diameter is not as specified, check the oil clearance.

INSPECT CAMSHAFT TIMING GEAR ASSEMBLY
1. Clamp the camshaft in a vise.
  NOTE: Be careful not to damage the camshaft in the vise.
2. Put the camshaft timing gear and camshaft together by aligning the key groove and straight pin.
3. Lightly press the gear against the camshaft, and turn the gear. Push further at the position where the pin enters the groove.

  Fig 6: Identifying Straight Pin And Key Groove
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Be sure not to turn the camshaft timing gear in the retard direction (the right angle).
4. Check that there is no clearance between the gear's flange and the camshaft.
5. Tighten the flange bolt with the camshaft timing gear fixed.
  Torque: 100 N*m (1,020 kgf*cm, 74 ft.*lbf)

  Fig 7: Tightening Flange Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Check the lock of the camshaft timing gear.
  1. Clamp the camshaft in a vise, and confirm that the camshaft timing gear is locked.
    NOTE: Be careful not to damage the camshaft.
7. Release the lock pin.
  1. Cover the 4 oil paths of the cam journal with vinyl tape as shown in the illustration.
    HINT:

    2 advance side paths are provided in the groove of the camshaft. Plug one of the paths with a rubber piece.
  2. Break through the tape of the advance side path and the retard side path on the opposite side to the hole of the advance side path, as shown in the illustration.

    Fig 8: Covering Oil Paths Of Cam Journal With Vinyl Tape
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

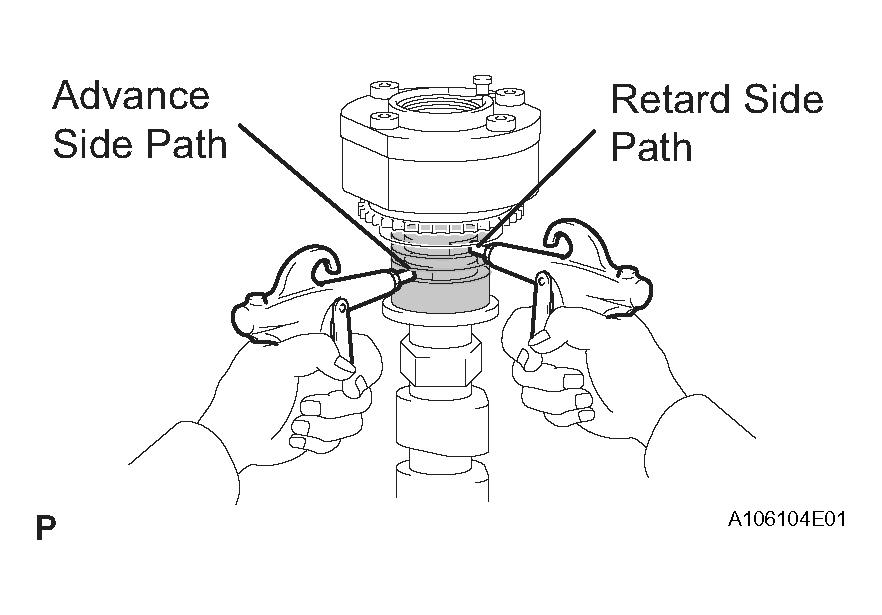

  3. Apply approximately 200 kPa (2.0 kgf/cm² , 28 psi) of air pressure to the two broken paths.

    Fig 9: Applying Pressure To Broken Paths
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    CAUTION: Cover the paths with a piece of cloth when applying pressure to keep oil from splashing.
  4. Check that the camshaft timing gear revolves in the advance direction when reducing the air pressure applied to the retard side path.
    HINT:

    This operation releases the lock pin for the most retarded position.
  5. When the camshaft timing gear reaches the most advanced position, release the air pressure from the retard side path and advance side path, in that order.

    Fig 10: Checking Camshaft Timing Gear Revolves In Advance Direction
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Do not release the air pressure from the advance side path first. The gear may abruptly shift in the retard direction and break the lock pin.
8. Check for smooth rotation.
  1. Turn the camshaft timing gear within its movable range (21°) 2 or 3 times, but do not turn it to the most retarded position. Make sure that the gear turns smoothly.
    NOTE: Do not use air pressure to perform the smooth operation check.
9. Check the lock in the most retarded position.
  1. Confirm that the camshaft timing gear is locked at the most retarded position.
10. Remove the flange bolt and camshaft timing gear.
  NOTE:
  - Do not remove the other 3 bolts.
  - If planning to reuse the gear, be sure to release the straight pin lock before installing the gear.

    Fig 11: Removing Flange Bolt And Camshaft Timing Gear
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
1. Clamp the camshaft in a vise.
  NOTE: Be careful not to damage the camshaft in the vise.
2. Put the camshaft timing exhaust gear and camshaft together by aligning the key groove and straight pin.
3. Lightly press the gear against the camshaft, and turn the gear. Push further at the position where the pin enters the groove.

  Fig 12: Identifying Straight Pin And Key Groove
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Be sure not to turn the camshaft timing exhaust gear in the retard direction (the right angle).
4. Check that there is no clearance between the gear's flange and the camshaft.
5. Tighten the flange bolt with the camshaft timing exhaust gear fixed.
  Torque: 100 N*m (1,020 kgf*cm, 74 ft.*lbf)

  Fig 13: Tightening Flange Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Check the camshaft timing exhaust gear lock.
  1. Make sure that the camshaft timing exhaust gear is locked.
7. Release the lock pin.
  1. Cover the 4 oil paths of the cam journal with vinyl tape as shown in the illustration.
    HINT:

    4 oil paths are provided in the groove. Plug 2 paths with rubber pieces.
  2. Prick a hole in the tape placed on the advance side path. Prick a hole in the tape placed on the retard side path, on the opposite side to that of the advance side path, as shown in the illustration.

    Fig 14: Covering Oil Paths Of Cam Journal With Vinyl Tape
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

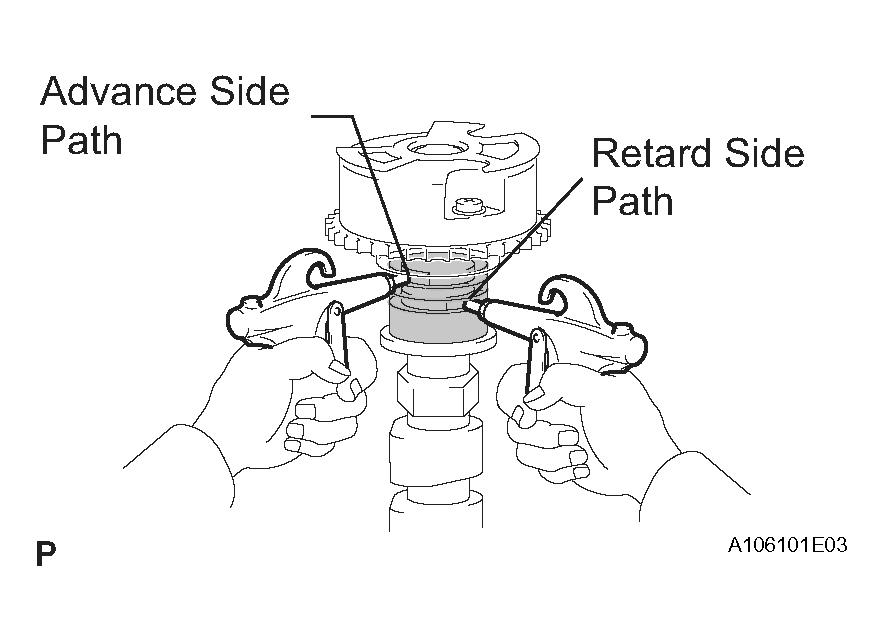

  3. Apply approximately 200 kPa (2.0 kgf/cm² , 28 psi) of air pressure to the 2 broken paths (the advance side path and the retard side path).

    Fig 15: Applying Pressure To Broken Paths
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    CAUTION: Cover the paths with a piece of cloth when applying pressure to keep oil from splashing.

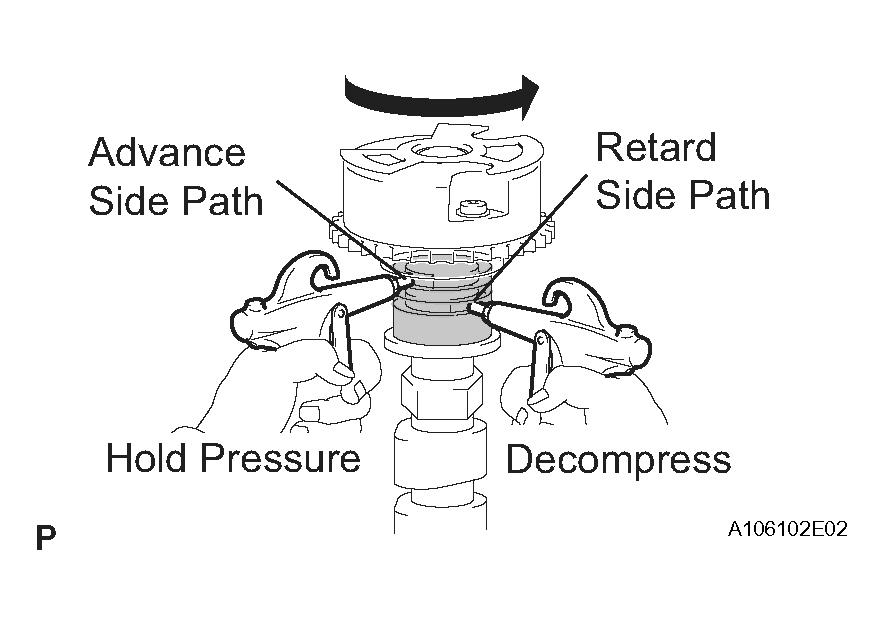

  4. Make sure that the camshaft timing exhaust gear turns in the retard direction when reducing the air pressure applied to the advance side path.

    Fig 16: Checking Camshaft Timing Exhaust Gear Turns In Retard Direction
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    The lock pin is released and the camshaft timing exhaust gear turns in the retard direction.
  5. When the camshaft timing exhaust gear moves to the most retarded position, release the air pressure from the advance side path, and then release the air pressure from the retard side path.
    NOTE: Be sure to release the air pressure from the advance side path first. If the air pressure of the retard side path is released first, the camshaft timing exhaust gear may abruptly shift in the advance direction and break the lock pin or other parts.
8. Check for smooth rotation.
  1. Turn the camshaft timing exhaust gear within its movable range (18.5°) 2 or 3 times, but do not turn it to the most advanced position. Make sure that the gear turns smoothly.
    NOTE: When the air pressure is released from the advance side path and then from the retard side path, the gear automatically returns to the most advanced position due to the advance assist spring operation and locks. Gradually release the air pressure from the retard side path before performing the smooth rotation check.
9. Check the lock at the most advanced position.
  1. Make sure that the camshaft timing exhaust gear is locked at the most advanced position.
10. Remove the flange bolt and camshaft timing exhaust gear.

  Fig 17: Identifying Flange And Do Not Remove Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Be sure not to remove the other 4 bolts.
  - If planning to reuse the gear, be sure to release the straight pin lock before installing the gear.
INSPECT CYLINDER HEAD SET BOLT
1. Using vernier calipers, measure the minimum diameter of the elongated thread at the measuring point.

  Fig 18: Identifying Measuring Point
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard outside diameter: 10.85 to 11.00 mm (0.4272 to 0.4331 in.)

  Minimum outside diameter: 10.70 mm (0.4213 in.)

  Measuring Point: 100 mm (3.94 in.)

  HINT:

  If a visual check reveals no excessively thin areas, check the center of the bolt and find the area that has the lowest diameter.

  If the diameter is less than the minimum, replace the cylinder head bolt.
INSPECT CHAIN SUB-ASSEMBLY
1. Pull the chain with a force of 147 N (15 kgf, 33 lbf) as shown in the illustration.
2. Using vernier calipers, measure the length of 15 links.
  Maximum chain elongation: 136.9 mm (5.390 in.)

  Fig 19: Measuring Length Of 15 Links Using Vernier Caliper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Perform the measurement at 3 random places. Inspect using the average of the measurements.

  If the elongation is greater than the maximum, replace the chain.
INSPECT NO. 2 CHAIN SUB-ASSEMBLY
1. Pull the chain with a force of 147 N (15 kgf, 33 lbf) as shown in the illustration.
2. Using vernier calipers, measure the length of 15 links.
  Maximum chain elongation: 137.6 mm (5.417 in.)

  Fig 20: Measuring Length Of 15 Links Using Vernier Caliper (No.2 Chain Sub-Assembly)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Perform the measurement at 3 random places. Inspect using the average of the measurements.

  If the elongation is greater than the maximum, replace the chain.
INSPECT CRANKSHAFT TIMING SPROCKET
1. Wrap the chain around the sprocket.
2. Using vernier calipers, measure the sprocket diameter with the chain.

  Fig 21: Measuring Sprocket Diameter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Minimum sprocket diameter (with chain): 61.4 mm (2.417 in.)

  HINT:

  The vernier calipers must contact the chain rollers for the measurement.

  If the diameter is less than the minimum, replace the chain and sprocket.
INSPECT IDLE SPROCKET ASSEMBLY
1. Wrap the chain around the sprocket.
2. Using vernier calipers, measure the sprocket diameter with the chain.

  Fig 22: Measuring Idle Sprocket Diameter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Minimum sprocket diameter (with chain): 61.4 mm (2.417 in.)

  HINT:

  The vernier calipers must contact the chain rollers for the measurement.

  If the diameter is less than the minimum, replace the chain and sprocket.
INSPECT IDLE GEAR SHAFT OIL CLEARANCE
1. Using a micrometer, measure the idle gear shaft diameter.

  Fig 23: Measuring Idle Gear Shaft Diameter
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Idle gear shaft diameter: 22.987 to 23.000 mm (0.9050 to 0.9055 in.)
2. Using a caliper gauge, measure the inside diameter of the idle gear.
  Idle gear inside diameter: 23.020 to 23.030 mm (0.9063 to 0.9067 in.)
3. Subtract the idle gear shaft diameter measurement from the idle gear inside diameter measurement.
  Standard oil clearance: 0.020 to 0.043 mm (0.0008 to 0.0017 in.)

  Maximum oil clearance: 0.093 mm (0.0037 in.)

  If the thrust oil clearance is greater than the maximum, replace the idle gear shaft and idle gear.

  Fig 24: Measuring Inside Diameter Of Idle Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT NO. 1 CHAIN TENSIONER ASSEMBLY
1. Move the stopper plate upward to release the lock. Push the plunger and check that it moves smoothly. If necessary, replace the chain tensioner assembly.

  Fig 25: Inspecting No.1 Chain Tensioner Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT NO. 2 CHAIN TENSIONER ASSEMBLY
1. Check that the plunger moves smoothly.
2. Measure the worn depth of the chain tensioner.

  Fig 26: Inspecting No.2 Chain Tensioner Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum depth: 0.9 mm (0.035 in.)

  If the depth is greater than the maximum, replace the chain tensioner assembly.
INSPECT NO. 3 CHAIN TENSIONER ASSEMBLY
1. Check that the plunger moves smoothly.
2. Measure the worn depth of the chain tensioner.

  Fig 27: Inspecting No.3 Chain Tensioner Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum depth: 0.9 mm (0.035 in.)

  If the depth is greater than the maximum, replace the chain tensioner assembly.
INSPECT CHAIN TENSIONER SLIPPER
1. Measure the worn depth of the chain tensioner slipper.

  Fig 28: Identifying Worn Depth Of Chain Tensioner Slipper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum depth: 1.0 mm (0.039 in.)

  If the depth is greater than the maximum, replace the chain tensioner slipper.
INSPECT NO. 1 CHAIN VIBRATION DAMPER
1. Measure the worn depth of the chain vibration damper.

  Fig 29: Identifying Worn Depth Of No.1 Chain Vibration Damper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum depth: 1.0 mm (0.039 in.)

  If the depth is greater than the maximum, replace the chain vibration damper.
INSPECT NO. 2 CHAIN VIBRATION DAMPER
1. Measure the worn depth of the chain vibration damper.

  Fig 30: Identifying Worn Depth Of No.2 Chain Vibration Damper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum depth: 1.0 mm (0.039 in.)

  If the depth is greater than the maximum, replace the chain vibration damper.

INSPECT CYLINDER HEAD ASSEMBLY

Using a precision straight edge and feeler gauge, measure the warpage of the contact surface of the cylinder block and manifolds.

STANDARD WARPAGE

Item	Warpage
Cylinder head lower	0.05 mm (0.0020 in.)
Intake	0.08 mm (0.0031 in.)
Exhaust	0.08 mm (0.0031 in.)

MAXIMUM WARPAGE

Item	Warpage
Cylinder head lower	0.10 mm (0.0039 in.)
Intake	0.10 mm (0.0039 in.)
Exhaust	0.10 mm (0.0039 in.)

Fig 31: Inspecting Cylinder Head Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the warpage is greater than the maximum, replace the cylinder head assembly.

Using a dye penetrant, check the intake ports, exhaust ports and cylinder surface for cracks. If cracked, replace the cylinder head assembly.

Fig 32: Checking Intake Ports, Exhaust Ports And Cylinder Surface For Cracks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT INTAKE VALVE
1. Using a micrometer, measure the diameter of the valve stem.

  Fig 33: Measuring Diameter Of Valve Stem
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Valve stem diameter: 5.470 to 5.485 mm (0.2154 to 0.2159 in.)

  If the valve stem is not as specified, check the oil clearance.
2. Using vernier calipers, measure the valve head margin thickness.

  Fig 34: Identifying Valve Head Margin Thickness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard margin thickness: 1.0 mm (0.03937 in.)

  Minimum margin thickness: 0.5 mm (0.0197 in.)

  If the margin thickness is less than the minimum, replace the intake valve.
3. Using vernier calipers, measure the valve's overall length.

  Fig 35: Identifying Valve's Overall Length
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard overall length: 105.85 mm (4.1673 in.)

  Minimum overall length: 105.35 mm (4.1476 in.)

  If the overall length is less than the minimum, replace the intake valve.
INSPECT EXHAUST VALVE
1. Using a micrometer, measure the diameter of the valve stem.

  Fig 36: Measuring Diameter Of Valve Stem
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Valve stem diameter: 5.465 to 5.480 mm (0.2151 to 0.2157 in.)

  If the valve stem is not as specified, check the oil clearance.
2. Using vernier calipers, measure the valve head margin thickness.

  Fig 37: Identifying Valve Head Margin Thickness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard margin thickness: 1.0 mm (0.0397 in.)

  Minimum margin thickness: 0.5 mm (0.0197 in.)

  If the margin thickness is less than the minimum, replace the exhaust valve.
3. Using vernier calipers, measure the valve's overall length.

  Fig 38: Identifying Valve Overall Length
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard overall length: 110.40 mm (4.3464 in.)

  Minimum overall length: 109.90 mm (4.3268 in.)

  If the overall length is less than the minimum, replace the exhaust valve.
INSPECT INTAKE VALVE SEAT
1. Apply a light coat of Prussian blue (or white lead) to the valve face.
2. Lightly press the valve face against the valve seat.
3. Check the valve face and valve seat by using the following procedure.
  1. If Prussian blue appears around the entire valve face, the valve face is concentric. If not, replace the valve.
  2. If Prussian blue appears around the entire valve seat, the guide and valve face are concentric. If not, resurface the valve seat.
  3. Check that the valve seat contacts in the middle of the valve face with the width between 1.1 and 1.5 mm (0.043 and 0.059 in.).

    Fig 39: Inspecting Intake Valve Seat
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT EXHAUST VALVE SEAT
1. Apply a light coat of Prussian blue (or white lead) to the valve face.
2. Lightly press the valve face against the valve seat.
3. Check the valve face and valve seat by using to the following procedure.
  1. If Prussian blue appears around the entire valve face, the valve face is concentric. If not, replace the valve.
  2. If Prussian blue appears around the entire valve seat, the guide and valve face are concentric. If not, resurface the valve seat.
  3. Check that the valve seat contacts in the middle of the valve face with the width between 1.3 and 1.7 mm (0.051 and 0.067 in.).

    Fig 40: Inspecting Exhaust Valve Seat
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPAIR INTAKE VALVE SEAT
NOTE:
- Repair the seat while checking the seating position.
- Keep the lip free of foreign matter.
1. Using a 45° cutter, resurface the valve seat so that the valve seat width is more than the specification.

  Fig 41: Resurfacing Valve Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using 30° and 60° cutters, correct the valve seat so that the valve contacts the entire circumference of the seat. The contact should be in the center of the valve seat, and the valve seat width should be maintained within the specified range around the entire circumference of the seat.

  Fig 42: Identifying Valve Seat Width
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Width: 1.1 to 1.5 mm (0.043 to 0.059 in.)
3. Hand rub the valve and valve seat with an abrasive compound.
4. Check the valve seating position.
REPAIR EXHAUST VALVE SEAT
NOTE:
- Repair the seat while checking the seating position.
- Keep the lip free of foreign matter.
1. Using a 45° cutter, resurface the valve seat so that the valve seat width is more than the specification.

  Fig 43: Resurfacing Valve Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using 30° and 75° cutters, correct the valve seat so that the valve contacts the entire circumference of the seat. The contact should be in the center of the valve seat, and the valve seat width should be maintained within the specified range around the entire circumference of the seat.

  Fig 44: Correcting Valve Seat Using 30° And 75° Cutters
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Width: 1.3 to 1.7 mm (0.051 to 0.067 in.)
3. Hand rub the valve and valve seat with an abrasive compound.
4. Check the valve seating position.
INSPECT INNER COMPRESSION SPRING
1. Using vernier calipers, measure the free length of the inner compression spring.

  Fig 45: Measuring Free Length Of Inner Compression Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Free length: 51.70 mm (2.0354 in.)

  If the free length is not as specified, replace the spring.
2. Using a steel square, measure the deviation of the inner compression spring.

  Fig 46: Measuring Deviation Of Inner Compression Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum deviation: 1.0 mm (0.039 in.)

  If the deviation is greater than the maximum, replace the spring.

INSPECT VALVE GUIDE BUSH OIL CLEARANCE

Using a caliper gauge, measure the inside diameter of the guide bush.
Bush inside diameter: 5.510 to 5.530 mm (0.2169 to 0.2177 in.)

Subtract the valve stem diameter measurement from the guide bush inside diameter measurement.

Standard clearance

VALVE GUIDE BUSH OIL STANDARD CLEARANCE

Item	Clearance
Intake	0.025 to 0.060 mm (0.0010 to 0.0024 in.)
Exhaust	0.030 to 0.065 mm (0.0012 to 0.0026 in.)

Maximum oil clearance

VALVE GUIDE BUSH OIL MAXIMUM CLEARANCE

Item	Clearance
Intake	0.08 mm (0.0032 in.)
Exhaust	0.10 mm (0.0039 in.)

Fig 47: Measuring Inside Diameter Of Guide Bush

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For intake side:

If the clearance is greater than the maximum, replace the intake valve and intake guide bush.

For exhaust side:

If the clearance is greater than the maximum, replace the exhaust valve and exhaust guide bush.

INSPECT CAMSHAFT THRUST CLEARANCE
1. Inspect the RH bank camshaft thrust clearance.
  1. Install the RH bank camshafts (See REASSEMBLY ).
  2. Using a dial indicator, measure the thrust clearance while moving the camshaft back and forth.

    Fig 48: Measuring Thrust Clearance While Moving Camshaft Back And Forth
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard thrust clearance: 0.08 to 0.13 mm (0.0031 to 0.0051 in.)

    Maximum thrust clearance: 0.15 mm (0.006 in.)

    If the thrust clearance is greater than the maximum, replace the cylinder head. If the thrust surface is damaged, replace the camshaft.
2. Inspect the LH bank camshaft thrust clearance.
  1. Install the LH bank camshafts (See REASSEMBLY ).
  2. Using a dial indicator, measure the thrust clearance while moving the camshaft back and forth.
    Standard thrust clearance: 0.08 to 0.13 mm (0.0031 to 0.0051 in.)

    Maximum thrust clearance: 0.15 mm (0.006 in.)

    If the thrust clearance is greater than the maximum, replace the cylinder head. If the thrust surface is damaged, replace the camshaft.

INSPECT CAMSHAFT OIL CLEARANCE

Clean the bearing caps, camshaft housing and camshaft journals.
Place the camshafts on the camshaft housing.
Lay a strip of Plastigage across each of the camshaft journals.
Install the bearing caps (See REASSEMBLY ).

Fig 49: Checking Camshaft Oil Clearance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Do not turn the camshaft.
Remove the bearing caps (See DISASSEMBLY ).

Measure the Plastigage at its widest point.

Standard oil clearance

CAMSHAFT OIL CLEARANCE (STANDARD)

Item	Oil Clearance
No. 1 journal	0.040 to 0.079 mm (0.0016 to 0.0031 in.)
Other journal	0.025 to 0.062 mm (0.00098 to 0.0024 in.)

Maximum oil clearance

CAMSHAFT OIL CLEARANCE (MAXIMUM)

Item	Oil Clearance
No. 1 journal	0.10 mm (0.0039 in.)
Other journal	0.09 mm (0.0035 in.)

If the oil clearance is greater than the maximum, replace the camshaft. If necessary, replace the camshaft housing.

Clean the bearing caps, camshaft housing and camshaft journals.
Place the camshafts on the camshaft housing.

Fig 50: Measuring Plastigage At Its Widest Point
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Lay a strip of Plastigage across each of the camshaft journals.
Install the bearing caps (See REASSEMBLY ).
NOTE: Do not turn the camshaft.
Remove the bearing caps (See DISASSEMBLY ).

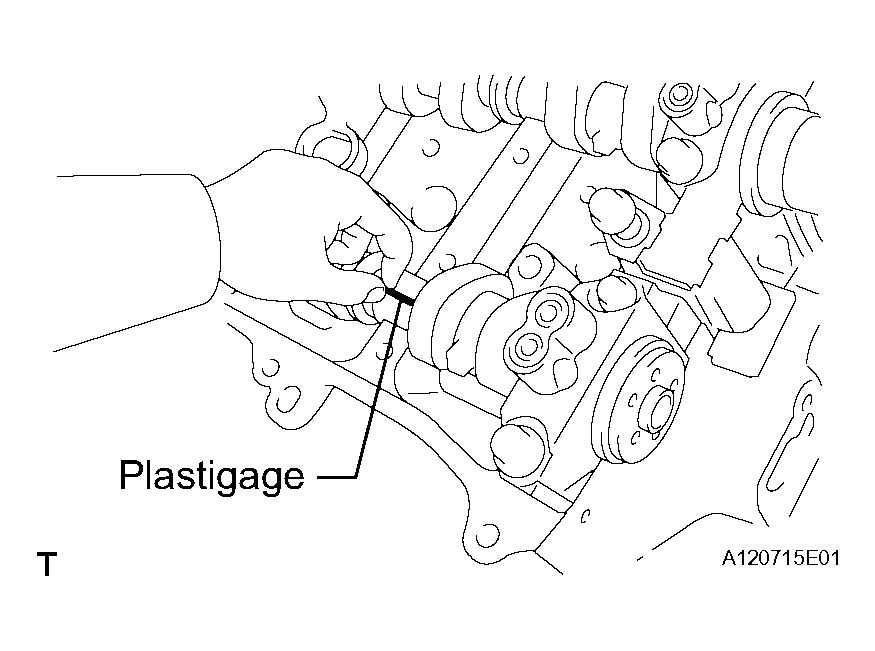

Fig 51: Laying Strip Of Plastigage Across Each Of Camshaft Journals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the Plastigage at its widest point.

Standard oil clearance

STANDARD OIL CLEARANCE

Item	Oil Clearance
No. 1 journal	0.040 to 0.079 mm (0.0016 to 0.0031 in.)
Other journal	0.025 to 0.062 mm (0.00098 to 0.0024 in.)

Maximum oil clearance

MAXIMUM OIL CLEARANCE

Item	Oil Clearance
No. 1 journal	0.10 mm (0.0039 in.)
Other journal	0.09 mm (0.0035 in.)

Fig 52: Measuring Plastigage At Its Widest Point

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the oil clearance is greater than the maximum, replace the camshaft. If necessary, replace the camshaft housing.

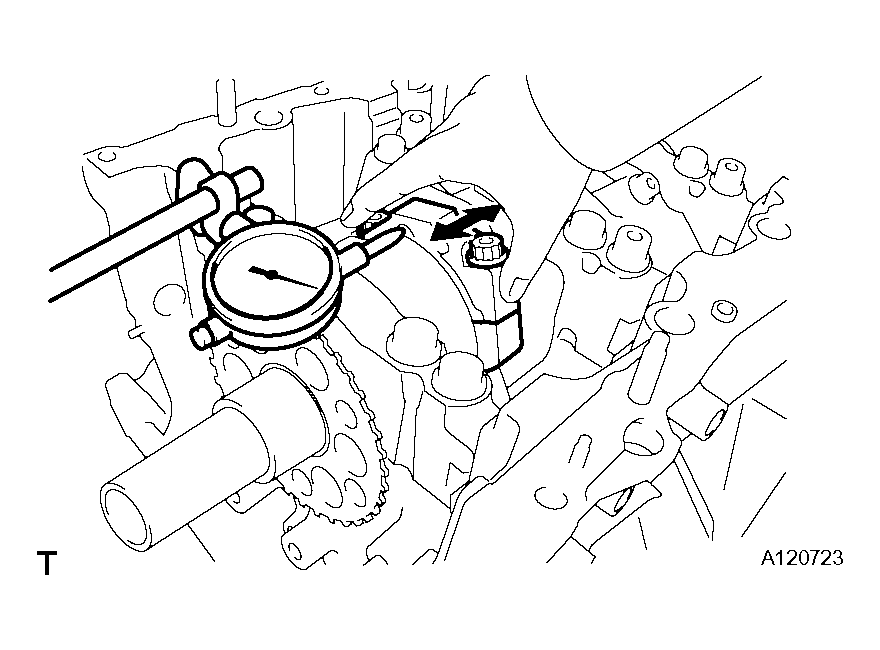

INSPECT CONNECTING ROD THRUST CLEARANCE
1. Install the connecting rod cap (See REASSEMBLY ).
2. Using a dial indicator, measure the thrust clearance while moving the connecting rod back and forth.
  Standard thrust clearance: 0.15 to 0.40 mm (0.0059 to 0.0157 in.)

  Maximum thrust clearance: 0.50 mm (0.020 in.)

  If the thrust clearance is greater than the maximum, replace the connecting rod assemblies as necessary. If necessary, replace the crankshaft.

  Fig 53: Measuring Thrust Clearance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT CONNECTING ROD OIL CLEARANCE

Clean the crank pin and bearing.
Check the crank pin and bearing for pitting and scratches.
Lay a strip of Plastigage on the crank pin.

Fig 54: Laying Strip Of Plastigage On Crank Pin
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Check that the front mark of the connecting rod cap is facing forward.
Install the connecting rod cap (See REASSEMBLY ).
NOTE: Do not turn the crankshaft.
Remove the 2 bolts and connecting rod cap (See DISASSEMBLY ).

Fig 55: Checking Front Mark Of Connecting Rod Cap Facing Forward
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the Plastigage at its widest point.

Standard oil clearance: 0.045 to 0.067 mm (0.0018 to 0.0026 in.)

Maximum oil clearance: 0.070 mm (0.0028 in.)

If the oil clearance is greater than the maximum, replace the connecting rod bearings. If necessary, inspect the crankshaft.

HINT:

If replacing a bearing, replace it with one that has the same number as its respective connecting rod cap. Each bearing's standard thickness is indicated by a 1, 2, 3 and 4 mark on its surface.

Connecting rod diameter

CONNECTING ROD DIAMETER

Mark	Diameter
1	56.000 to 56.006 mm (2.2047 to 2.2050 in.)
2	56.007 to 56.012 mm (2.2050 to 2.2052 in.)
3	56.013 to 56.018 mm (2.2052 to 2.2054 in.)
4	56.019 to 56.024 mm (2.2055 to 2.2057 in.)

Connecting rod bearing center wall thickness

CONNECTING ROD BEARING CENTER WALL THICKNESS

Mark	Thickness
1	1.481 to 1.484 mm (0.0583 to 0.0584 in.)
2	1.484 to 1.487 mm (0.0584 to 0.0585 in.)
3	1.487 to 1.490 mm (0.0585 to 0.0587 in.)
4	1.490 to 1.493 mm (0.0587 to 0.0588 in.)

Fig 56: Measuring Plastigage At Its Widest Point

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Crankshaft pin diameter: 52.992 to 53.000 mm (2.0863 to 2.0866 in.)

NOTE: Completely remove the Plastigage after the measurement.

INSPECT CRANKSHAFT THRUST CLEARANCE
1. Install the main bearing cap (See REASSEMBLY ).
2. Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a screwdriver.

  Fig 57: Measuring Crankshaft Thrust Clearance
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard thrust clearance: 0.04 to 0.24 mm (0.0016 to 0.0094 in.)

  Maximum thrust clearance: 0.30 mm (0.0118 in.)

  If the thrust clearance is greater than the maximum, replace the thrust washers as a set. If necessary, replace the crankshaft.

  Thrust washer thickness: 2.43 to 2.48 mm (0.0957 to 0.0976 in.)
INSPECT CYLINDER BLOCK FOR WARPAGE
1. Using a precision straight edge and feeler gauge, measure the warpage of the contact surface of the cylinder head gasket.

  Fig 58: Measuring Warpage Of Contact Surface Of Cylinder Head
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum warpage: 0.07 mm (0.0028 in.)

  If the warpage is greater than the maximum, replace the cylinder block.
INSPECT CYLINDER BORE
1. Visually check the cylinder for vertical scratches. If deep scratches are present, rebore all the 6 cylinders. If necessary, replace the cylinder block.

  Fig 59: Checking Cylinder For Vertical Scratches
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a cylinder gauge, measure the cylinder bore diameter at positions A and B in the thrust and axial directions.

  Fig 60: Measuring Cylinder Bore Diameter At Positions A And B In Thrust And Axial Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard diameter: 94.000 to 94.012 mm (3.7008 to 3.7013 in.)

  Maximum diameter: 94.200 mm (3.7087 in.)

  If the average diameter of 4 positions is greater than the maximum, replace the cylinder block.
INSPECT PISTON SUB-ASSEMBLY WITH PIN
1. Using a micrometer, measure the piston diameter at right angles to the piston center line where the distance from the piston end is as specified.
  Distance: 9.1 mm (0.36 in.)

  Standard diameter: 93.960 to 93.980 mm (3.6992 to 3.7000 in.)

  Maximum diameter: 93.830 mm (3.6941 in.)

  Fig 61: Measuring Piston Diameter At Right Angles
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT PISTON OIL CLEARANCE
1. Measure the cylinder bore diameter in the thrust directions.
2. Subtract the piston diameter measurement from the cylinder bore diameter measurement.
  Standard oil clearance: 0.020 to 0.052 mm (0.0008 to 0.0020 in.)

  Maximum oil clearance: 0.370 mm (0.0146 in.)

  If the oil clearance is greater than the maximum, replace all the pistons. If necessary, replace the cylinder block.

INSPECT RING GROOVE CLEARANCE

Using a feeler gauge, measure the clearance between a new piston ring and the wall of the ring groove.

Ring groove clearance

RING GROOVE CLEARANCE SPECIFICATIONS

Item	Clearance
No. 1	0.020 to 0.070 mm (0.0008 to 0.0028 in.)
No. 2	0.020 to 0.060 mm (0.0008 to 0.0024 in.)
Oil	0.020 to 0.070 mm (0.0008 to 0.0028 in.)

Fig 62: Measuring Clearance Between Piston Ring And Wall Of Ring Groove

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the clearance is not as specified, replace the piston.

INSPECT PISTON RING END GAP

Insert the piston ring into the cylinder bore.
Using a piston, push the piston ring a little beyond the bottom of the ring travel, 110 mm (4.33 in.) from the top of the cylinder block.

Fig 63: Inserting Piston Ring Into Cylinder Bore
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a feeler gauge, measure the end gap.

Standard end gap

STANDARD END GAP SPECIFICATIONS

Item	End Gap
No. 1	0.23 to 0.33 mm (0.0091 to 0.0130 in.)
No. 2	0.35 to 0.45 mm (0.0138 to 0.0177 in.)
Oil	0.10 to 0.40 mm (0.0039 to 0.0157 in.)

Maximum end gap

MAXIMUM END GAP SPECIFICATIONS

Item	End Gap
No. 1	0.40 mm (0.0157 in.)
No. 2	0.50 mm (0.0197 in.)
Oil	0.45 mm (0.0177 in.)

Fig 64: Measuring Piston Ring End Gap

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the end gap is greater than the maximum, replace the piston ring. If the end gap is greater than the maximum even with a new piston ring, rebore all the 6 cylinders or replace the cylinder block.

INSPECT PISTON PIN OIL CLEARANCE

Using a caliper gauge, measure the inside diameter of the piston pin hole.

Piston pin hole inside diameter

PISTON PIN HOLE INSIDE DIAMETER

Mark	Diameter
A	21.998 to 22.001 mm (0.8661 to 0.8662 in.)
B	22.001 to 22.004 mm (0.8662 to 0.8663 in.)
C	22.004 to 22.007 mm (0.8663 to 0.8664 in.)

Fig 65: Measuring Inside Diameter Of Piston Pin Hole

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a micrometer, measure the piston pin diameter.

Piston pin diameter

PISTON PIN DIAMETER SPECIFICATIONS

Mark	Diameter
A	21.997 to 22.000 mm (0.8660 to 0.8661 in.)
B	22.000 to 22.003 mm (0.8661 to 0.8663 in.)
C	22.003 to 22.006 mm (0.8663 to 0.8664 in.)

Fig 66: Measuring Piston Pin Diameter

Subtract the piston pin diameter measurement from the piston pin hole diameter measurement.
Standard oil clearance: -0.002 to 0.004 mm (-0.00007 to 0.0001 in.)

Maximum oil clearance: 0.015 mm (0.0006 in.)

If the oil clearance is greater than the maximum, replace the piston and piston pin as a set.

Using a caliper gauge, measure the inside diameter of the connecting rod bushing.

Bushing inside diameter

BUSHING INSIDE DIAMETER SPECIFICATIONS

Mark	Diameter
A	22.005 to 22.008 mm (0.8663 to 0.8665 in.)
B	22.008 to 22.011 mm (0.8665 to 0.8666 in.)
C	22.011 to 22.014 mm (0.8666 to 0.8667 in.)

Fig 67: Measuring Inside Diameter Of Connecting Rod Bushing

Subtract the piston pin diameter measurement from the bushing inside diameter measurement.

Fig 68: Identifying Front Mark
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard oil clearance: 0.005 to 0.011 mm (0.0002 to 0.0004 in.)

Maximum oil clearance: 0.030 mm (0.0012 in.)

If the oil clearance is greater than the maximum, replace the bushing. If necessary, replace the connecting rod and piston pin as a set.

INSPECT CONNECTING ROD
1. Using a rod aligner and feeler gauge, check the connecting rod alignment.
  1. Check for out-of-alignment.

    Fig 69: Checking Connecting Rod Alignment
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Maximum out-of-alignment: 0.05 mm (0.0020 in.) per 100 mm (3.94 in.)

    If the out-of-alignment is greater than the maximum, replace the connecting rod assembly.
  2. Check for twist.

    Fig 70: Checking Connecting Rod Twist
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Maximum twist: 0.15 mm (0.0059 in.) per 100 mm (3.94 in.)

    If the twist is greater than the maximum, replace the connecting rod assembly.
INSPECT CONNECTING ROD BOLT
1. Using vernier calipers, measure the tension portion diameter of the bolt.

  Fig 71: Identifying Tension Portion Diameter Of Connecting Rod Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard diameter: 38.5 to 8.6 mm (0.335 to 0.339 in.)

  Minimum diameter: 8.3 mm (0.327 in.)

  If the diameter is less than the minimum, replace the bolt.
INSPECT CRANKSHAFT
1. Inspect for circle runout.
  1. Clean the crank journal.
  2. Place the crankshaft on the V-blocks.
  3. Using a dial indicator, measure the circle runout at the center journal.

    Fig 72: Measuring Circle Runout At Center Journal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Maximum circle runout: 0.06 mm (0.0024 in.)

    If the circle runout is greater than the maximum, replace the crankshaft.
2. Inspect the main journals.
  1. Using a micrometer, measure the diameter of each main journal.
    Standard journal diameter: 60.988 to 61.000 mm (2.4011 to 2.4016 in.)

    If the diameter is not as specified, check the oil clearance. If necessary, replace the crankshaft.
  2. Check each main journal for taper and out-of round as shown in the illustration.

    Fig 73: Checking Main Journal For Taper And Out-Of Round
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Maximum taper and out-of-round: 0.02 mm (0.0008 in.)

    If the taper and out-of-round is greater than the maximum, replace the crankshaft.
3. Inspect the crank pin.
  1. Using a micrometer, measure the diameter of each crank pin.
    Crankshaft pin diameter: 52.992 to 53.000 mm (2.0863 to 2.0866 in.)

    If the diameter is not as specified, check the oil clearance. If necessary, replace the crankshaft.
  2. Check each crank pin for taper and out-of round as shown in the illustration.

    Fig 74: Checking Crank Pin For Taper And Out-Of Round
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Maximum taper and out-of-round: 0.02 mm (0.0008 in.)

    If the taper and out-of-round is greater than the maximum, replace the crankshaft.

INSPECT CRANKSHAFT OIL CLEARANCE

Check the crank journal and bearing for pitting and scratches.
Install the crankshaft bearing (See REASSEMBLY ).
Place the crankshaft on the cylinder block.
Lay a strip of Plastigage across each journal.
Examine the front marks and numbers and install the bearing caps on the cylinder block.
HINT:

A number is marked on each main bearing cap to indicate the installation position.
Install the main bearing cap (See REASSEMBLY ).

Fig 75: Laying Strip Of Plastigage Across Each Journal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Do not turn the crankshaft.
Remove the main bearing caps (See DISASSEMBLY ).

Measure the Plastigage at its widest point.

Standard oil clearance

STANDARD OIL CLEARANCE

Item	Clearance
No. 1, No. 4 Journal	0.026 to 0.047 mm (0.0010 to 0.0019 in.)
No. 2, No. 3 Journal	0.032 to 0.053 mm (0.0013 to 0.0021 in.)

Fig 76: Measuring Plastigage At Its Widest Point

Maximum oil clearance

MAXIMUM OIL CLEARANCE

Item	Clearance
No. 1, No. 4 Journal	0.050 mm (0.0020 in.)
No. 2, No. 3 Journal	0.060 mm (0.0024 in.)

If the oil clearance is greater than the maximum, replace the bearings. If necessary, replace the crankshaft.

NOTE: Completely remove the Plastigage after the measurement.

If replacing a bearing, replace it with one having the same number. If the number of the bearing cannot be determined, select the correct bearing by adding together the numbers imprinted on the cylinder block and crankshaft, then refer to the table below for the appropriate bearing number. There are 5 size of standard bearings, marked "1", "2", "3", "4" and "5" accordingly.

Journal bearings:

JOURNAL BEARINGS REFERENCE

Cylinder block + Crankshaft	0 - 5	6 - 11	12 - 17	18 - 23	24 - 28
Use Bearing	"1"	"2"	"3"	"4"	"5"

HINT:

EXAMPLE: Cylinder block "11" + Crankshaft "06" = Total number 17 (Use bearing "3")

Crankshaft main journal diameter

CRANKSHAFT MAIN JOURNAL DIAMETER SPECIFICATIONS

Mark	Diameter
"00"	60.999 to 61.000 mm (2.4015 to 2.4016 in.)
"01"	60.998 to 60.999 mm (2.4015 to 2.4015 in.)
"02"	60.997 to 60.998 mm (2.4015 to 2.4015 in.)
"03"	60.996 to 60.997 mm (2.4014 to 2.4015 in.)
"04"	60.995 to 60.996 mm (2.4014 to 2.4014 in.)
"05"	60.994 to 60.995 mm (2.4013 to 2.4014 in.)
"06"	60.993 to 60.994 mm (2.4013 to 2.4013 in.)
"07"	60.992 to 60.993 mm (2.4013 to 2.4013 in.)
"08"	60.991 to 60.992 mm (2.4012 to 2.4013 in.)
"09"	60.990 to 60.991 mm (2.4012 to 2.4012 in.)
"10"	60.989 to 60.990 mm (2.4011 to 2.4012 in.)
"11"	60.988 to 60.989 mm (2.4011 to 2.4011 in.)

Standard upper bearing center wall thickness (No. 1 and No. 4 journal)

STANDARD UPPER BEARING CENTER WALL THICKNESS (NO 1 AND NO 4 JOURNAL)

Mark	Thickness
"1"	2.500 to 2.503 mm (0.0984 to 0.0985 in.)
"2"	2.503 to 2.506 mm (0.0985 to 0.0987 in.)
"3"	2.506 to 2.509 mm (0.0987 to 0.0988 in.)
"4"	2.509 to 2.512 mm (0.0988 to 0.0989 in.)
"5"	2.512 to 2.515 mm (0.0989 to 0.0990 in.)

Fig 77: Identifying Standard Bearing Marks

Standard lower bearing center wall thickness (No. 1 and No. 4 journal)

STANDARD LOWER BEARING CENTER WALL THICKNESS (NO 1 AND NO 4 JOURNAL)

Mark	Thickness
"1"	2.478 to 2.481 mm (0.0976 to 0.0977 in.)
"2"	2.481 to 2.484 mm (0.0977 to 0.0978 in.)
"3"	2.484 to 2.487 mm (0.0978 to 0.0979 in.)
"4"	2.487 to 2.490 mm (0.0979 to 0.0980 in.)
"5"	2.490 to 2.493 mm (0.0980 to 0.0981 in.)

Standard upper bearing center wall thickness (No. 2 and No. 3 journal)

STANDARD UPPER BEARING CENTER WALL THICKNESS (NO 2 AND NO 3 JOURNAL)

Mark	Thickness
"1"	2.475 to 2.478 mm (0.0974 to 0.0976 in.)
"2"	2.478 to 2.481 mm (0.0976 to 0.0977 in.)
"3"	2.481 to 2.484 mm (0.0977 to 0.0978 in.)
"4"	2.484 to 2.487 mm (0.0978 to 0.0979 in.)
"5"	2.487 to 2.490 mm (0.0979 to 0.0980 in.)

Standard lower bearing center wall thickness (No. 2 and No. 3 journal)

STANDARD LOWER BEARING CENTER WALL THICKNESS (NO 2 AND NO 3 JOURNAL)

Mark	Thickness
"1"	2.497 to 2.500 mm (0.0983 to 0.0984 in.)
"2"	2.500 to 2.503 mm (0.0984 to 0.0985 in.)
"3"	2.503 to 2.506 mm (0.0985 to 0.0987 in.)
"4"	2.506 to 2.509 mm (0.0987 to 0.0988 in.)
"5"	2.509 to 2.512 mm (0.0988 to 0.0989 in.)

INSPECT CRANKSHAFT BEARING CAP SET BOLT
1. Using vernier calipers, measure the minimum diameter of the compressed thread at the measuring point.

  Fig 78: Identifying Measuring Point
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard diameter: 10.8 to 11.0 mm (0.4252 to 0.4331 in.)

  Minimum diameter: 10.7 mm (0.4213 in.)

  If the diameter is less than the minimum, replace the bolt.
