Engine Rear Oil Seal: Removal

WARNING: This page is about a different car, the 2006 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AUTOMATIC TRANSMISSION ASSEMBLY
HINT:

See REMOVAL .
REMOVE DRIVE PLATE AND RING GEAR SUBASSEMBLY (See REMOVAL )
REMOVE ENGINE REAR OIL SEAL
1. Using a knife, cut through the oil seal lip.
2. Using a screwdriver with its tip taped, pry out the oil seal.

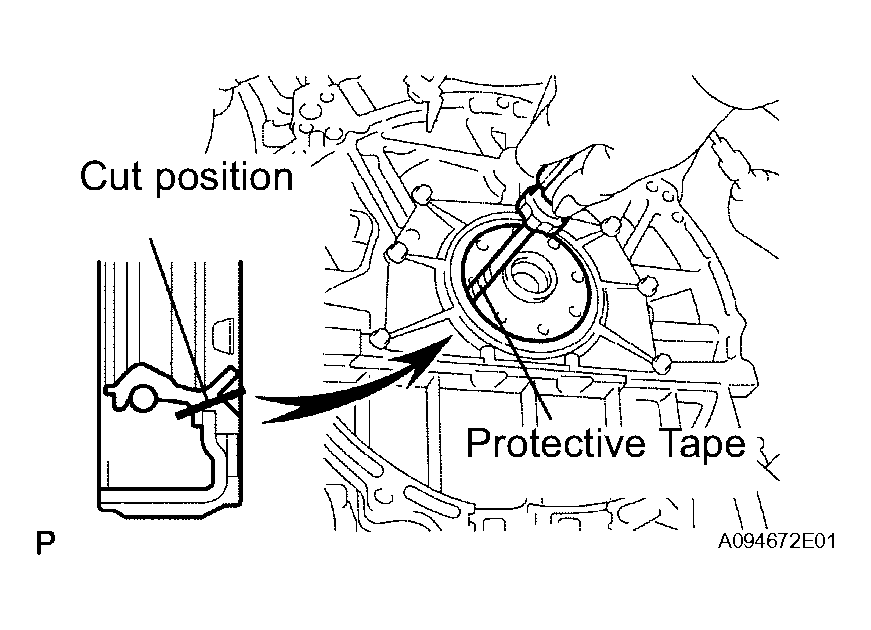

  Fig 1: Prying Out Oil Seal Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.

  NOTE: After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
